TORP - TC500 2.0 Controller Kit For Talaria MX3 / MX4 / Sting R
TORP - TC500 2.0 Controller Kit For Talaria MX3 / MX4 / Sting R
SKU:TC5002.0-TALARIA-MX3-BK-1
Couldn't load pickup availability
COMING SOON
Pricing will be updated when available
Description

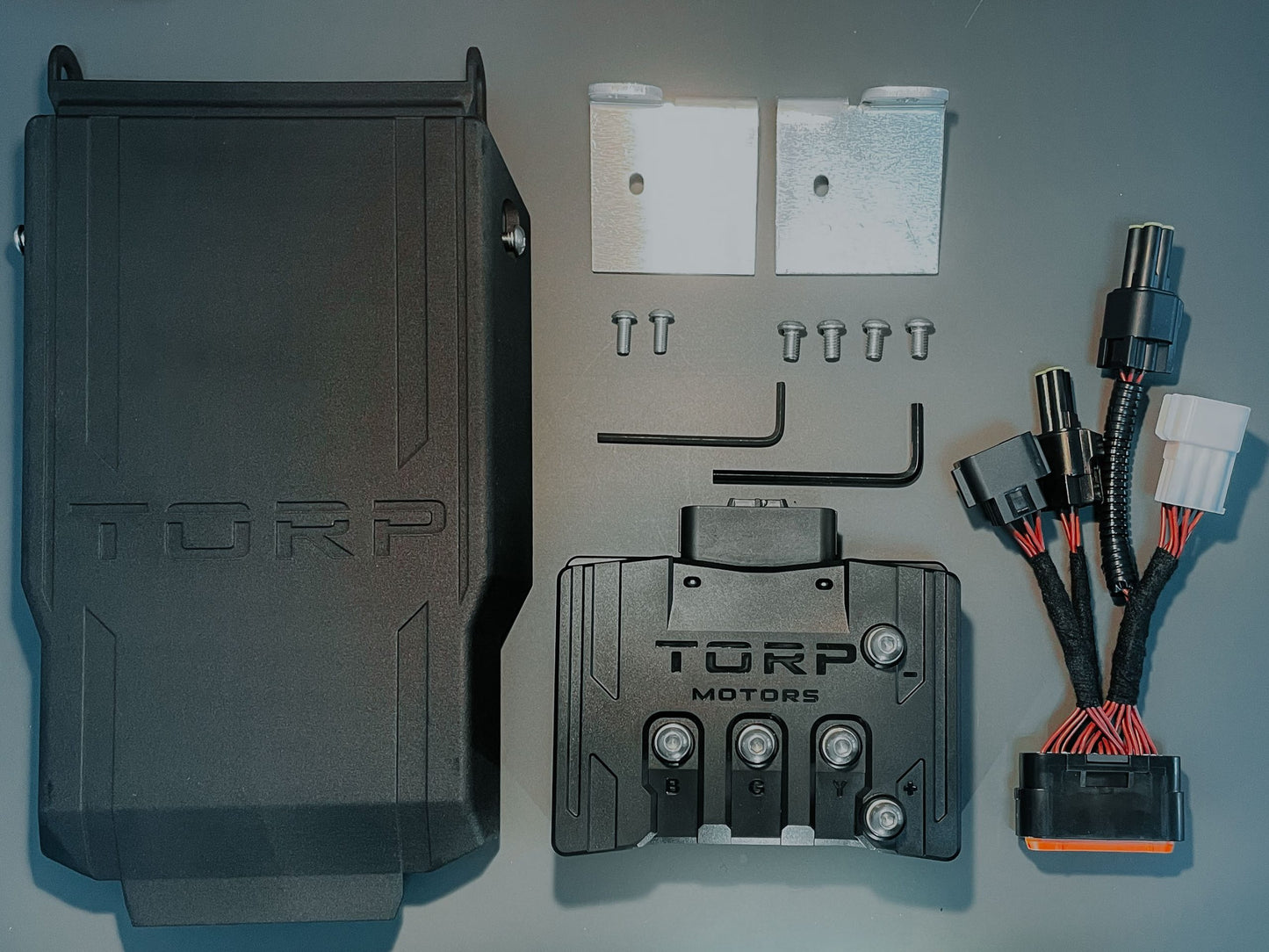

INCLUDED IN THE PACKAGE:
-1x TC500 2.0 Controller
-1x wire harness
-1x plastic shield
-screws and tools needed for installation
-4x stickers
-short instructions
SPECIFICATIONS:
- next-level innovation.
Revolutionary features that transform your riding experience with unprecedented control and performance. - Launch & Lift Assist
Advanced stability control for perfect wheelies and enhanced riding dynamics. - Latest Automotive standard throttle support
Precision control with redundant throttle inputs for maximum safety and responsiveness. - Rugged & reliable
Built to conquer the toughest terrain effortlessly, with industry-leading overcurrent protection that reacts in under 1 μs.
– Field-oriented control (FOC)
– Supported batteries: from stock 60V up to 72V nominal 22S (84V fully charged)
– Max Power: 25kW*
– Sensored (HALL Encoder) and sensorless control
– Max Battery Current: 350 A*
*In combination with:
the stock SurRon e-motor, the max power is 17kW
the stock Talaria MX4 e-motor, the max power is 18kW
TM25 motor, the max power is 25kW
– Max phase current: 500 A
– Efficiency up to 99%
– Working temperature: from -15 to 75 °C
– Bluetooth communication
– Pre-calibrated: No additional steps required
– Overcurrent, overvoltage, undervoltage and overtemperature protection
– Communication with stock BMS
– Different regenerative braking and throttle modes
– Weight: 1 kg
– Features: Mobile App (IOS & Android), stock SurRon display
– Protection class: IP67*
– Regular firmware updates
* While Torp controllers are rated IP67, making them highly water-resistant, the wiring harnesses for both the controller and bike are not waterproof. In case your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors. The warranty does not cover malfunction or damage arising from the use of the motor controllers in activities where frequent or extended submersion in water is expected, such as riding in streams, rivers, or flooded areas. Over
TC500 for Talaria MX3
| Stock controller + Stock Battery | 6 kW |
| TC500 + Stock Battery | 8 kW |
| TC500 + Custom 60 V Battery** | 13,5 kW |
| TC500 + Custom 72 V Battery | 17 kW |
*There is no need to bypass the battery with the TC500, but in case you use the bypassed battery, the TC500 controller will work with it as well.
**Depending on the voltage sag.
TC500 for Talaria MX4
| Stock controller + Stock Battery | 7 kW |
| TC500 + Stock Battery*** | 11,5 kW |
| TC500 + Custom 60 V Battery** | 15 kW |
| TC500 + Custom 72 V Battery | 18 kW |
*There is no need to bypass the battery with the TC500, but in case you use the bypassed battery, the TC500 controller will work with it as well.
**Depending on the voltage sag.
***Important: Currently the controller CAN NOT communicate with the stock Talaria battery produced by SCUD. Other controller functionalities are intact. Click for more information.
