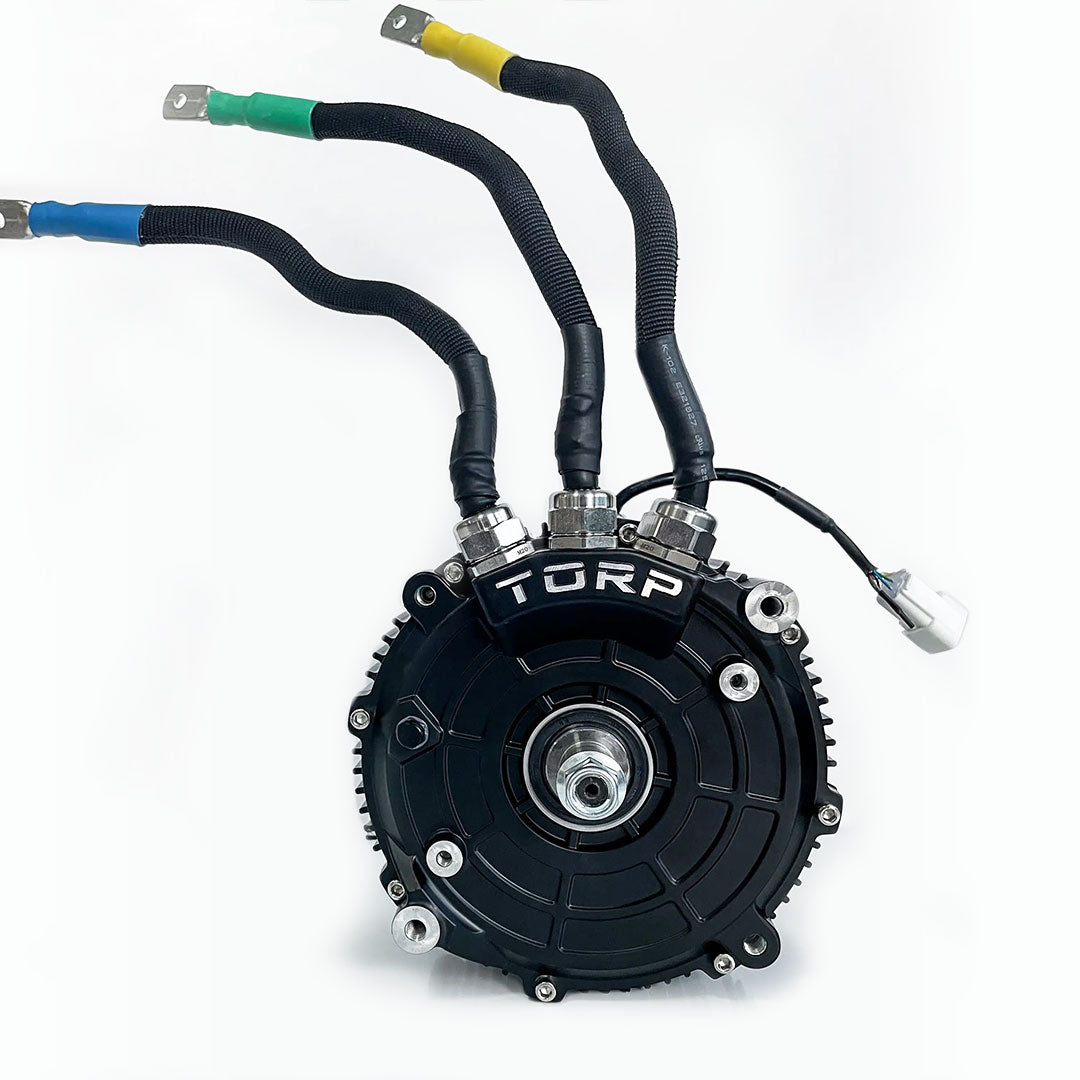

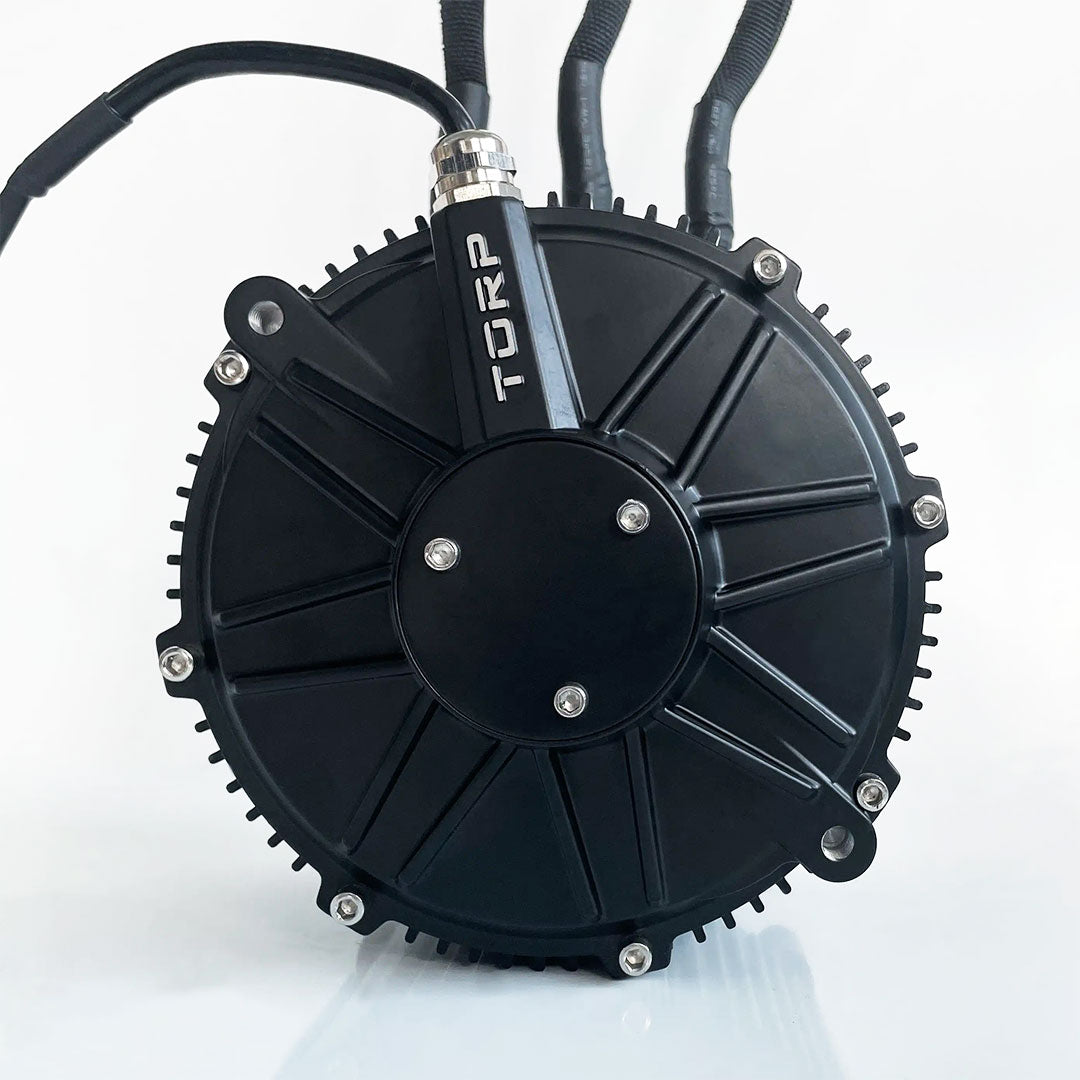

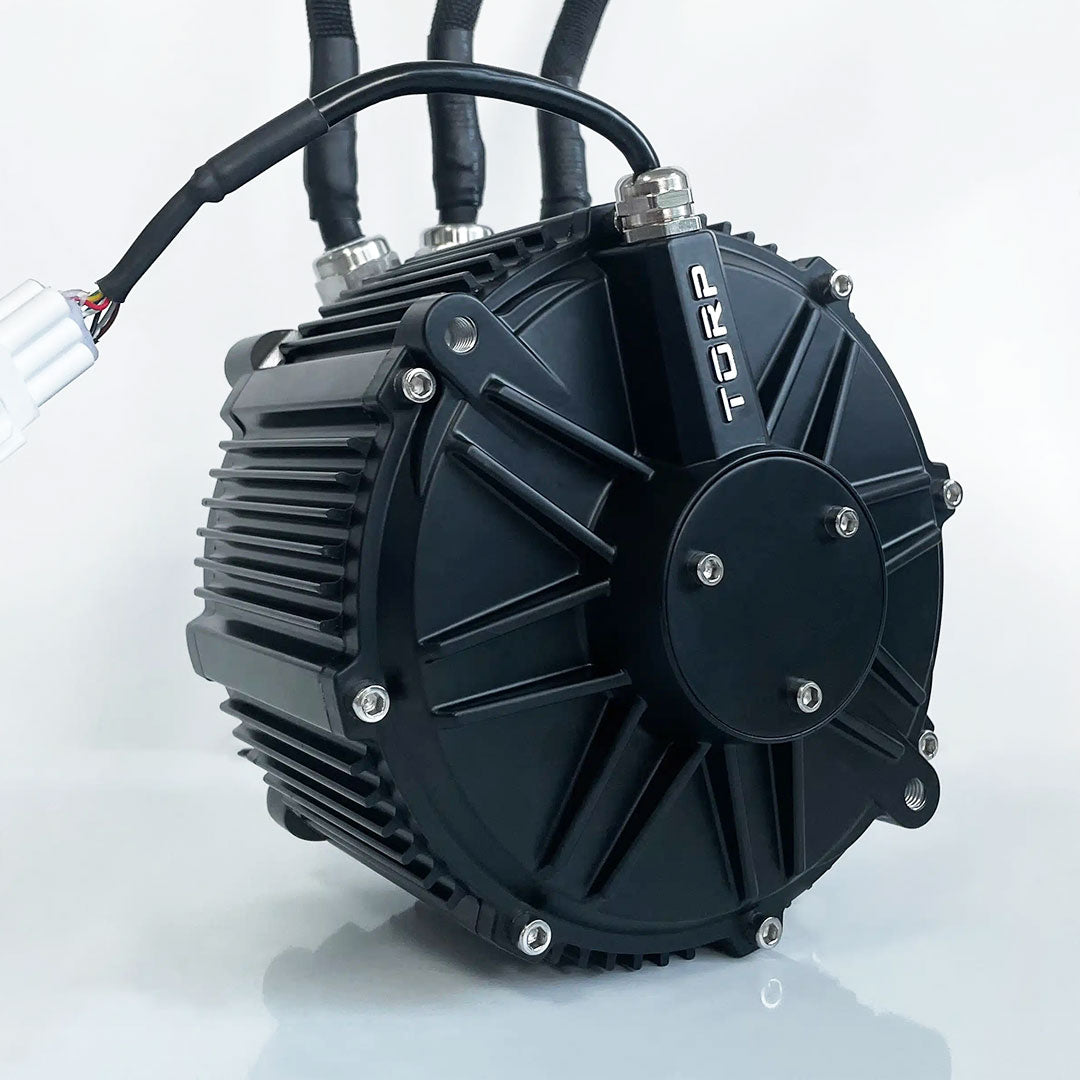

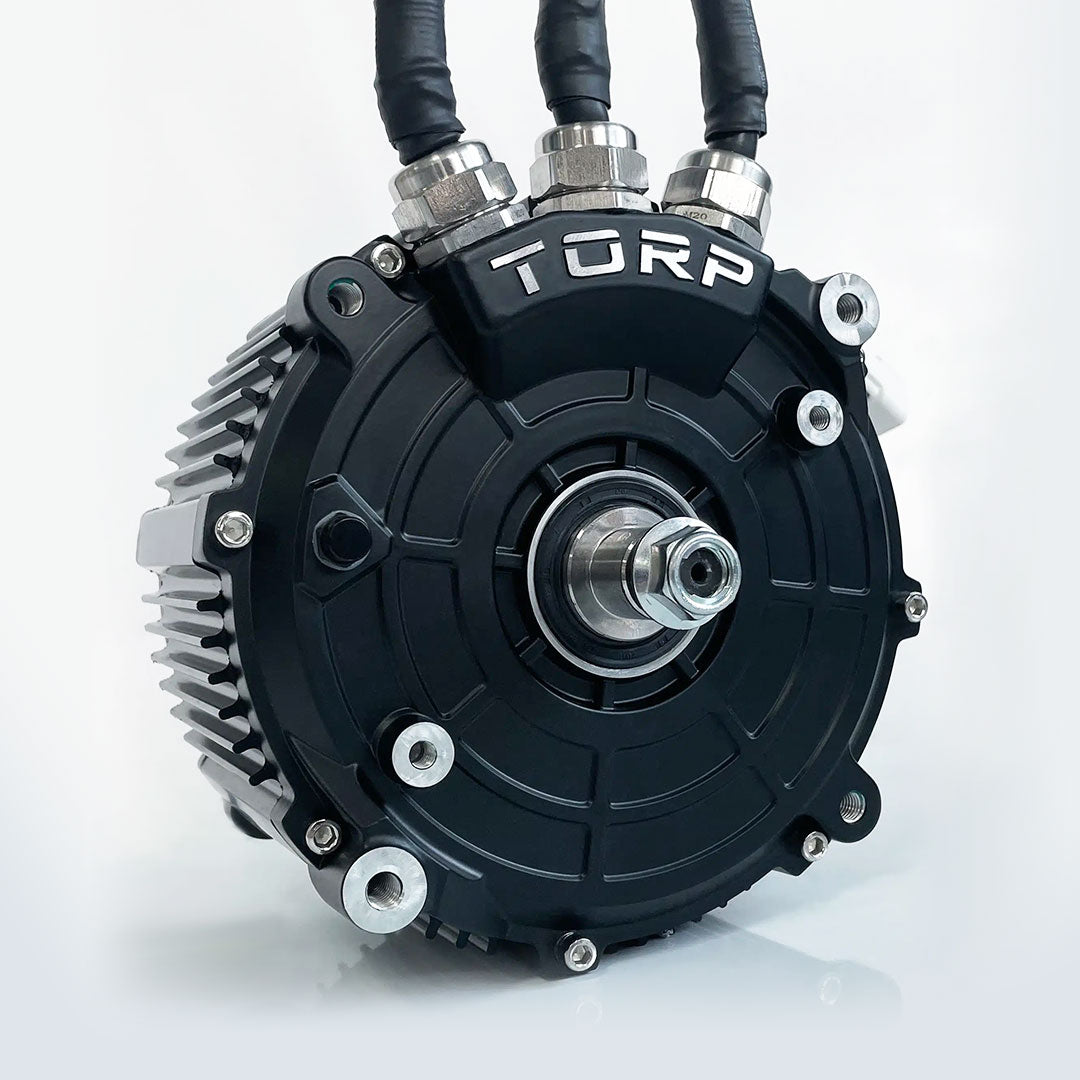

TORP - TM40 Motor Upgrade For SurRon Light Bee

TORP - TM40 Motor Upgrade For SurRon Light Bee

$1,795.00 USD
$1,795.00 USD
Sale COMING SOON
Shipping calculated at checkout.
$1,795.00 USD
Motor Type
Position Sensor

TORP-TM40-EN

Description

The Torp TM40 is a game-changer when it comes to SurRon Light Bee.

Our engineers have maximized the power output of the SurRon Light Bee by designing a motor with 65mm-wide magnets. This innovation delivers peak performance within a small, lightweight frame.

Engineered for the sole purpose of pushing both you and your bike to the absolute limits, this powerhouse is built for those who crave power and dominance.

Lead the pack at drag races, shatter records, and impress your friends with the most powerful SurRon Light Bee on the track!




Tm40

Peak Power: 42 kW
Continuous Power: 17 kW
Max Phase current: 1000 A
Max Torque: 93 Nm
Torque 500 A: 52 Nm
KV rating: 84 RPM/V
Motor Resistance: 2.7 mΩ
Phase cross-section: 35 mm²
Magnet length: 65 mm
Weight: 12 kg
Motor Size: 115×165 mm
Max RPM: 10 000 RPM
Motor type: IPM
Position sensor: Encorder/Hall
Encoder points: 1024 (4096)
Max magnet temp.: 150 °C
Temp. sensor: PT1000
Efficiency: up to 95%
Protection class: IP67*
Terminal lug size: M6 35 mm²
Installation: Mid
Number of pole pairs: 5
Cooling method: Air

Warranty: 2 year

Tm40pro

Peak Power: 50 kW
Continuous Power: 19 kW
Max Phase current: 1100 A
Max Torque: 86 Nm
Torque 500 A: 48 Nm
KV rating: 97 RPM/V
Motor Resistance: 2.4 mΩ
Phase cross-section: 35 mm²
Magnet length: 65 mm
Weight: 12 kg
Motor Size: 115×165 mm
Max RPM: 11 000 RPM
Motor type: IPM
Position sensor: Encorder/Hall
Encoder points: 1024 (4096)
Max magnet temp.: 150 °C
Temp. sensor: PT1000
Efficiency: up to 95%
Protection class: IP67*
Terminal lug size: M6 35 mm²
Installation: Mid
Number of pole pairs: 5
Cooling method: Air

Warranty: 2 year



*Our products have an IP67 rating, achieved by testing in distilled water under laboratory conditions. Please note that this rating does not imply suitability for continuous underwater use as it may result in damage. Additionally, the connectors on the product are not waterproof and must be kept dry to ensure proper functionality and safety. . The warranty does not cover malfunction or damage arising from the use of the products in activities where frequent or extended submersion in water is expected, such as riding in streams, rivers, or flooded areas. Over time, seals and components may degrade, reducing the water-resistant effectiveness of the product. Damage resulting from this natural wear and tear is not covered by the 2-year warranty.
