ASI - BAC855 eMobility Controller Evaluation Kit
ASI - BAC855 eMobility Controller Evaluation Kit
Regular price
$700.00 USD
Regular price
$850.00 USD
Sale price
$700.00 USD
Shipping calculated at checkout.
Quantity
SKU:BAC855-EVAL-KIT
Couldn't load pickup availability
Description
BAC855 eMobility Controller Evaluation Kit

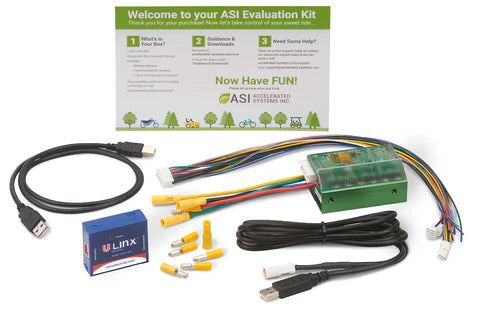

The hardware included in your box:

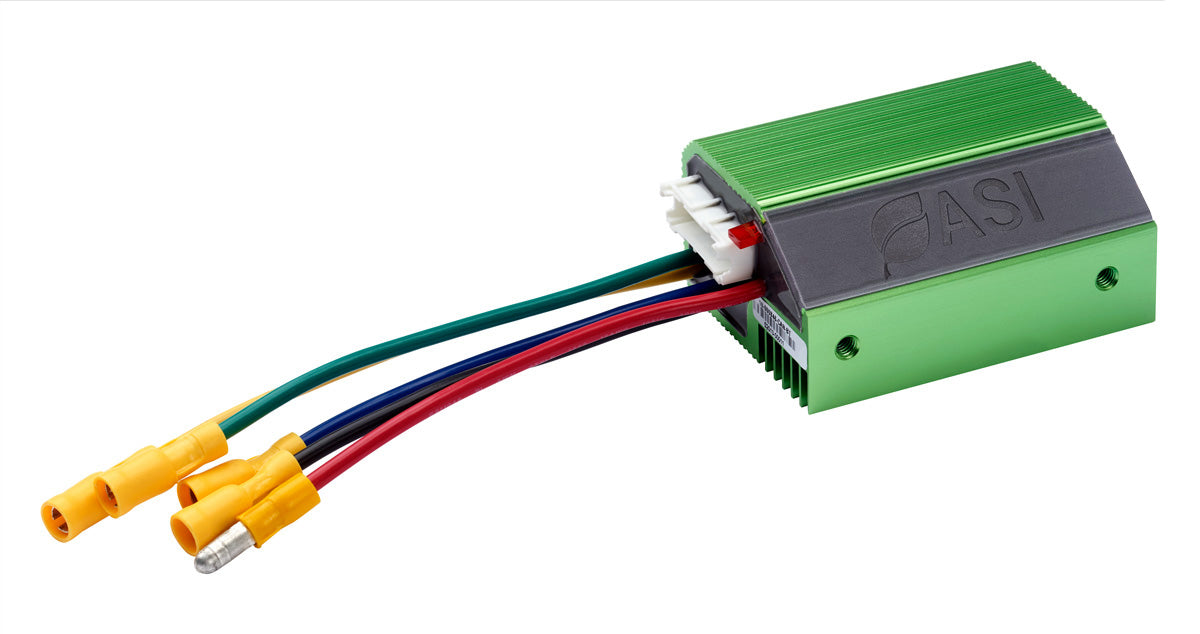

- Accelerated Systems 855W Controller with CAN + BT

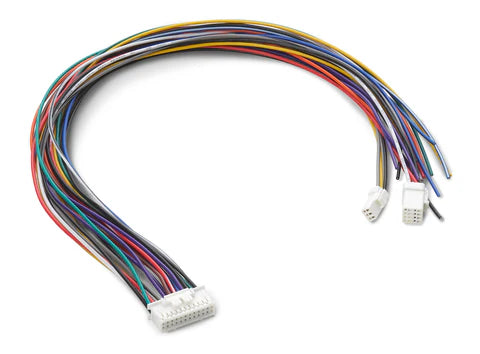

- Mating harness
- Serial to USB adapter
- USB isolator (with USB cable)
- Battery power loopback
- KST bullets
- 1/2 hour Engineer Support
BACDoor Engineering Software Not Included
Controller Specs:
| Nominal Input Voltage | 24 to 72VDC |
|---|---|
| Peak Phase Current | 90A |
| Continuous Electrical Output Power @ 20°C Ambient | 850W @ 48V |
| Motor Control Model | Direct Field-Oriented Control |
| Supported Motor Types | 3-Phase Permanent Magnet |
| Supported Motor Sensor Types | Sensorless, 120° Electrical Halls, Sine/Cosine Encoder |
| Operating Ambient Temperature Range | -20 to 50°C |
| Inrush current limit | 45A |
| Communication Protocols | TTL, CANBus, Optional BT |
| Inputs | 3x Halls, 2x Digital, 4x Analogue |
| Outputs | Hall 5V, 5V, 12V, Low-Side Switch, Optional Switched 6V Light Output |
|
Generic Connectors |
Signal - S24B-PADDSS-11x KST MPD5.5-195 or equivalent4x KST FPD5.5-195 or equivalent |
