BAC8000 Power Kit for SurRon / Segway (Used)

Description

Local Pickup Only

HighVoltagePEV has developed an all inclusive power kit with some of the best components for installing BAC controllers. The all-inclusive kit includes  NTC tech controller mounts, EggRider v2 display, plug and play harness, phase wire extensions, and ASI BAC controller.

HighVoltagePEV proprietary tune allows you to adjust power levels from stock to 20 kw with the Egg Rider display, as long as supporting battery and motor mods are installed as well.  This gives you the ability to change riding modes and levels depending upon conditions.  With the 9 modes of off-road and road selection you essentially can dial in 18 different power levels to maximize your flexibility between range and power. Each power level can be adjusted within the EggRider display app.

EggRider display app allows complete adjustment of some of the most crucial settings to your e-bike that you may be looking to adjust. Easily swap between different battery's, regen levels, field weakening, power output, and quickly change from kmph and mph. One of the best features is the ability to save 3 different pre configured battery's,  this gives a great ability to always display accurate battery percentage and range, with a few quick clicks on the display.

Note: Verify Battery voltage for correct percentage display! This can be quickly changed within the EggRider app!

Connecting batteries without a discharge side BMS and proper pre-charge circuit  are known for blowing capacitors in the controller per: a technical bulletin. Failure to properly protect the controller as outlined in the technical bulletin WILL VOID THE WARRANTY. Batteries currently known to lack these features include CHI battery. It's the end users responsibility to determine whether the battery being used has these protections.
Pre Charge Resistor Here

Note:

All sales of Closeout and Open Box items are final. These items are sold as-is and are not eligible for returns, exchanges, refunds, or any warranty, express or implied.



Options

60V or 72V

Billet Case For EggRider V2  (Optional)

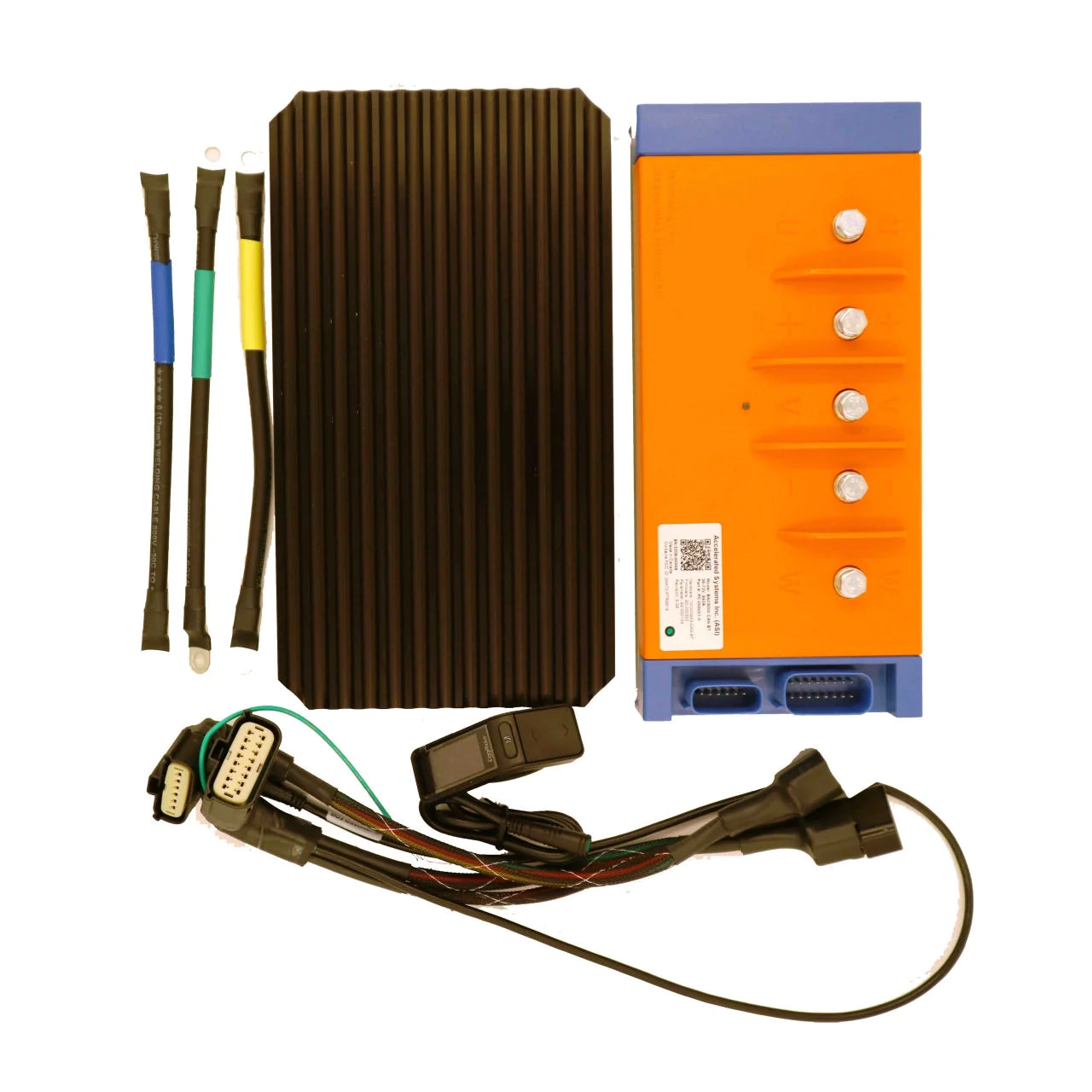

Includes

• BAC8000 Controller (Used)

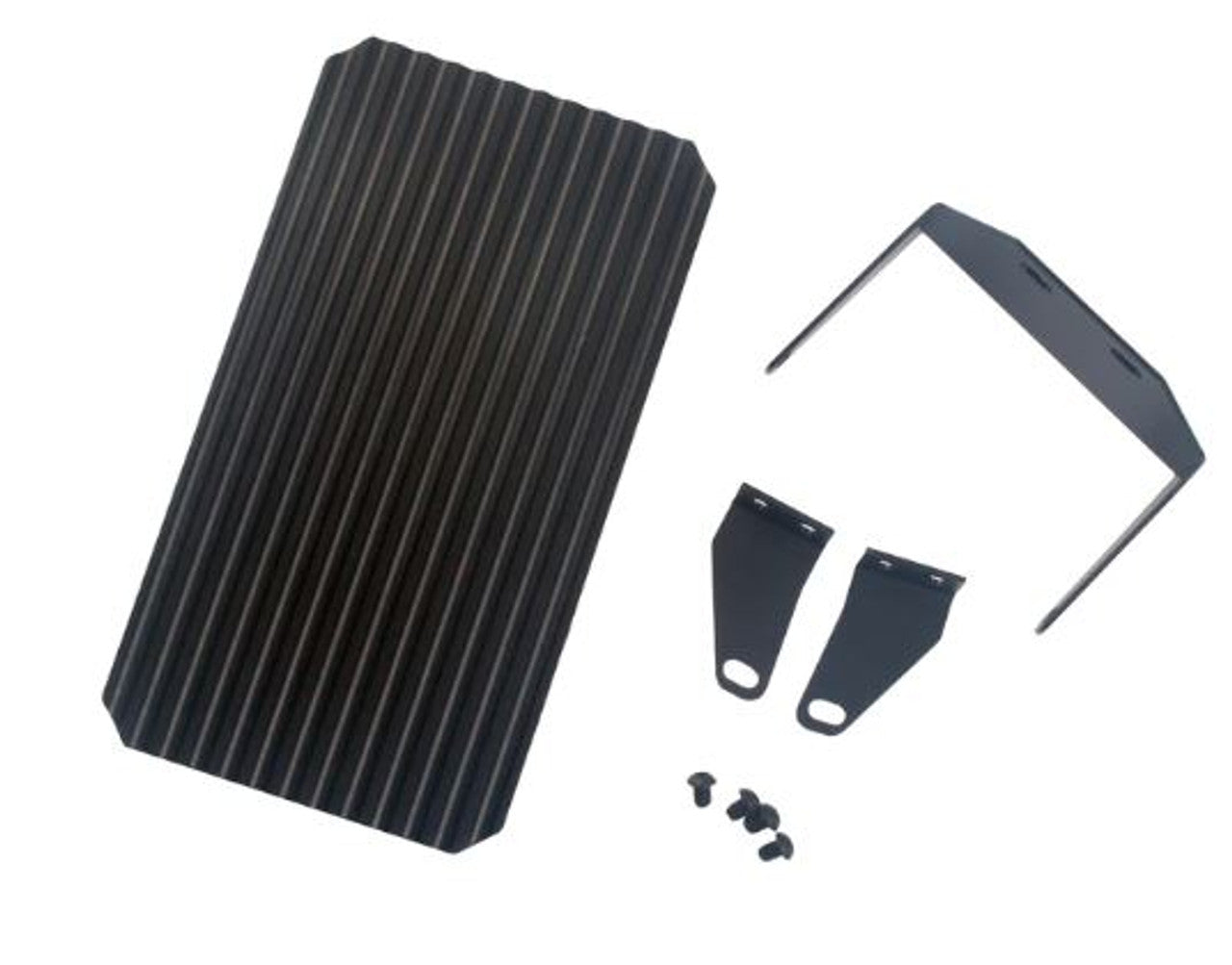

• BAC Billet NTC Mount for SurRon / Segway (Black)

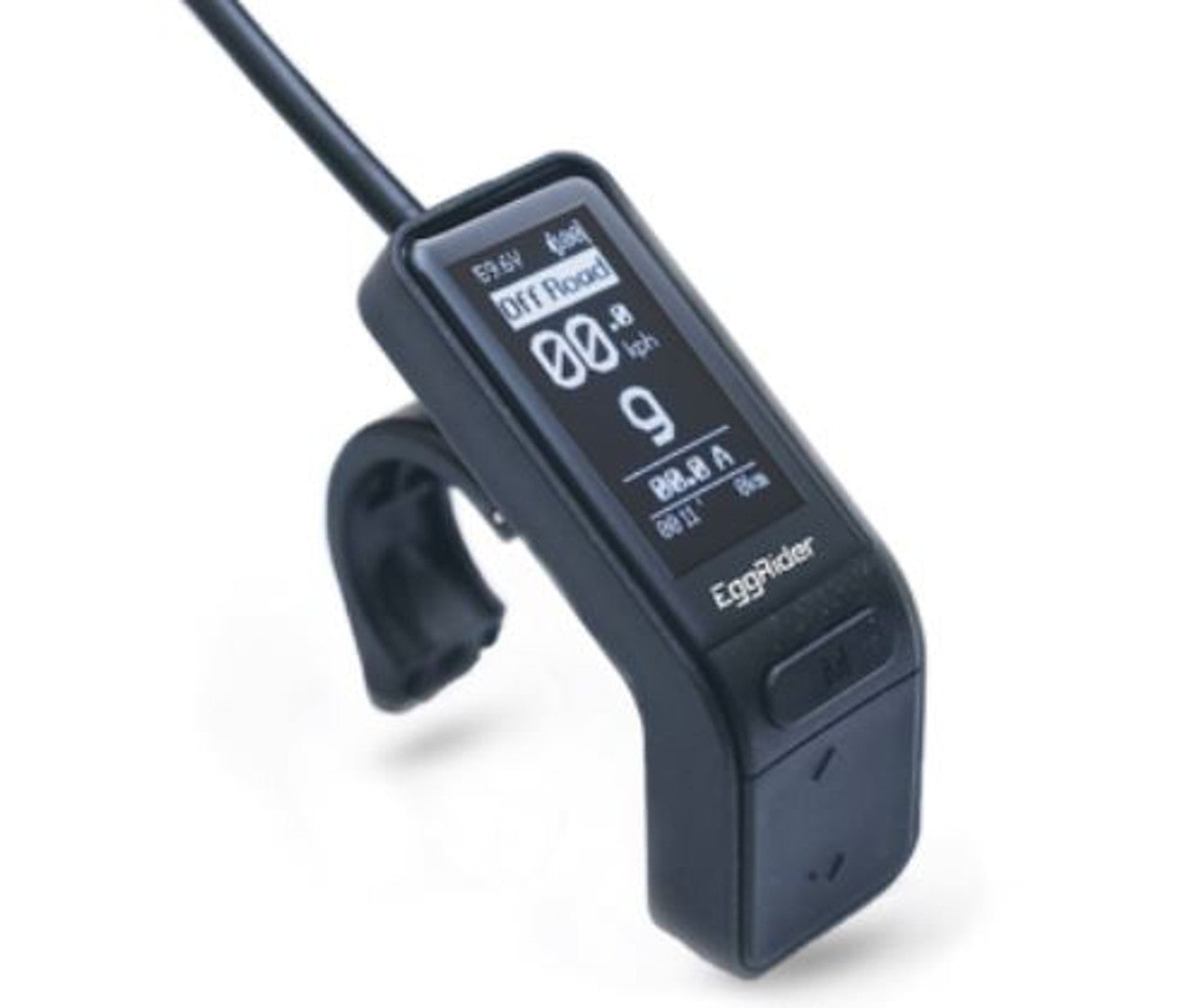

• EggRider V2 Display (Used)

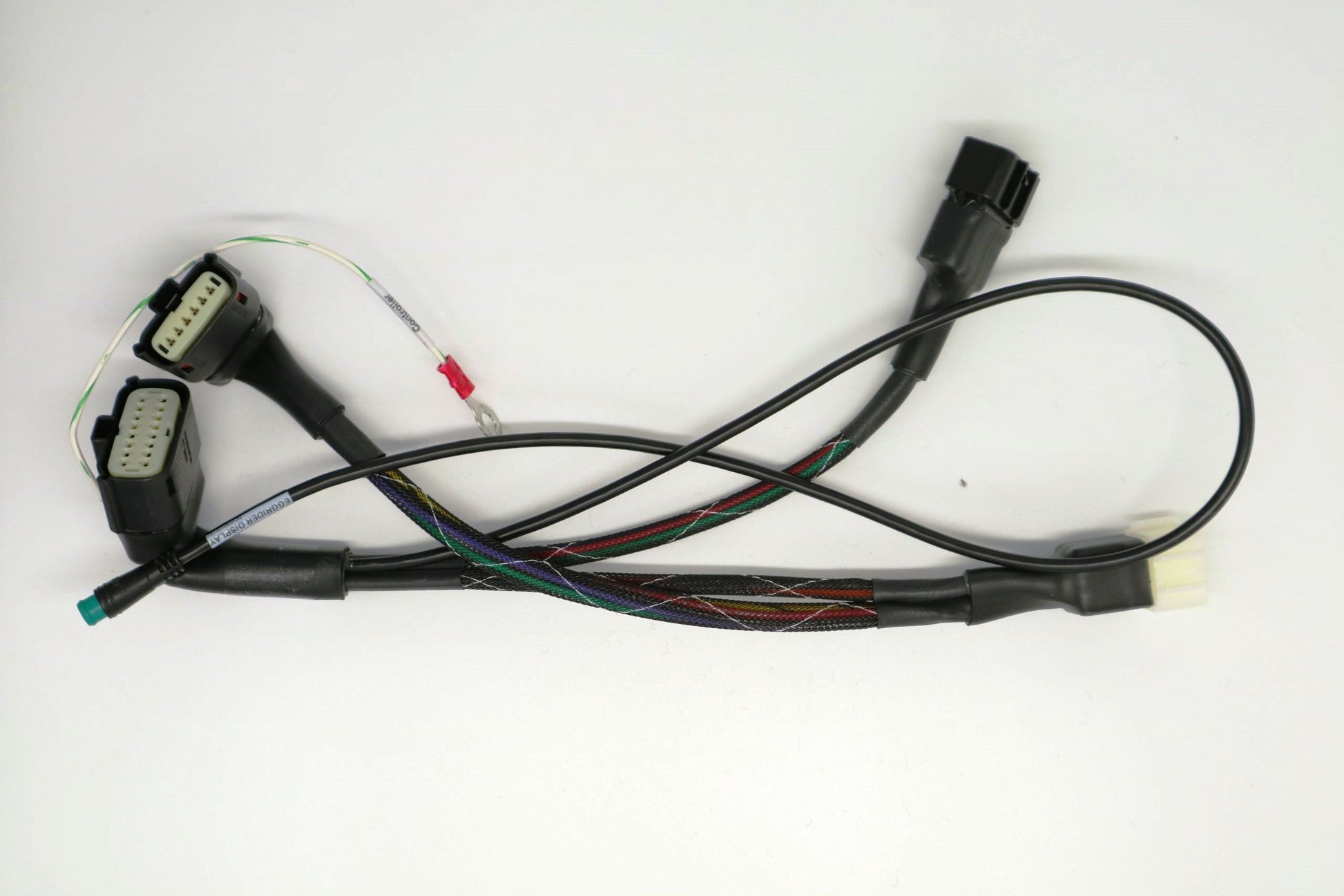

• EggRider Wire Harness for SurRon / Segway (Used)

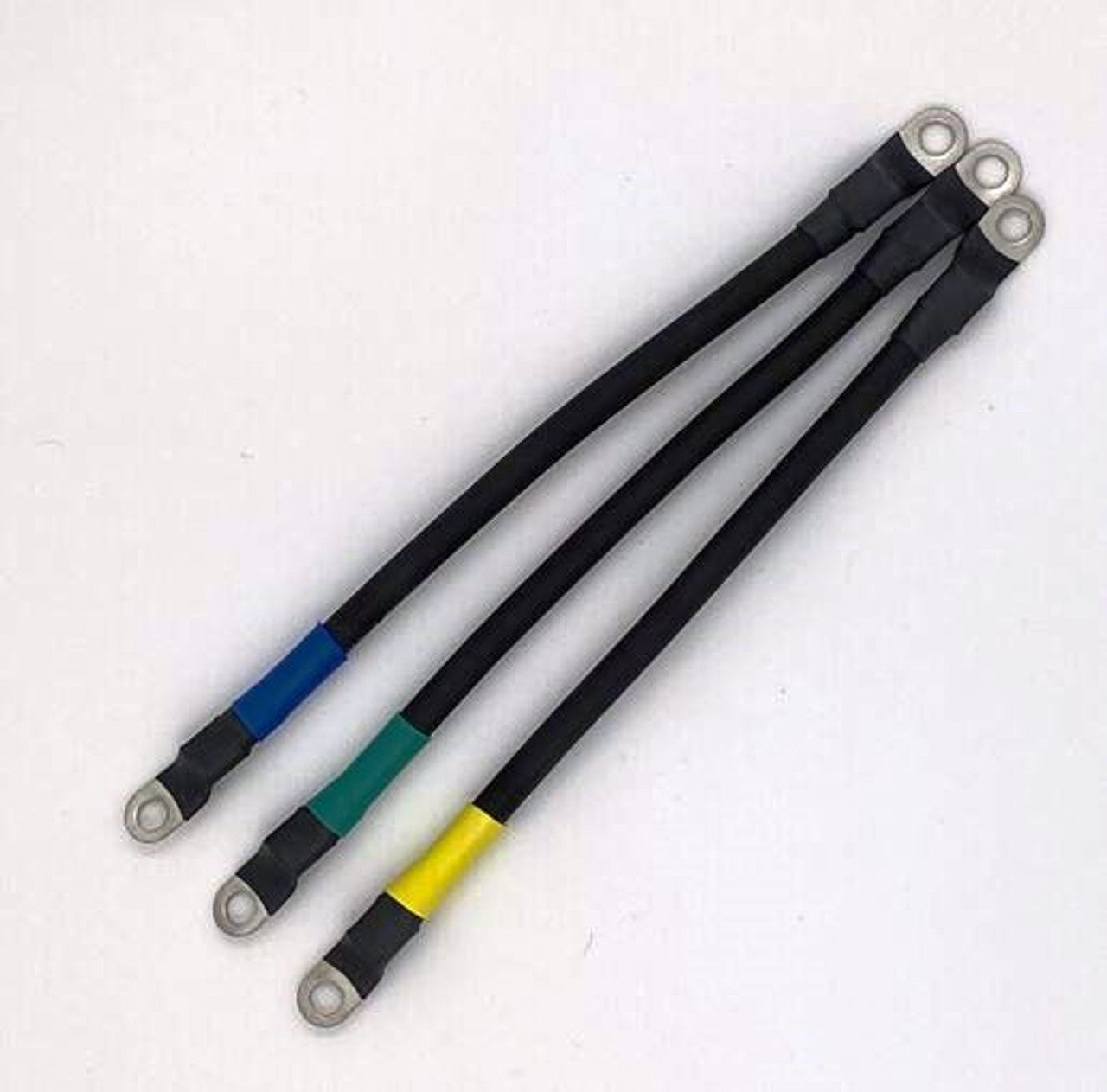

• Motor Phase Wire Extension Cables (Used)
• Shrink Tubingm (New)

Features

• 6061 Aluminum CNC machined ASI BAC8000 mounting kit
• ASI BAC8000 controller custom tuned
• Plug and play harness
• Egg Rider V2 display and phase wire extension
• Customizable power levels
• Ability to change and hot swap batteries
• Regen and field weakening adjustments
• Completely Plug and play kit!

Specs:

Nom. Voltage	36 - 72V Volts
Peak Current	840 A-DC
CAN BUS	Yes
Auto Tuning	Yes
Sensorless Start	Adaptive
IP Rating	IPx5 (with fully populated connectors)
QC Verification	100% EOL Test under load
Additional Available Protocols	TTL 485, Bluetooth, LIN, CAN
