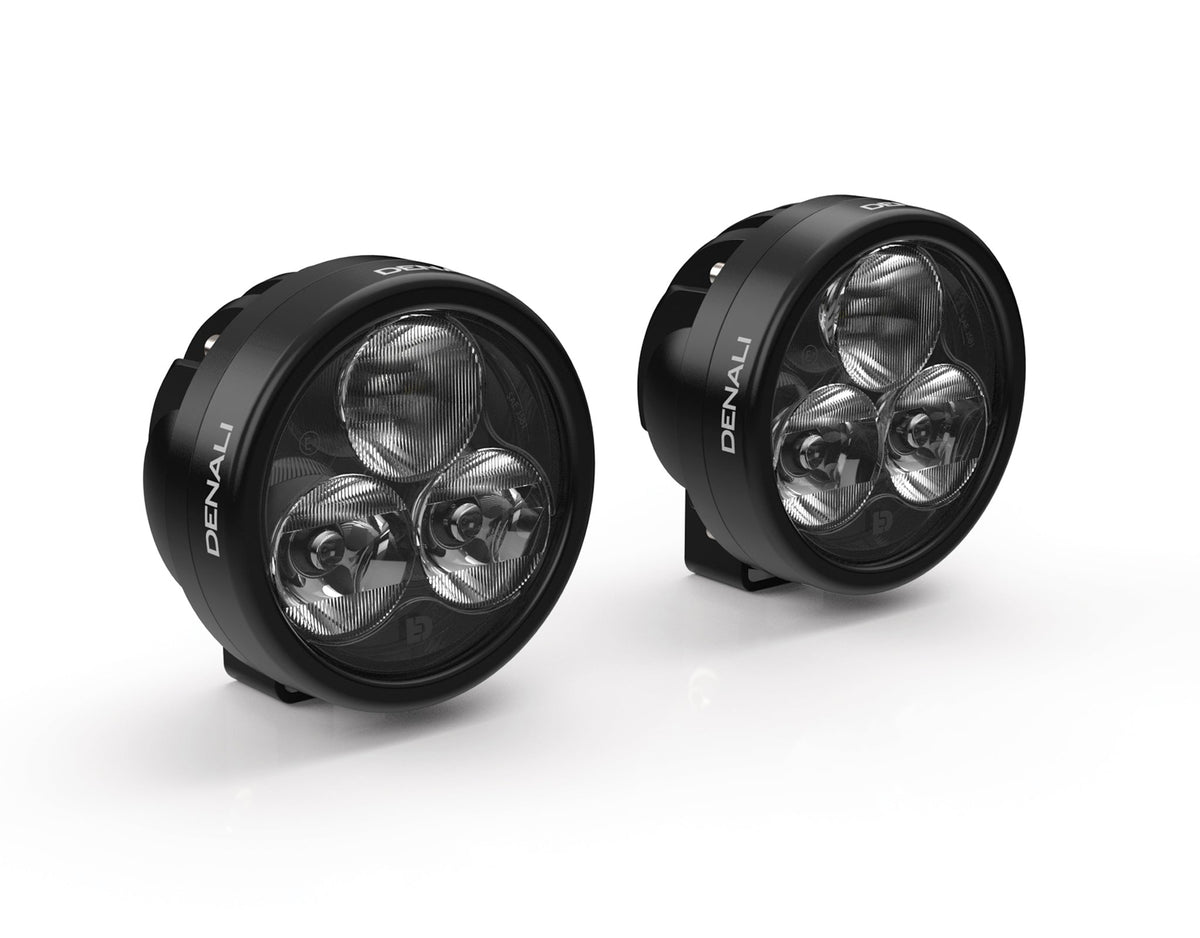

Denali D3 LED Driving Light Pods with DataDim™ Technology

The DENALI D3 LED Driving Light is a compact, high-output auxiliary light designed for motorcycles, powersports vehicles, and automotive applications.

Each 36-watt D3 light pod produces 2,100 lumens and features DENALI's TriOptic™ lens system, which includes both spot and hybrid driving lenses.

The clear hybrid driving beam is SAE/DOT and ECE certified, while the spot configuration is designed for maximum long-distance visibility. When used as a pair, the D3 spot beam reaches approximately 1,910 feet at 1 lux.

DENALI's DataDim™ 3-wire technology also allows the D3 to work with compatible DENALI dimming and lighting-control systems for advanced dual-intensity and high-beam functionality.

Key Features

• 2,100 lumens per light pod
• 36-watt power draw per pod
• TriOptic™ spot and hybrid lens system
• DataDim™ smart-dimming technology
• SAE/DOT and ECE-certified clear hybrid driving beam
• ECE-certified spot beam
• IP67 waterproof and submersible construction
• LiveActive™ thermal management
• Impact PC™ polycarbonate bezel
• Low-profile mounting bracket
• Stainless-steel mounting hardware included

Specifications — Per Light Pod

• Manufacturer: DENALI Electronics
• Product: D3 LED Driving Light Pods with DataDim™ Technology
• Light Output: 2,100 lumens
• Power Draw: 36 watts / 3 amps
• Operating Voltage: 9–32V DC
• LED: 3 × Cree XP-P LEDs
• Pod Size: 3.5 in. round × 2.62 in. deep
• Waterproof Rating: IP67
• DataDim™ Compatible: Yes

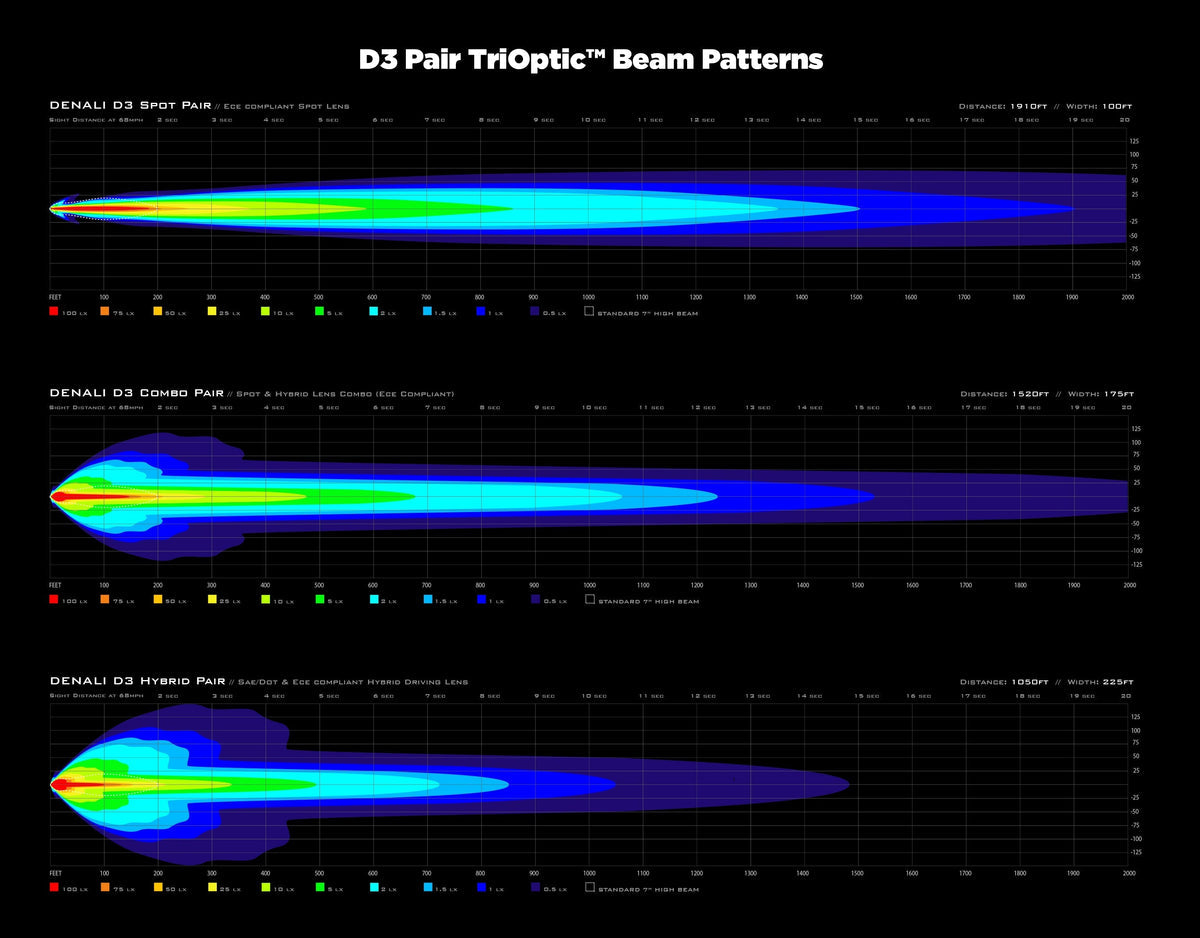

Beam Performance — Pair

• Spot Beam: 1,910 ft distance / 100 ft width at 1 lux
• Combo Beam: 1,520 ft distance / 175 ft width at 1 lux
• Hybrid Beam: 1,050 ft distance / 225 ft width at 1 lux

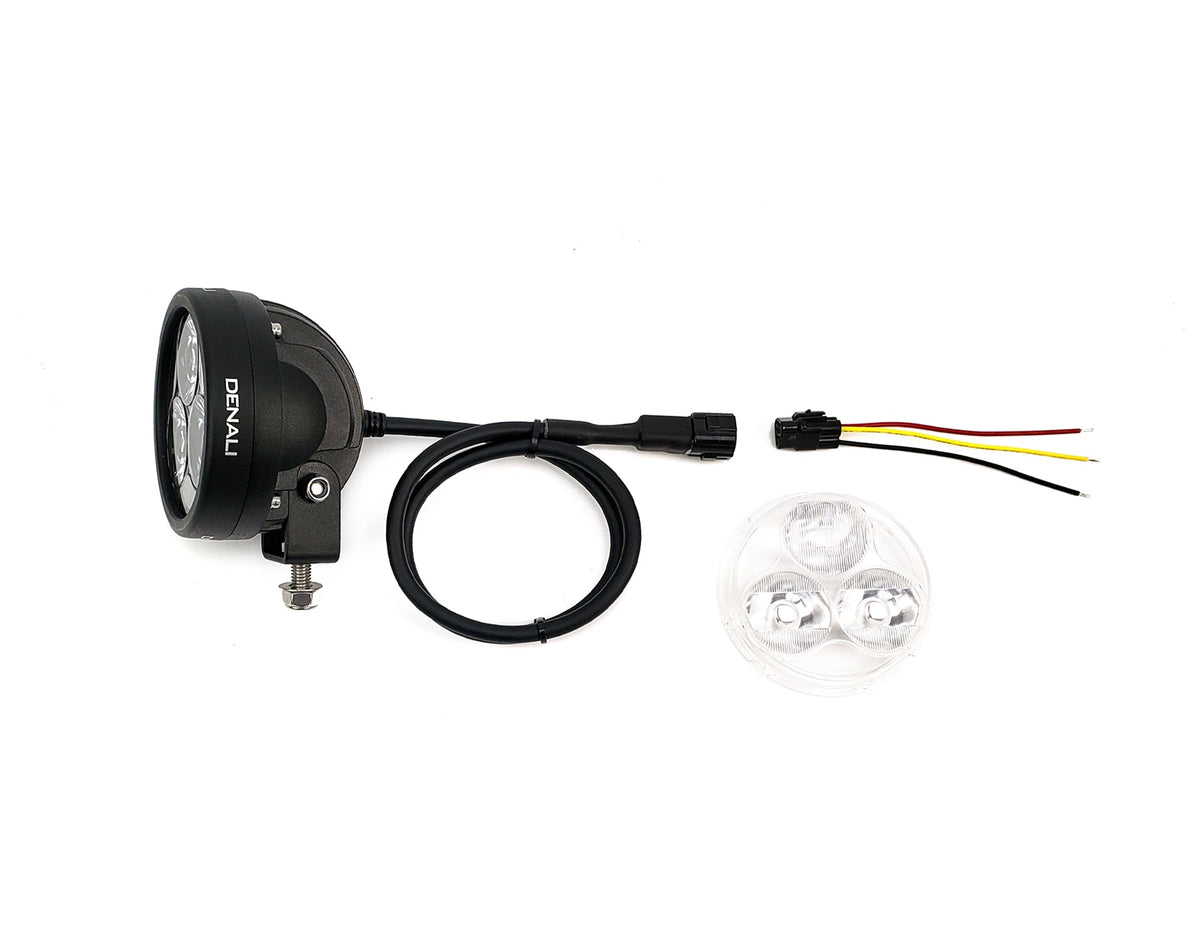

What's Included

• DENALI D3 LED light pods
• Spot lenses
• Hybrid driving lenses
• Hinge mounts
• M8 stainless-steel mounting hardware
• Wiring pigtails
• Colored lens kit when applicable to selected variant

Note: Wiring harnesses and controllers may be sold separately depending on the configuration selected.

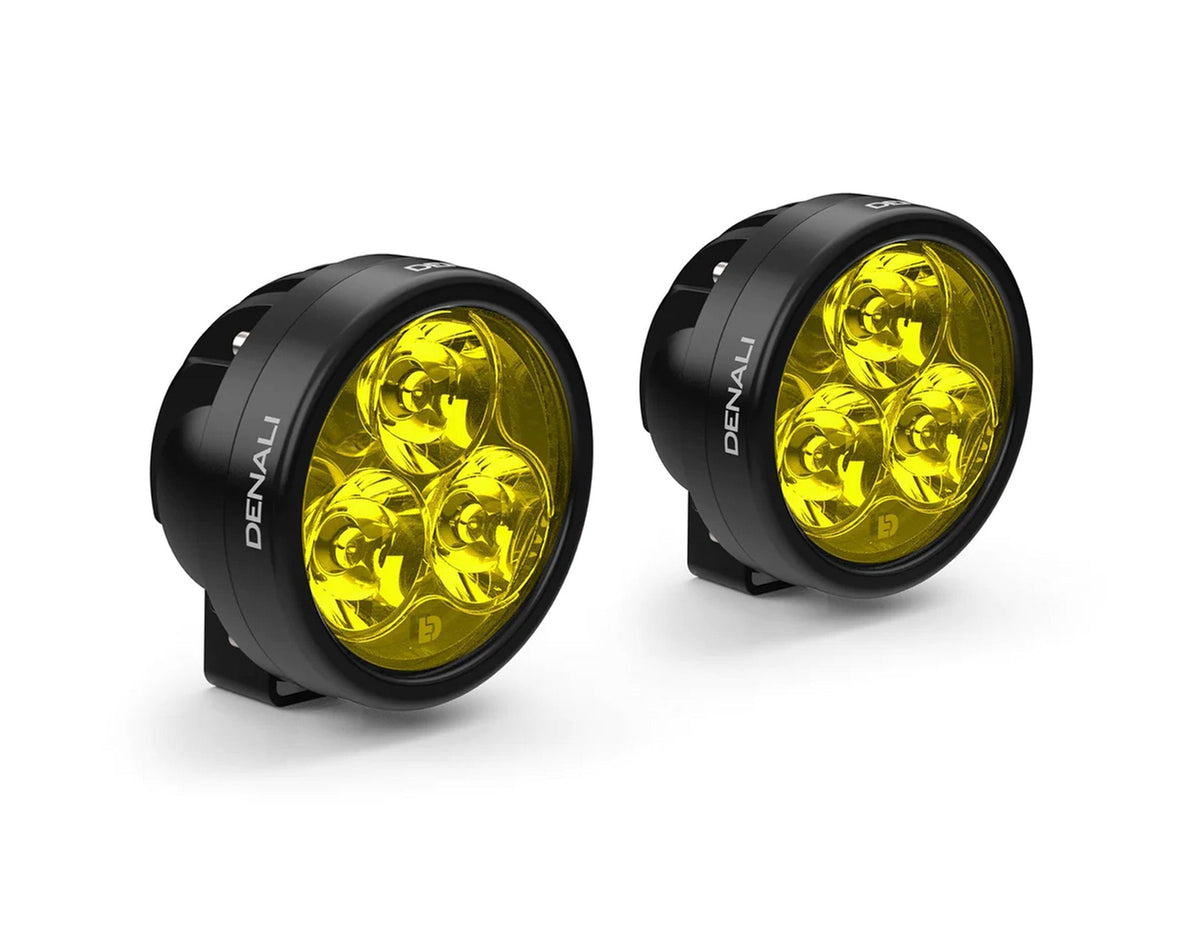

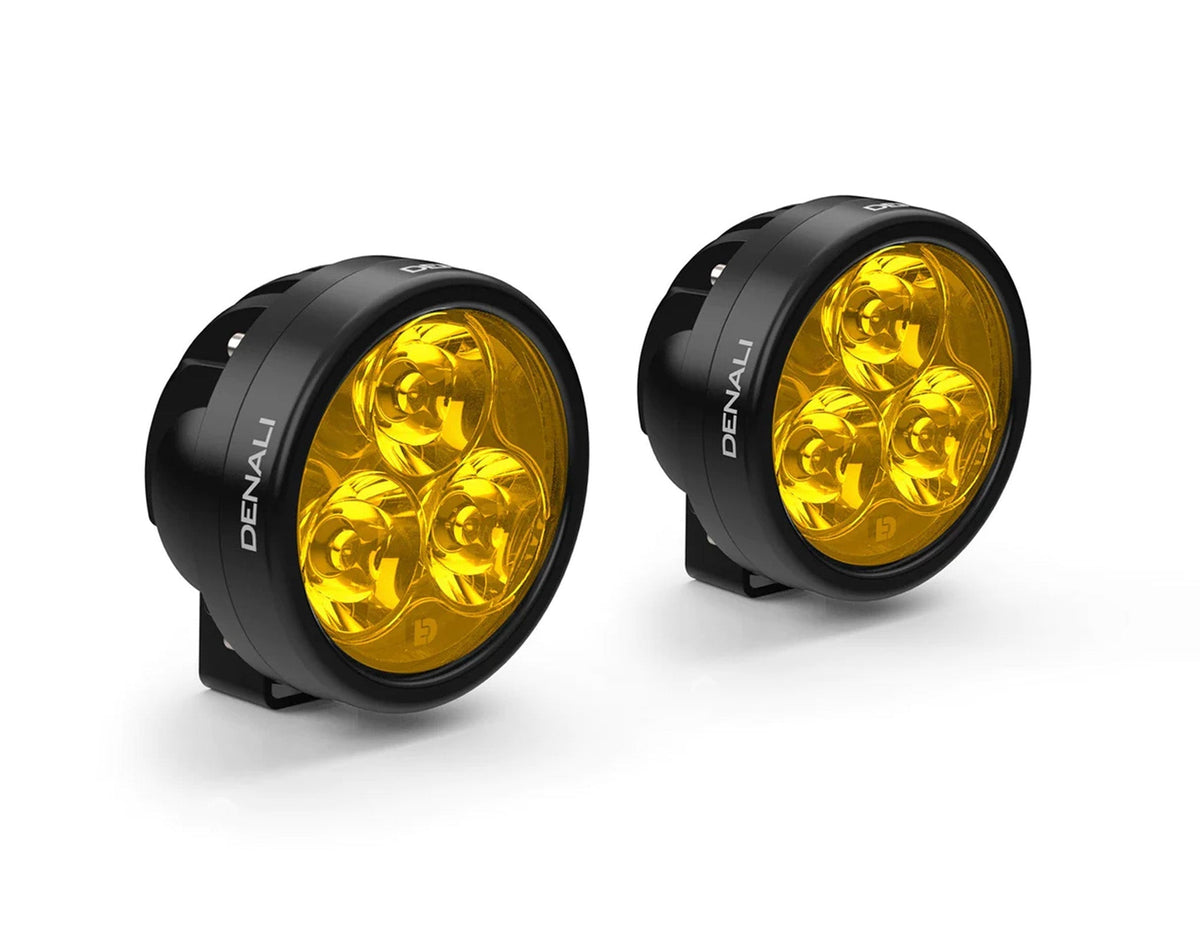

Amber and selective-yellow lenses are not SAE/DOT or ECE certified.

Instruction Manual Download

• PDF Instruction Manual (English)

The DENALI D3 is a universal auxiliary lighting product and is compatible with a wide range of motorcycles, powersports vehicles, and 9–32V DC applications.

Vehicle-specific fitment depends on the mounting bracket, wiring harness, and lighting controller used for your application.

Common applications include:

• Adventure motorcycles
• Touring motorcycles
• Sport touring motorcycles
• Dual-sport motorcycles
• Cruisers
• ATVs and UTVs
• Automotive and off-road applications

Important: A vehicle-specific mounting kit or wiring solution may be required. Verify compatibility for your specific year, make, and model before ordering.
