Manitou

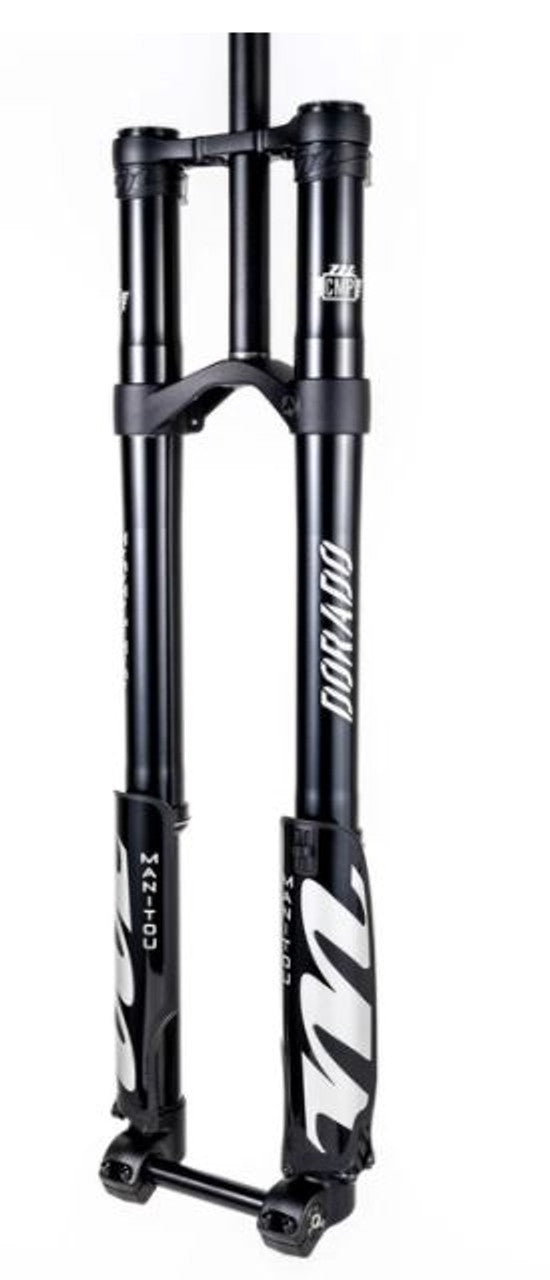

Dorado Comp Fork - 27.5"

Dorado Comp Fork - 27.5"

Regular price $1,299.00 USD
Regular price Sale price $1,299.00 USD
Sale COMING SOON
Shipping calculated at checkout.
$1,299.00 USD

SKU:191-37873-A101

Once again, the Dorado is available with a coil option. The new Dorado Comp features the same 37mm chassis as the Expert, but with a more set it and forget it vibe. The coil spring provides a smooth consistent feel 100% of the time with 0% of any hassle. On the damping side of things, our ABS+ Damper offers a great adjustment range, terrific reliability, and easy serviceability. The Dorado Comp is built for riders who just want to ride and not sweat any of the small stuff.



Specifications:



•Wheel Size: 27.5″, 29″
•Weight: 3600g (Firm Spring)
•Offset: 47mm Flat Crown (27.5″), 57mm Drop Crown (29”)
•Ride Height: 582mm (27.5″), 602mm (29”)
•Travel: 180, 190, 203mm internally adjustable
•Spring: Coil (5 rates available)
•Compression Damping: Absolute Plus (ABS+)
•Rebound Damping: Cartridge Adjustable TPC
•Adjustments: LS Compression, Rebound, Spring Preload, Spring Rate
•Steerer: 1-1/8″ Straight
•Crown: Forged
•Leg Diameter: 37mm
•Leg Material: 6000 Series Aluminum
•Brake Post Mount: 203mm (223 Max)
•Axle: 110mm x 20mm BOOST Thru Axle
•Max Tire Size: 67mm
•Extras: Threaded TSR
•Options: Fender
•E-Pac: Yes



Optional Springs for Dorado Comp (sold separately)

The Dorado Comp comes stock with the Medium Coil Spring (blue), it is far too soft for most Surron riders and you’ll need to purchase a stiffer set of springs. Use the tuning chart below to determine the correct spring rating for your body weight, bike, and riding style.  If you are a fast aggressive rider you might want to go up one size in springs.

      Fitment:

      SurRon
      Segway
      Talaria
