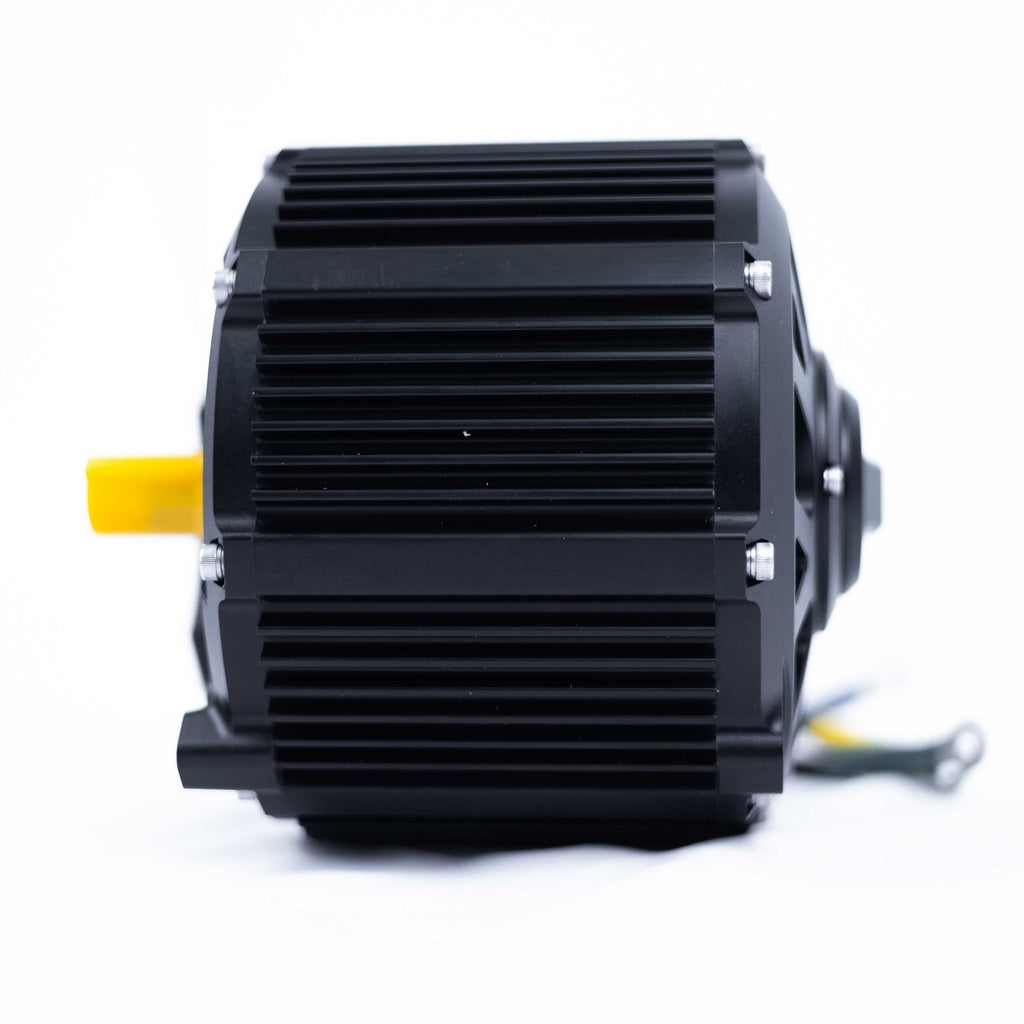

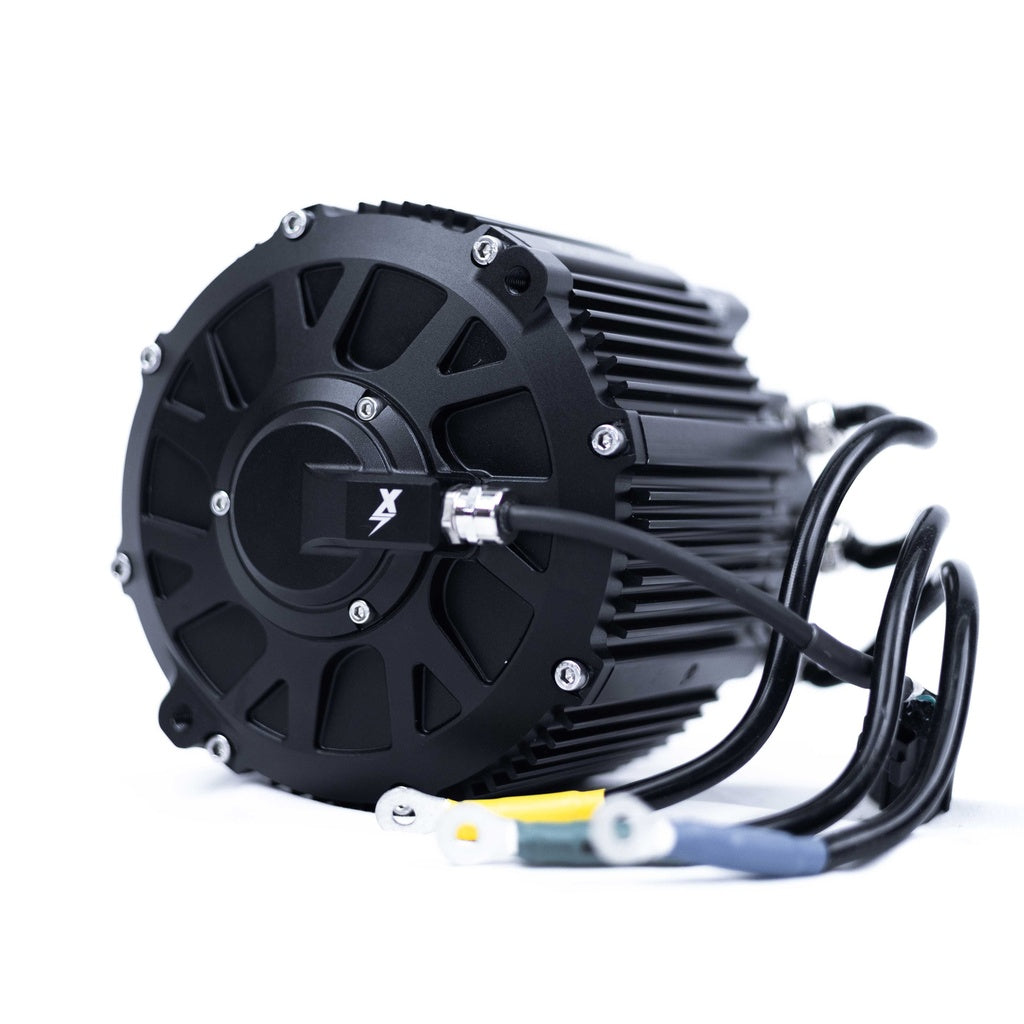

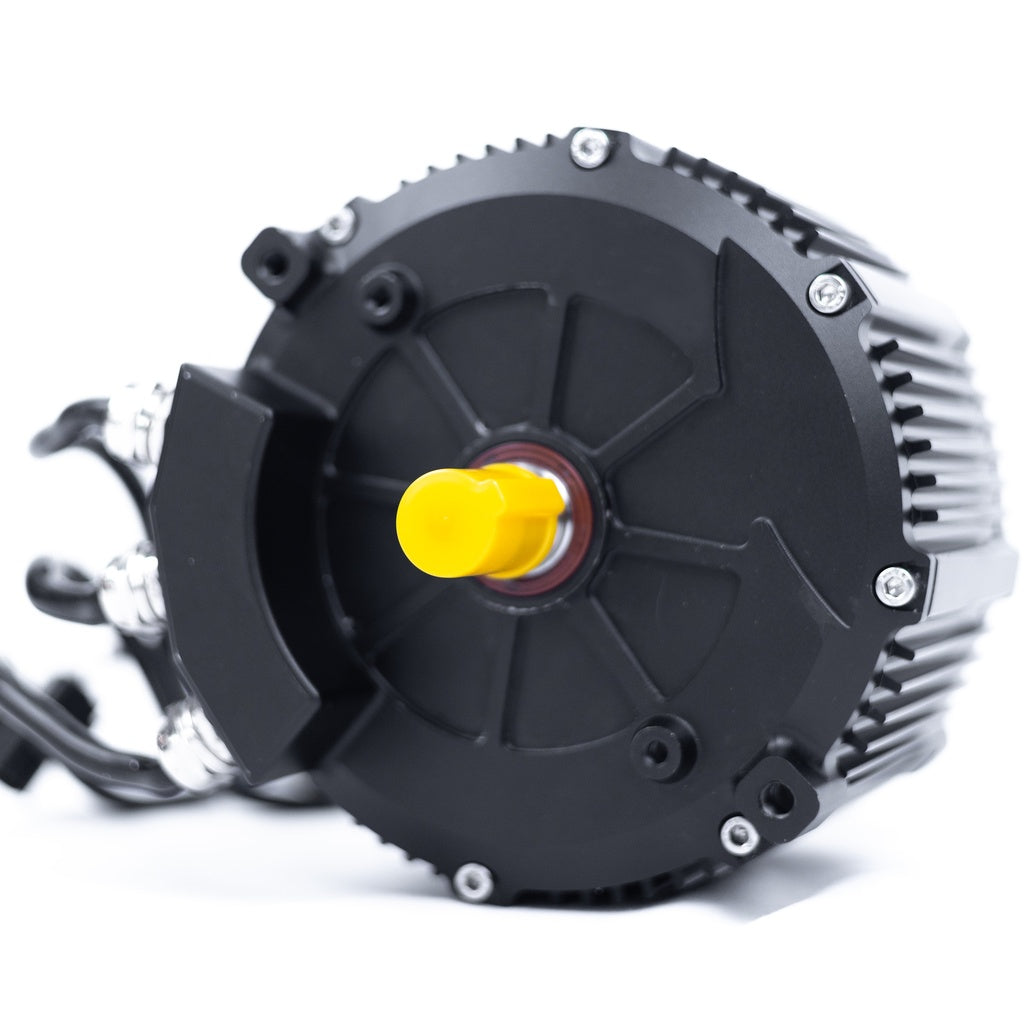

EBMX XUB-80 Motor for SurRon Ultra Bee (Air Cooled)

EBMX XUB-80 Motor for SurRon Ultra Bee (Air Cooled)

Regular price $1,395.00 USD
Regular price Sale price $1,395.00 USD
Sale COMING SOON
Shipping calculated at checkout.
$1,395.00 USD
Color

SKU:

Description

"COMING SOON"

Pre Order NOW !!

Contact Us for details



 Looking to build the biggest, baddest, fastest Ultra Bee? This motor is capable of 3x the stock power and will not overheat, even in racing conditions.

  • Slightly bigger with an 80mm Stator thickness and more powerful than its little brother the XLB-60.
  • 40KW rated & designed from the ground up to handle the heat, 180C rated windings with U42H magnets.
  • Custom IPM rotor design and industry leading 1mm rotor air gap revving out to rated 12000RPM.
  • Encoder based motor control for increased low end torque response and smooth predicable power delivery.
  • We built these motors to stay cool under race conditions to ensure you focus on your riding and not your motor temperatures. It doesn’t matter if you are on the track, street or local trail, if you want the best, then this motor is for you.
  • * This XLB-80 motor is meant to be paired with the X-9000 and will not work with your OEM controller. This motor shines at higher speeds and revs to the moon, which is typically where the OEM motor overheats. To maintain similar OEM torque, we highly recommend a 52t or larger sprocket.
XUB-80 Motor (Ultra Bee)
PEAK POWER 40KW
VOLTAGE RANGE 48v – 104v
MAX TORQUE 65Nm
MAX STABLE ROTOR RPM 12000RPM
MAX EFFICIENCY 94%
MOTOR CONFIGURATION 10 poles and 12 slots
WINDING TYPE Dual Y parallel connection
STATOR AND ROTOR STACK THICKNESS 80MM
SENSING METHOD NJDC 605 Encoder
KV Value 85~90KV
Rated power Air cooled:
9,000W(Continuous run)
Water cooled:
11,000W(Continuous run)
Max Phase current 900A
Rated Phase current (Continuous run) 500A (35Nm)
Motor temperature 180 deg C windings
140 deg C start limiting
160 deg C power cut
Waterproofing IP67
Anti-corrosion Yes

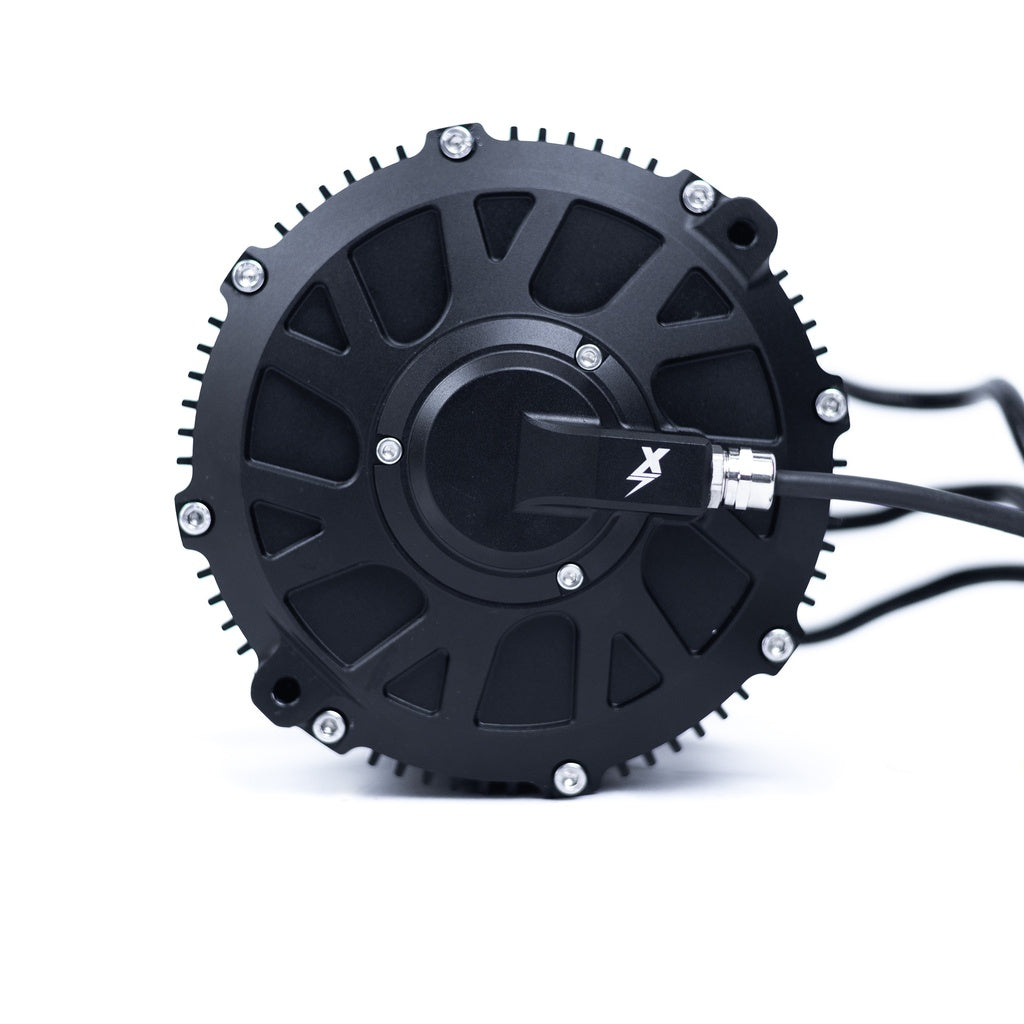

Colors Black with Black End Cap

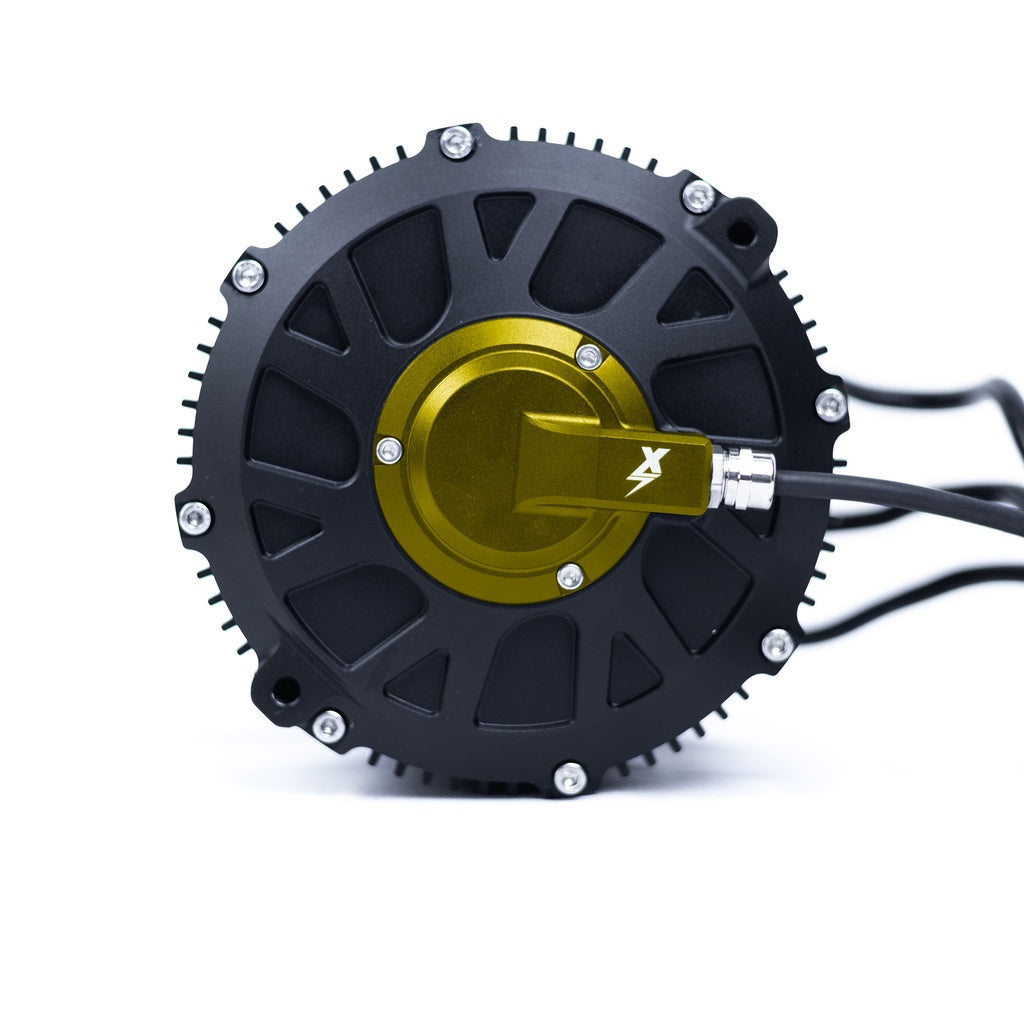

Black with Red End Cap
Black with Blue End Cap
Black with Gold End Cap
Black with Purple End Cap
Weight/Size Air cooled:
OD181.5mm*L138mm 13KG
Water cooled:
(TBD)
Warranty 2 Year



The EBMX motor range has been specifically designed to surpass the performance of other motors in their classes.

In contrast to many of our competitors who utilize hall sensors, we have opted to incorporate encoder sensors in our motors. This decision stems from the fact that encoder sensors demonstrate greater stability under demanding riding conditions. While hall sensors rely on estimated rotor positions, encoder sensors consistently provide precise angle measurements of the rotor’s position. Hall sensors are typically employed for tracking motor position during start-up and up to approximately 2000 rpm, after which the motor operates in a “sensorless” manner. However, during intense riding situations such as wheel spinning and sudden deceleration combined with rapid throttle adjustments, hall sensors angle detection can result in substantial current spikes in the controller. This can pose significant issues for many controllers, leading to tripping and loss of throttle power, although this is less prevalent in the X-9000.

Encoder sensors, on the other hand, are capable of tracking motor position at all speeds and do so more frequently than hall sensors. As a result they can deliver a smoother more responsive and controllable powerband and they do not generate the same type of current spikes that often cause controller issues. Furthermore, they contribute to improved low-end torque control and overall motor response.

EBMX motor have been custom built and are finely tuned to work with the EBMX X-9000 controller. These motors will work with many other types of controllers, however they may require you to do your own custom tuning.
