GritShift - Heavy Hitter Surron V2 Skid Plate

Life Time Warranty: "Side Rails Only" We are so confident in this skid plate that we will replace the side rails if they ever bend for FREE!
(Not applicable to bash plates, replacements are available upon request).

Heavy Hitter has redesigned your favorite skid plate to include fitment for EBMX  Motors, Re-optimized angles for enduro, and tighter fitment to controllers.

Meet the last skid plate your bike will ever need. With 7075 T6 billet aluminum side supports and replaceable bash plates, the Heavy Hitter Skid Plate can withstand a whopping 6,000 lbs of force, making it the end-all protection solution for Sur Ron & Segway, E-Motos.

The most vulnerable part of our E-Motos is the motor. It’s at the very bottom of the frame, right where obstacles like rocks, roots, and logs can strike at a moment’s notice. Unfortunately, Sur Ron, and Segway make their bikes with skid plates that lack critical support structures.

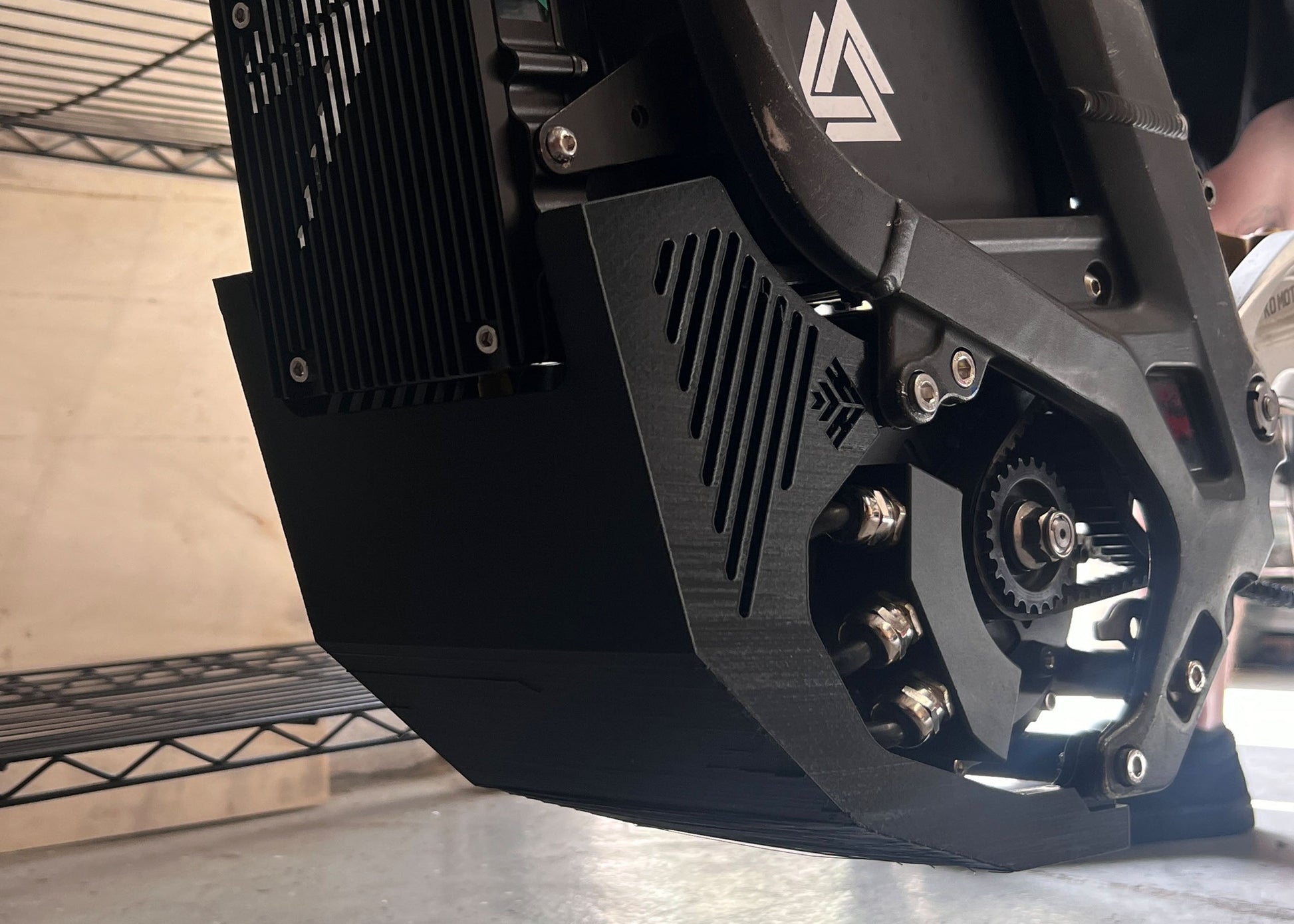

The Heavy Hitter Skid Plate has the perfect strike angle for logs, rocks, and other obstacles. With a thick 10mm aluminum bash plate, extended tail section, and strategically placed venting, our skid plate offers top-notch motor protection for on-road and off-road use alike. And if you do happen to damage it, the replaceable bash plate can be switched out for a new one in minutes.

Features

• The most robust, over-engineered skid plate on the market for your e-moto
• Made from 7075 T6 billet aluminum with a 10mm bash plate tested to withstand over 6,000 pounds of force
• Strategic ventilation slats keep your motor cool while ensuring maximum protection
• Extended tail section offers enhanced protection from perpendicular strikes
• Each section is easily removable for routine bike maintenance
• Replaceable bash plate can be exchanged in minutes

Fitment

Vehicle Fitment

• Sur Ron LBX
• Sur Ron S
• Segway X160
• Segway X260

This is the known and tested compatibility for this product. Factory variations, dealer options, and aftermarket modifications could affect compatibility in your specific case. Please verify compatibility to the best of your ability before purchasing.

Guides

Installation note: We recommend using a blue medium thread locker on all hardware during installation. Mounting bolts are T20 Torx bolts; the recommended torque value is 2.6 Nm / 1.92 ft-lb / 23 in-lb. This is barely hand-tight, but as long as the blue medium thread locker is used and correctly applied, this will hold securely and be removable.
