Rad Power Bikes

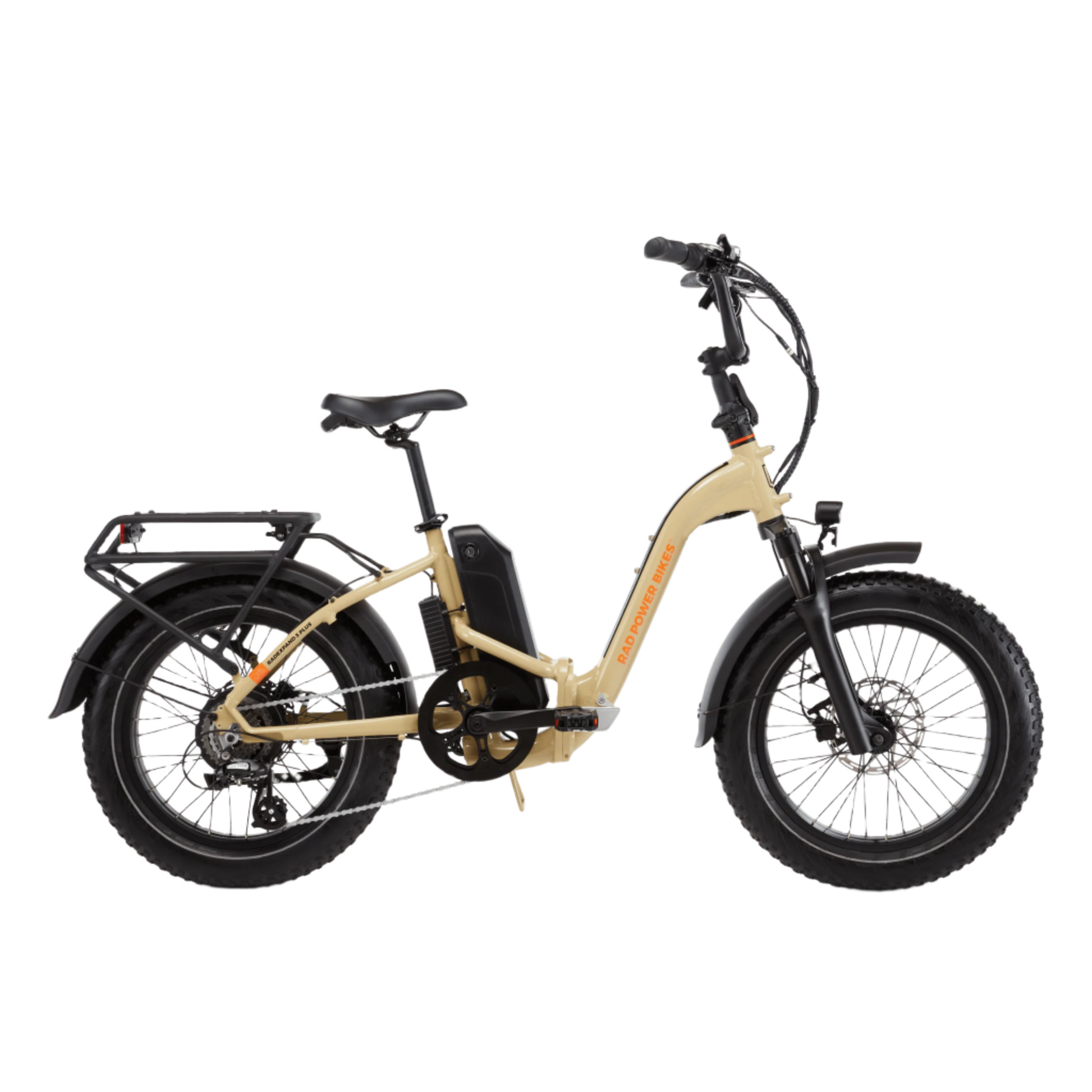

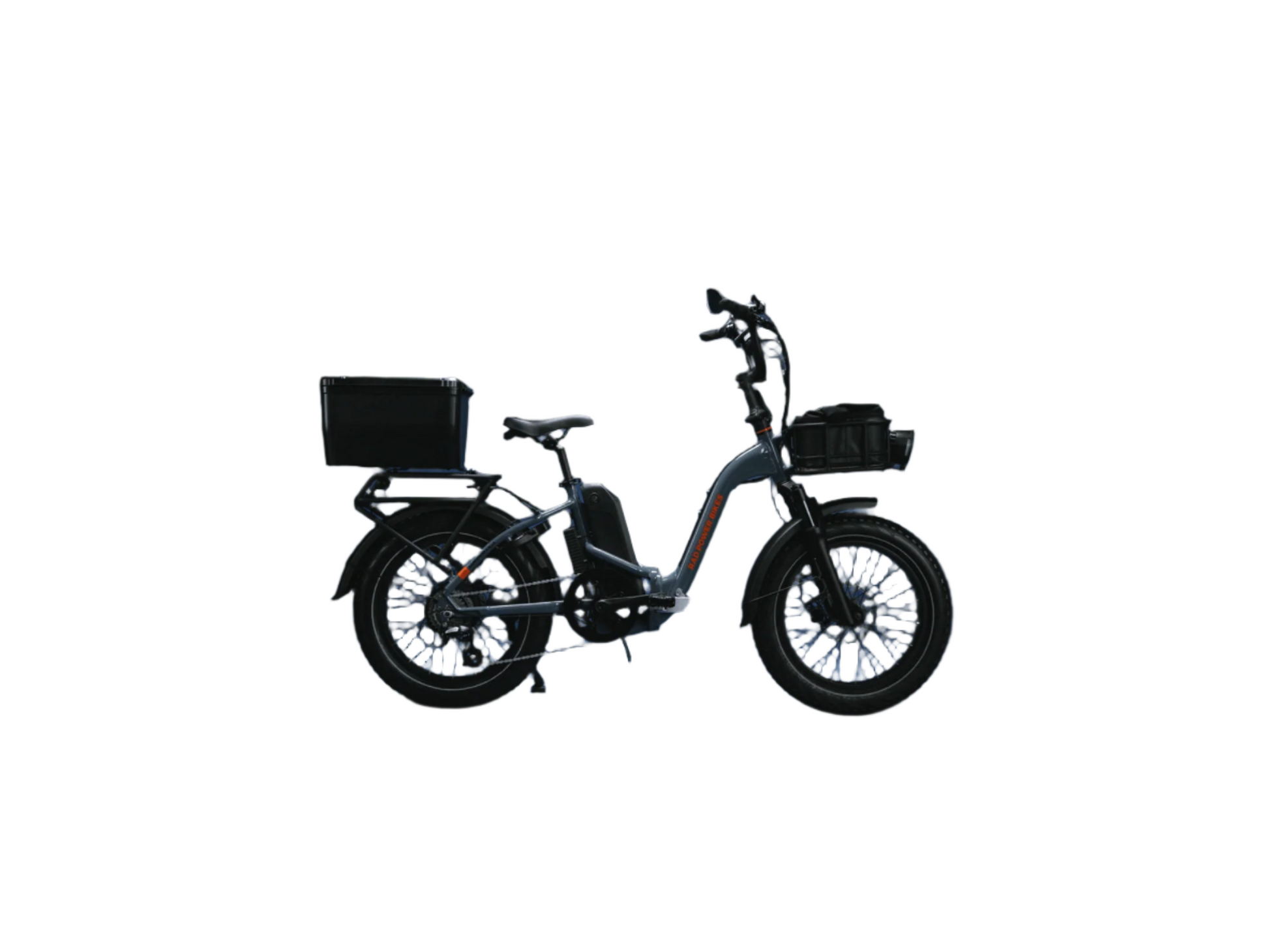

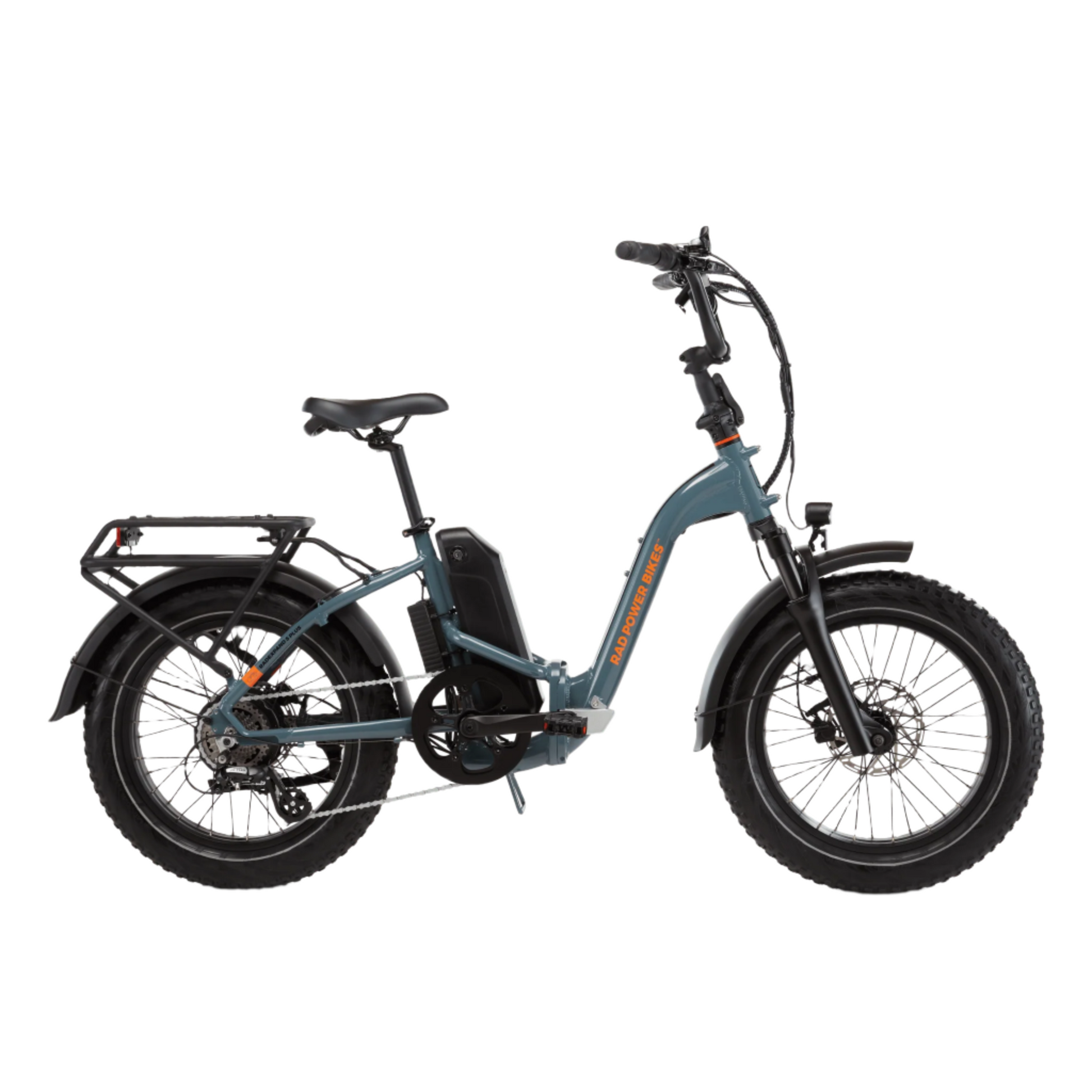

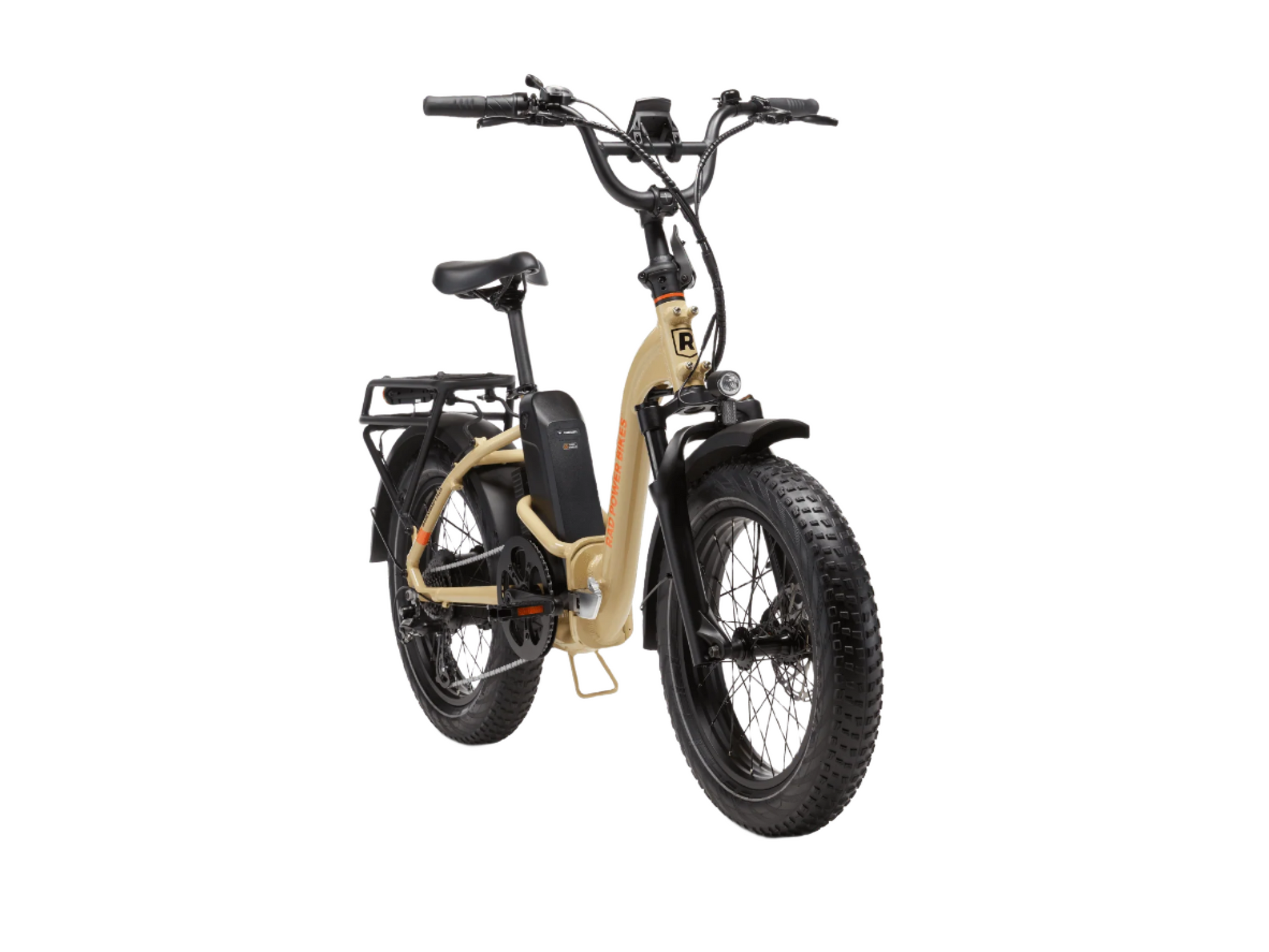

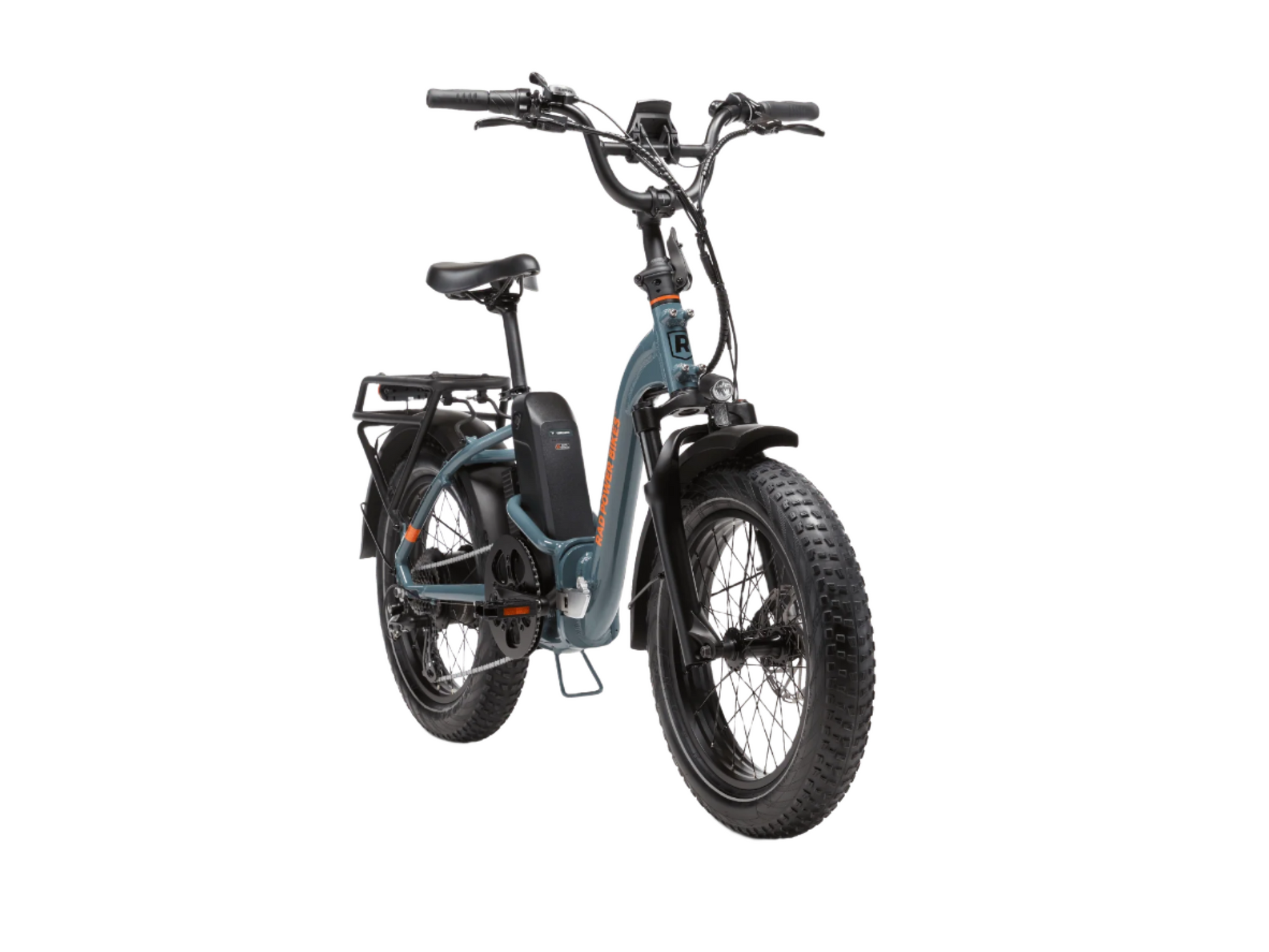

RadExpand 5 Plus Electric Folding Bike

RadExpand 5 Plus Electric Folding Bike

$1,899.00 USD
$1,899.00 USD
Sale COMING SOON
Shipping calculated at checkout.
$1,899.00 USD
Color

103-00056

The folding bike. Gone futuristic.

We’ve taken the classic RadExpand folding bike and enhanced it with all-new tech, impressive range, and a collection of features that make it more comfortable, capable, and unique. Tackle tougher terrain with a hydraulic front suspension fork, and enjoy smoother rides wherever you wander with the all-new torque sensor that responds to the way you ride.

Comfortable & versatile - Effortlessly traverse city streets, rugged trails, and steep hills. The hydraulic front suspension fork smoothes out your ride, while the responsive torque sensor delivers added power when you pedal harder.

Safety. Expanded - Whether your ebike's on the road or stowed away, the Safe Shield battery features anti-thermal technology for extra protection. And for even safer rides, the RadExpand 5 Plus boasts rear-facing turn signals and fast-acting hydraulic disc brakes.

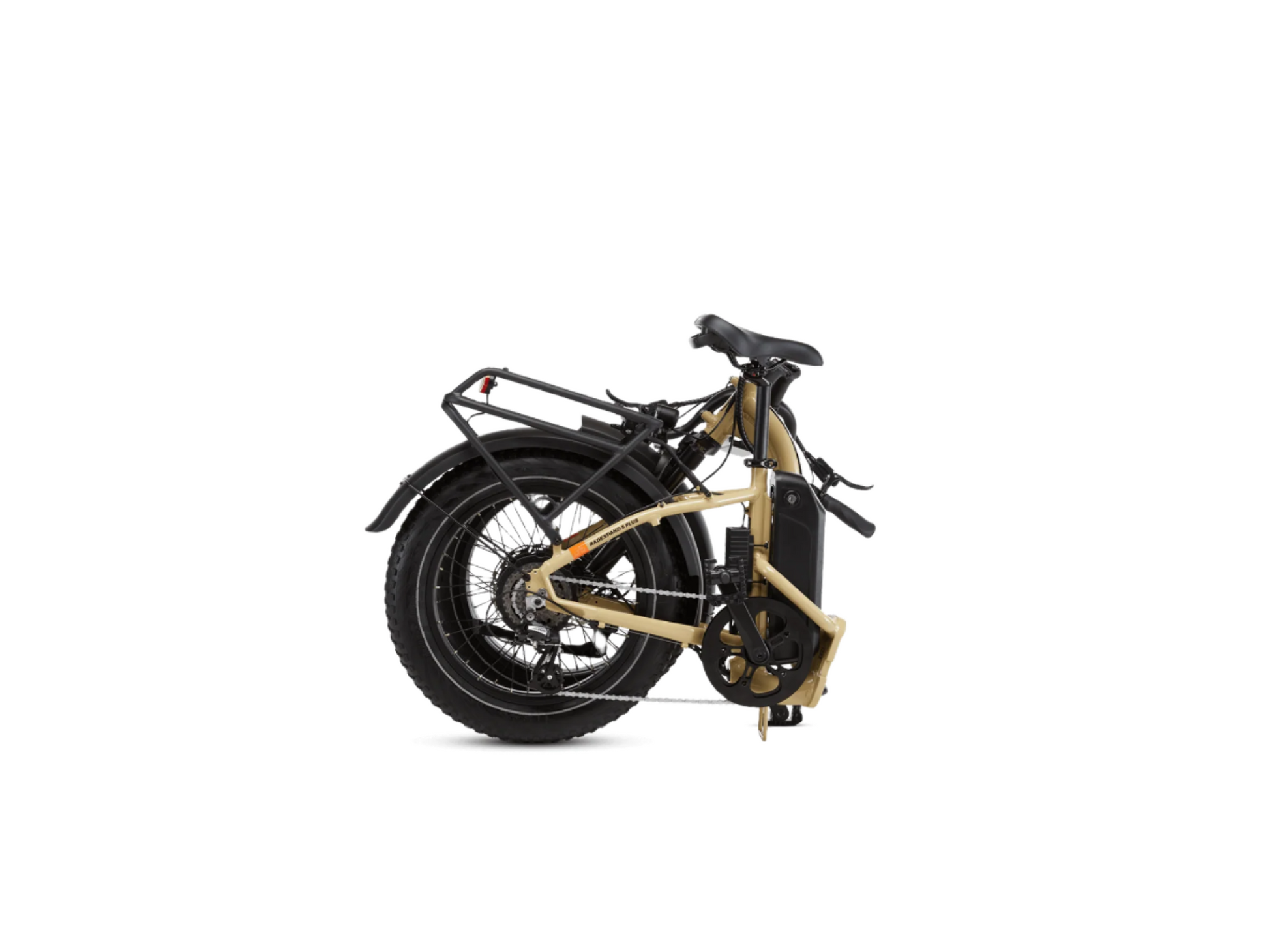

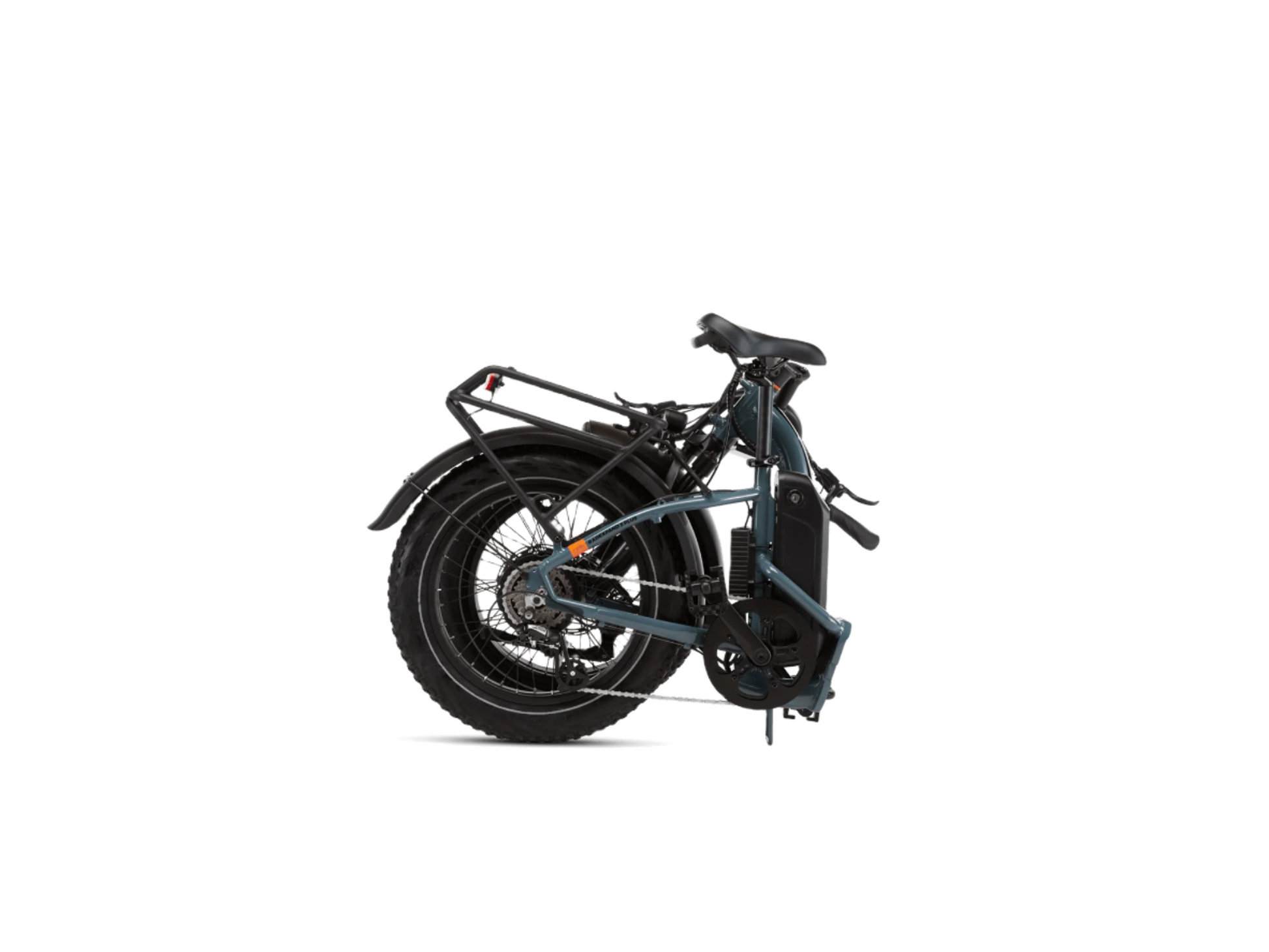

Take it anywhere - The RadExpand 5 Plus conveniently folds-up for easy storage in cramped apartments, RVs, or the trunk of your car. To save you even more space, we've equipped it with new collapsible pedals.

A tech-savvy space saver - This is our most advanced folding bike yet. Cover up to 60 miles per charge, track your stats with a full-color display, and charge your phone when you're on-the-go.

Raising the bar

All Rad ebikes are either UL Certified or tested by ACT to comply with UL 2849.



This means our bikes and electric systems have undergone rigorous testing to meet safety standards set by UL, a respected third-party organization.



Although U.S. guidelines don’t currently require ebikes to meet UL Certification, we go the extra mile to ensure our riders feel safe in the saddle.

All eyes on you

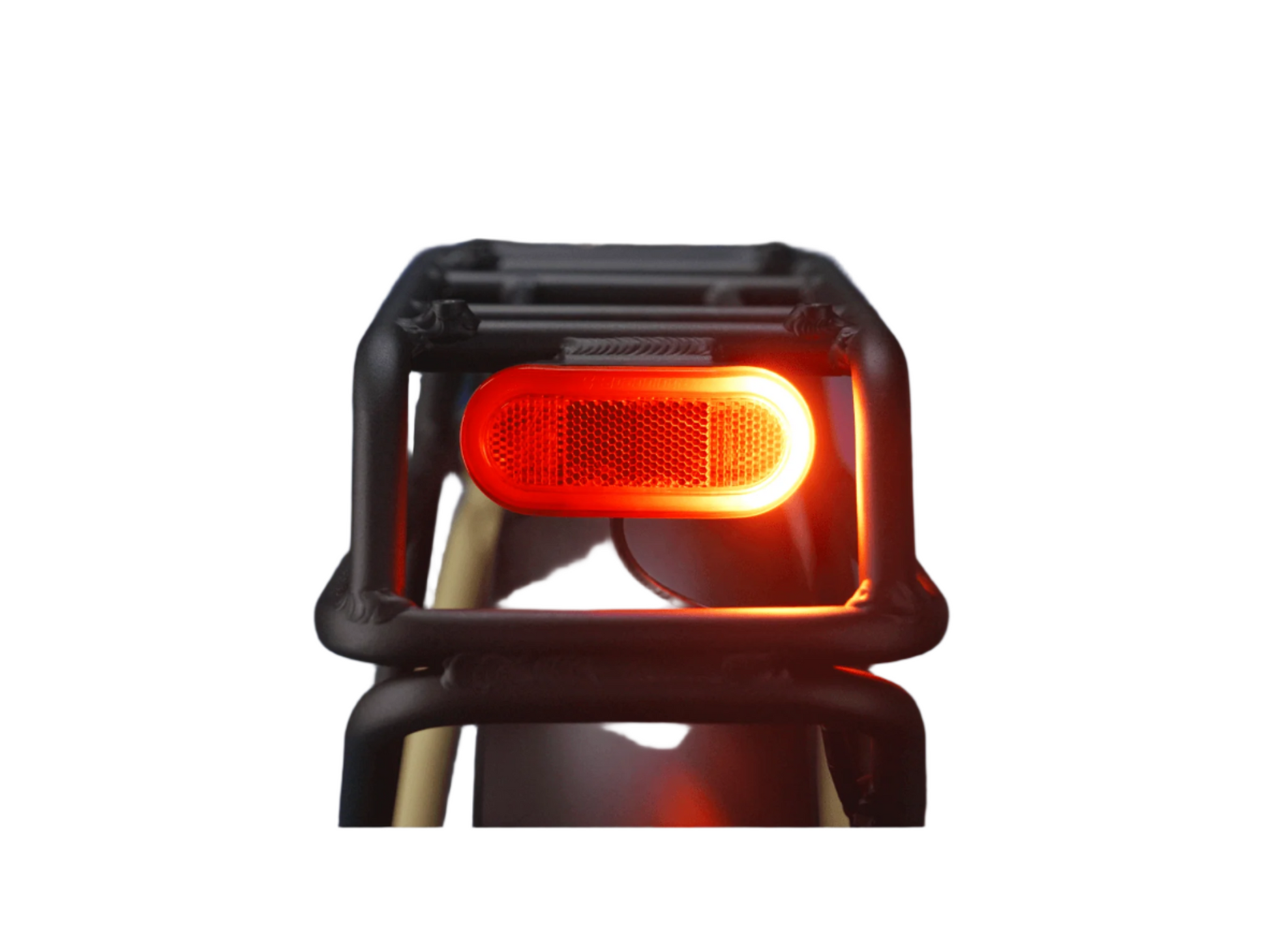

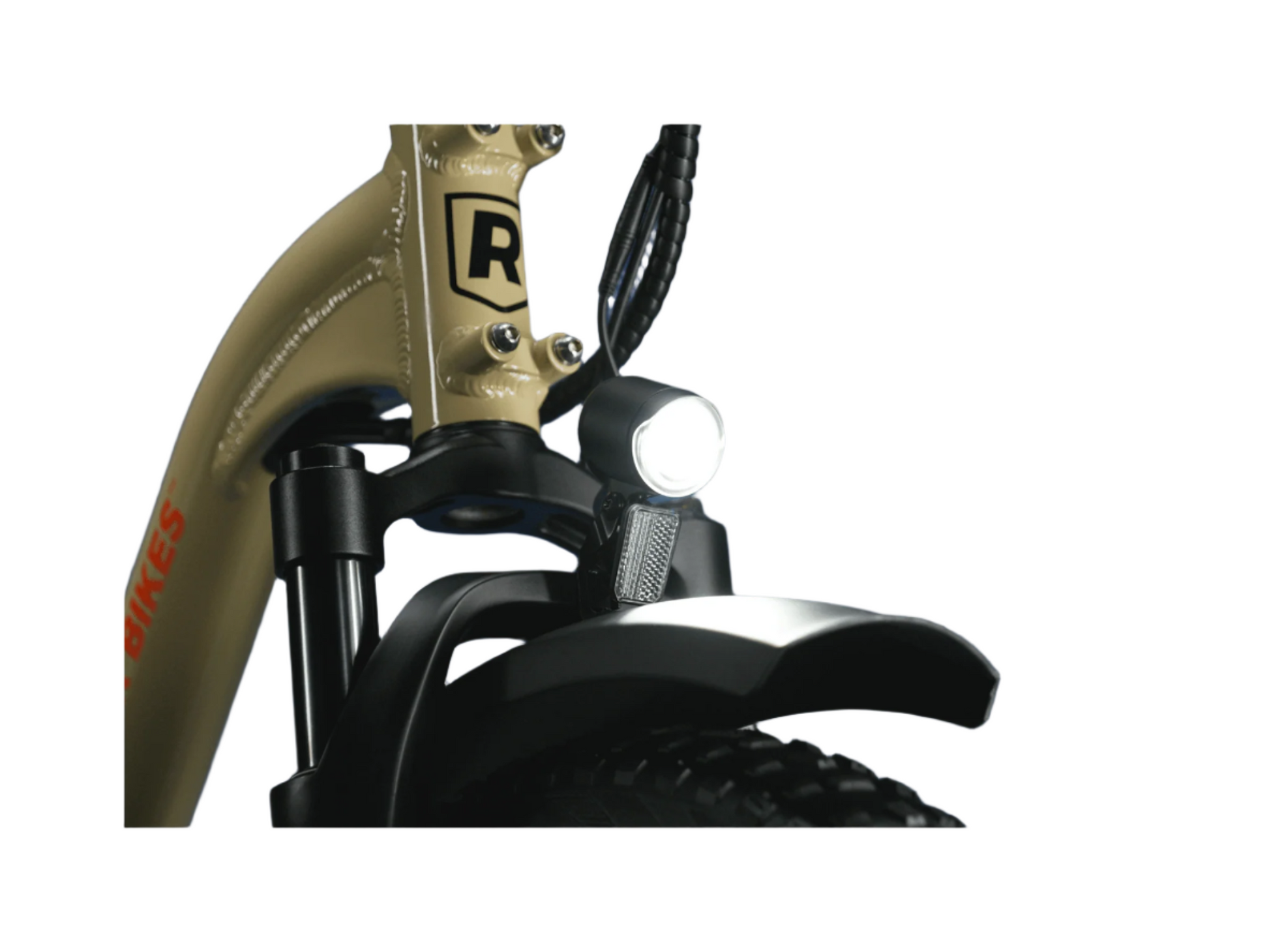

All 2024 models feature a bright 200 lumen headlight for safer night riding and dual turn signals that let cars, pedestrians, and fellow cyclists know your next move.

Ride rain or shine

This ebike is built to handle the rain. With industry-leading IPX6 weather-protection, they can withstand high-pressure, heavy water splashes. And for added safety, they’re equipped with hydraulic disc brakes to ensure all-weather stopping ability.

Reliability on wheels

Keep the ride going. This model features a bolt-on axle to ensure a strong, safe, and secure wheel system.

Electronics

  • Battery

    15Ah 720 Wh 15Ah Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL certified to UL-2271

  • Charger

    48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets

  • Class

    Class switchable between 1 and 2. Ships in Class 2 status.

  • Display

    Rad custom color display. See Display section below for details.

  • Hub Motor

    Rear hub 750W, 64 Nm torque
    Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.

  • Lights

    Auto-on feature
    Front: ~50 lumens LED headlight with built-in reflector Rear: Integrated taillight with brake light

  • Pedal Assist

    Torque sensor, 5 PAS Levels, plus a zero assist option

  • Range

    Estimated 20-60 miles per charge

  • Throttle

    Half twist throttle

  • UL Status

    UL Certified to UL 2849 and UL 2271

  • USB Ports

    One USB-C port, located on display

Batteries come with a universal key that can be used to lock and unlock the battery to your ebike. Please note that universal keys are not unique to your ebike battery and may work with a variety of locks, including on other Rad ebikes. Universal keys do not offer the highest level of security compared to dedicated or unique key locks. We do not recommend leaving your battery affixed to your ebike in public unattended as it may pose a risk of battery theft.

Components

  • Bell

    Yes

  • Brake System

    Hydraulic Disc, Gemma GA-1000B

  • Brake Pads

    Brake Pads

  • Brake Rotors

    180mm x 2.3mm

  • Crank Set

    48T with dual sided chain ring cover, 170mm crank arms

  • Derailleur

    7-Speed Shimano

  • Fenders

    Full coverage front and rear fenders

  • Fork

    Exsho STRONG-C hydraulic suspension fork, 50mm travel, bolt-on axle

  • Frame

    Aluminum

  • Freewheel/Cassette

    7-speed freewheel, 14-32T

  • Gearing

    1x7 speed

  • Grips

    Ergonomic rubber comfort grips

  • Handlebar

    Aluminum, 680 mm wide

  • Kickstand

    Side mounted, adjustable angle kickstand

  • Pedals

    Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading, folding

  • Rear Rack

    Integrated, 59 lb (27 kg) carrying capacity

  • Saddle

    Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides

  • Seatpost

    390 mm x 27.2 mm

  • Seatpost Clamp

    31.8 mm

  • Shifter

    Shimano 7-speed thumb shifter

  • Stem

    Folding stem raiser with 45mm A-Head stem

  • Tires

    CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip

Geometry

Rad Power Bikes

  • Rider Heights

    4'10"-5'10" (147-178 cm)

  • Bike Weight

    72.5 lb (32.9 kg), 62.5 lb (28.3 kg) with battery removed

  • Payload

    315 lb, 225 lb max rider weight

  • Rear Rack Payload

    59 lb (27 kg)

  • Folded Dimensions

    29"H x 25"W x 41"L

  • Handlebar Height

    43.5" (110.4 cm)

  • Reach

    17.9" (455 mm)

  • Seat Height

    From ground: 31" - 38" (78.7 - 96.5 cm)
    From pedal bottom stroke: 26" - 33" (66 - 84 cm)

  • Standover Height

    16.5" (41.9 cm)

  • Stepover Height

    16" (40.6 cm)

  • Total Length

    68" (172.7 cm)

  • Wheelbase

    44.5" (113 cm)

  • Seat Tube Length

    14.2" (360 mm)

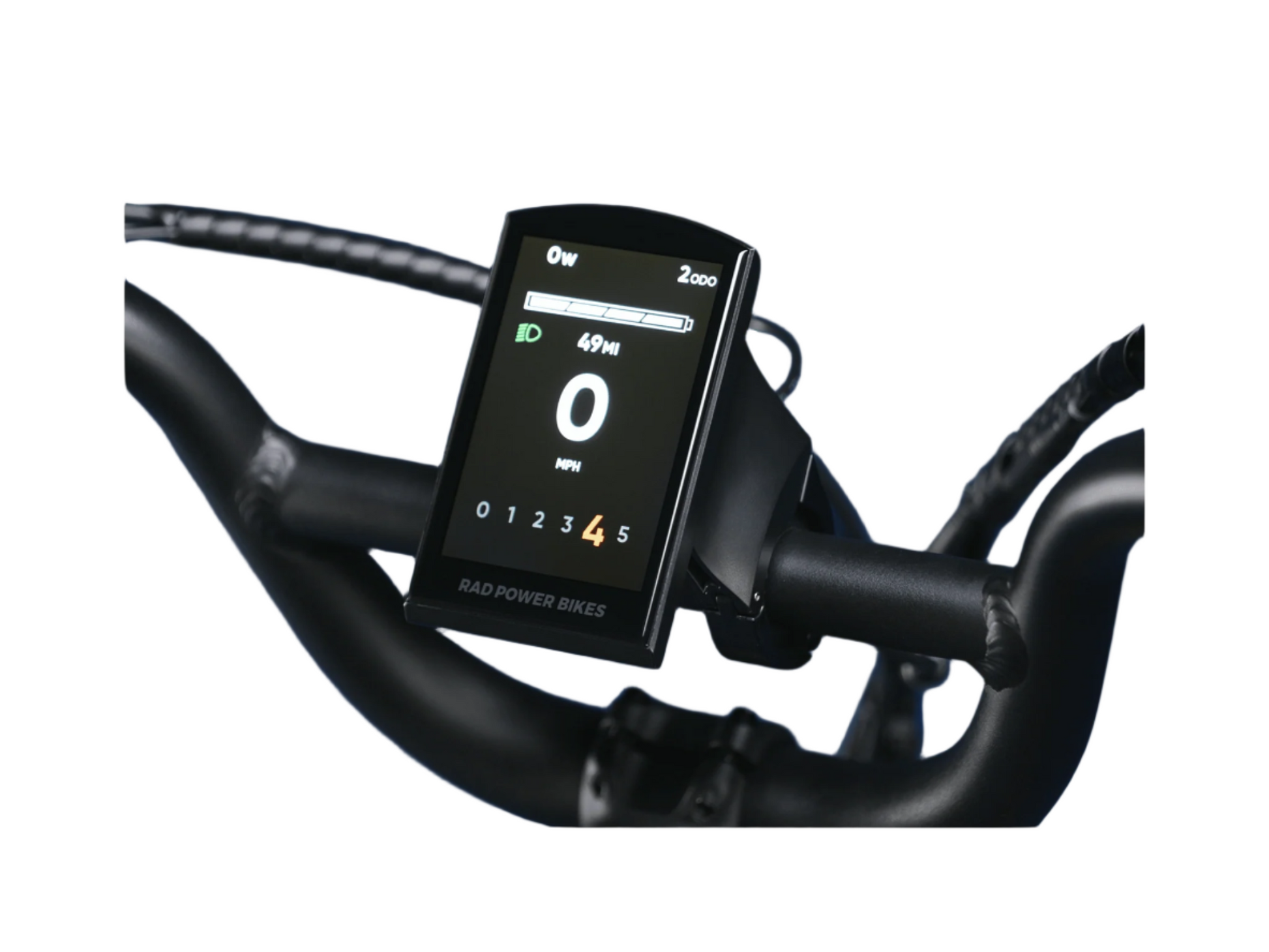

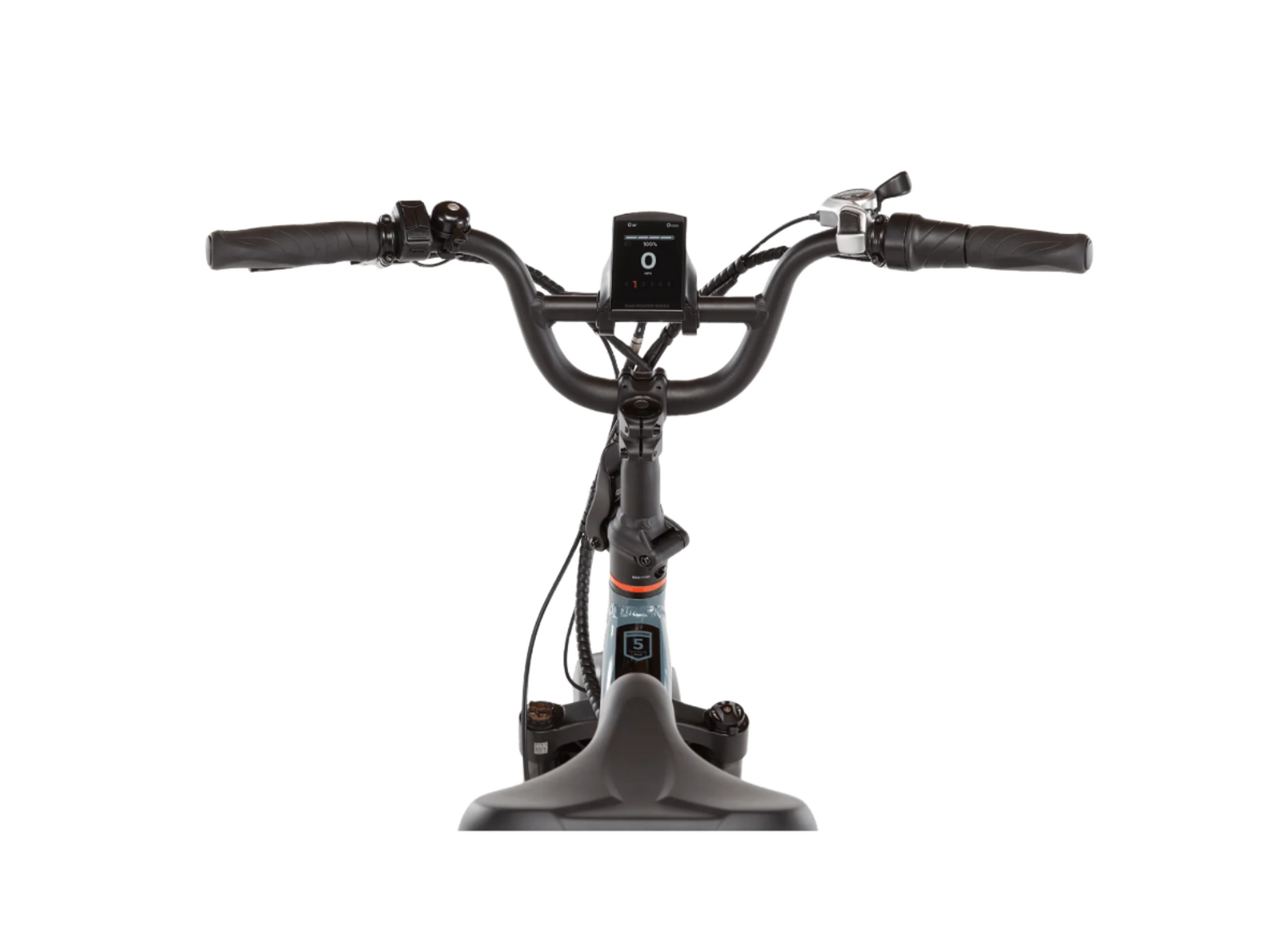

Display

  • Class level

    Choose speed settings for your ride:
    Class 1: up to 20 mph, throttle only works while pedaling.
    Class 2: up to 20 mph while pedaling or throttling.

  • Speedometer

    Fast and Curious? The speedometer will tell you your current speed.

  • Odometer

    Track the distance you’ve racked up, either by trip or through the bike’s entire lifespan.

  • Estimated remaining range

    Is it time to recharge? To help you keep track, this displays your remaining battery life in either percentage or remaining miles.

  • Trip time

    Did your trip feel like it was just half an hour, or did time fly by? This display will show you the time you spend on each outing. Be sure to reset your trip odometer before a ride you want to track.

  • Pedal assist level

    The higher the number, the more the motor will boost you when you pedal. This shows what level you’re on, from 0 to 5.

  • Motor watts

    Check out how much power the motor is supplying at any given time.

  • Headlight, tail light, and rear turn signals

    It’s always a bright idea to make sure your lights are on and operating.

    Note: Rear turn signals can be manually turned off or will turn off automatically two minutes into use.

  • USB charge indicator

    Charging your device? This will confirm if your phone (or tablet, or smartwatch, or headphones, or …) is getting the juice it needs.

Assembly

Build Difficulty: Easy

Our riders say that this model is easy to assemble, however if you want help, our ebike assembly service will have you ready-to-ride.

Warranty
