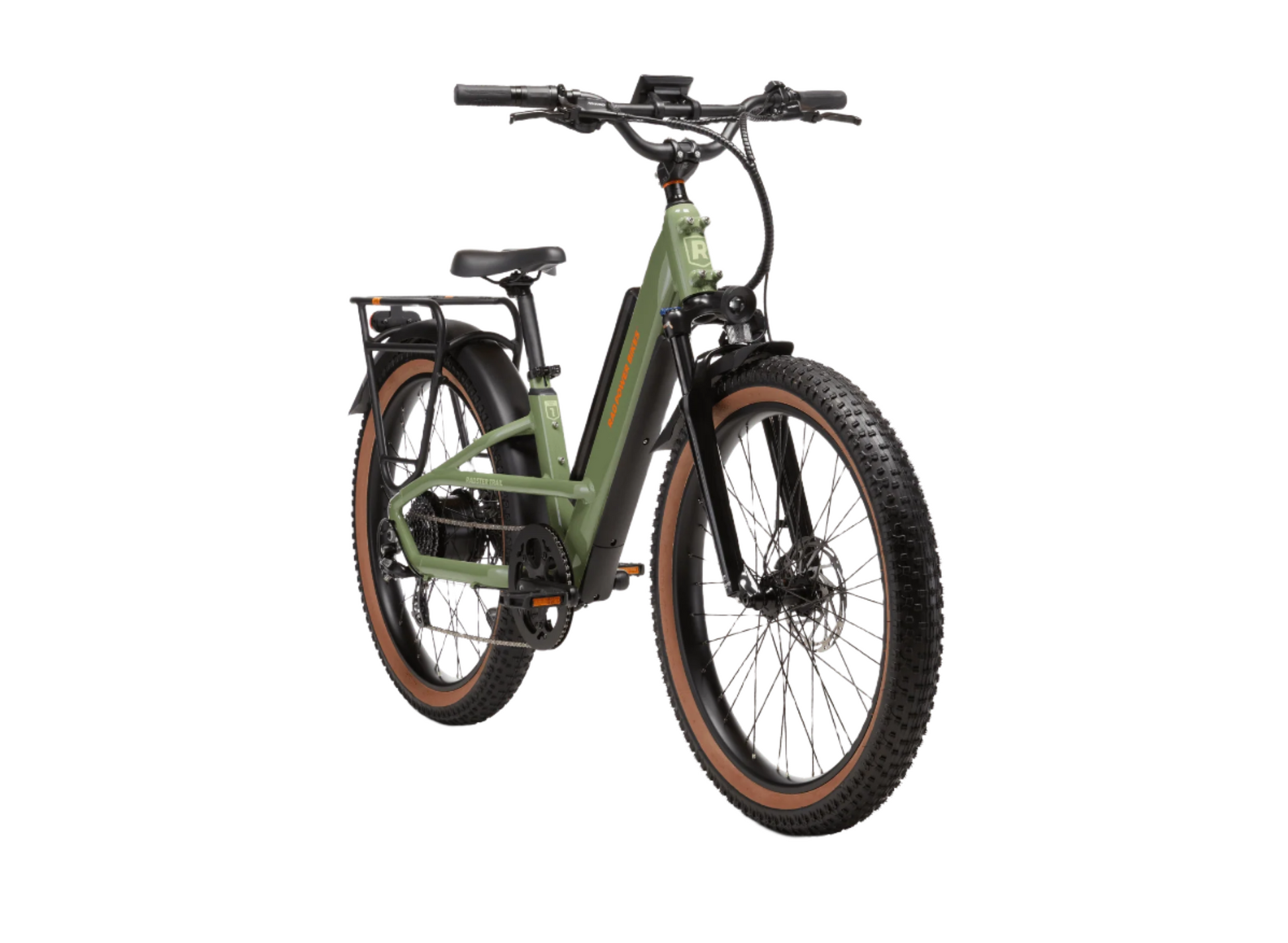

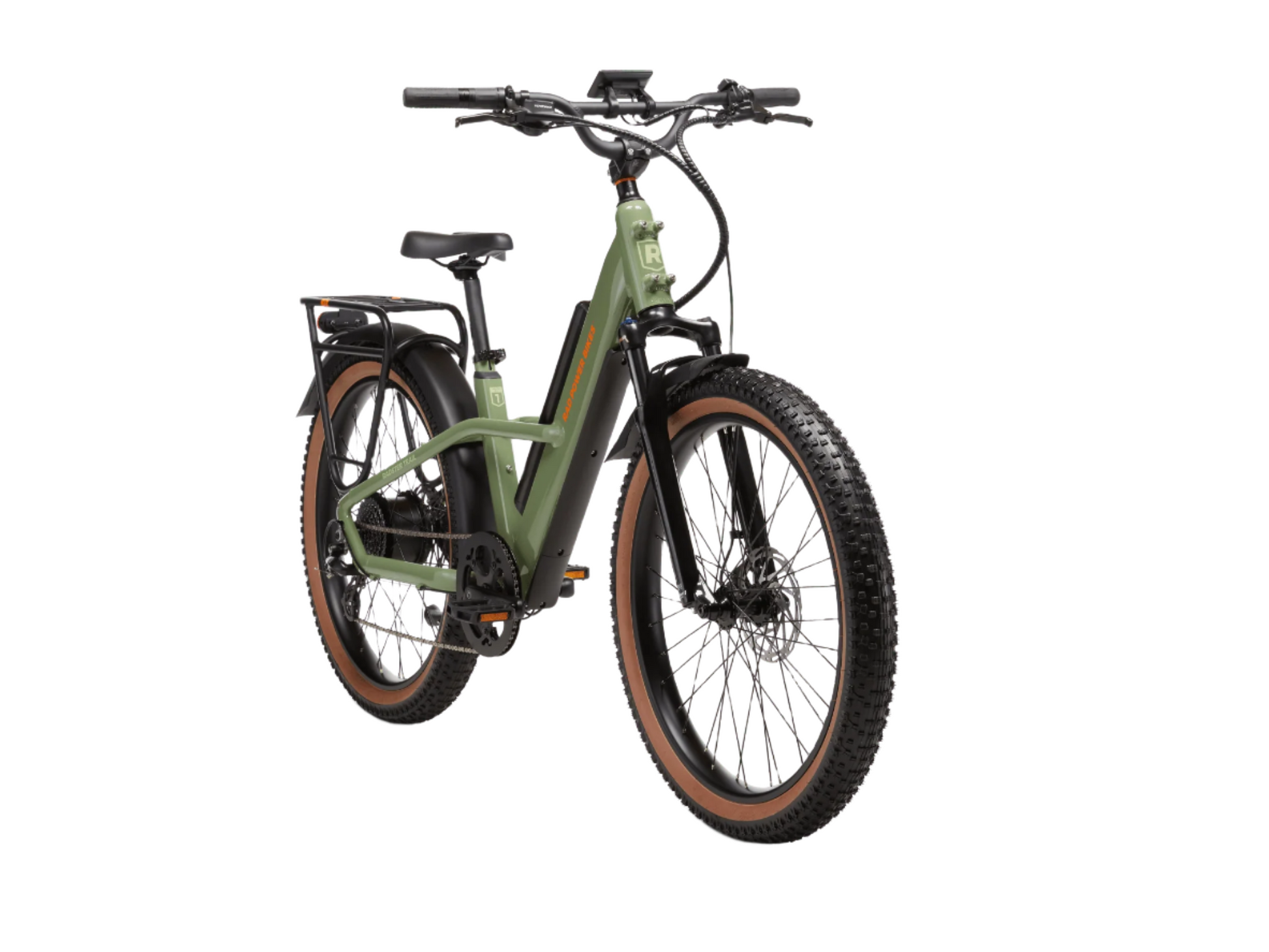

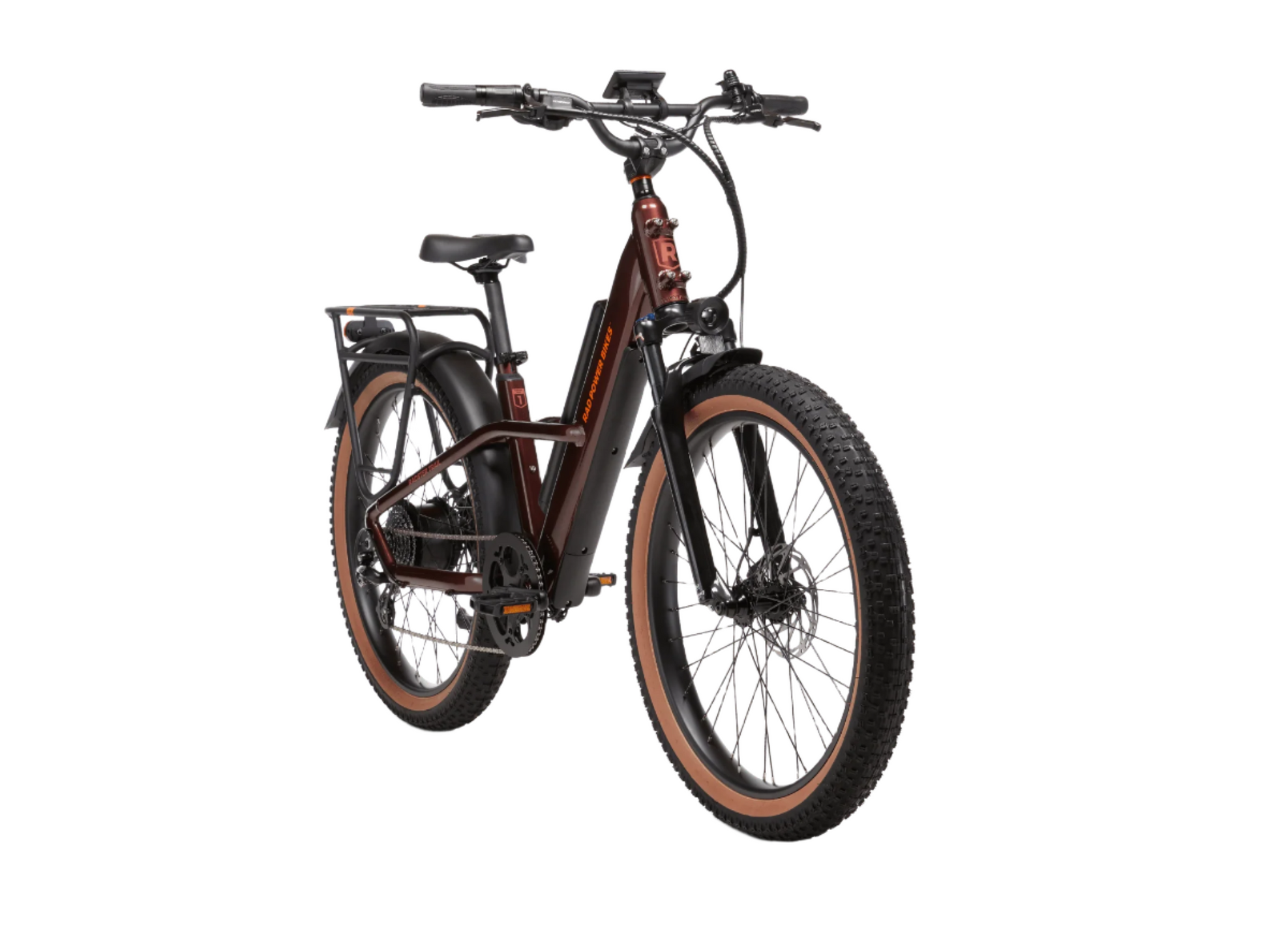

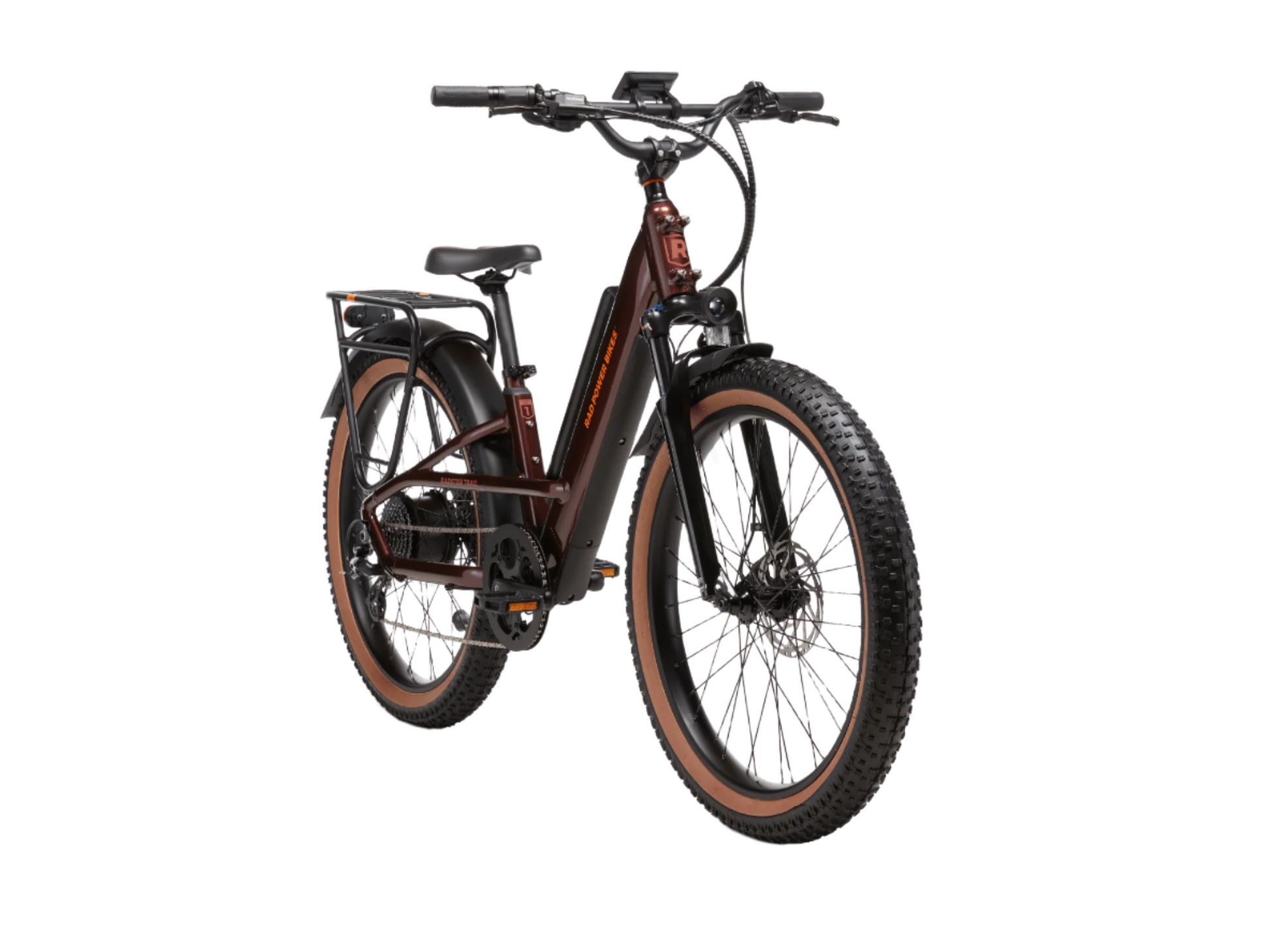

Radster Trail Electric Off-Road Bike
Radster Trail Electric Off-Road Bike
SKU:109-00005
Couldn't load pickup availability
Rugged good looks are just the beginning.
The Radster Trail is an electric off-road bike with the power to do anything, and the range to go anywhere. The 100 Nm motor makes quick work of hills, the 28 mph top speed promises fast-paced fun, and with two frame sizes for a personalized fit, it’s so comfortable that you’ll barely feel like you’re roughing it.
Feel natural - Experience smooth rides on any terrain with a torque sensor that responds to the way you pedal, added power for effortless hill climbing, and hydraulic disc brakes that bring you to a prompt, graceful stop.
Ride the way you want - Blaze your own trail. Versatile mid-fat tires glide over mountain paths and uneven pavement, while the adaptable class 1, 2, and 3 speed settings let you set your own pace. Add in its two frame sizes, and the possibilities are endless.
Rain or shine - No more rainchecks. With industry-leading IPX6 weather-protection and a brighter 200 lumen headlight, the Radster Trail is your go-to rainy day companion.
Radically safe - Stay safe in the saddle with rear-facing turn signals. When the ride's over, secure your ebike by locking the controls with a fob or personal security code. And for ultimate peace of mind, the Safe Shield battery is outfitted with thermal-resistant technology.
Raising the bar
All Rad ebikes are either UL Certified or tested by ACT to comply with UL 2849.
This means our bikes and electric systems have undergone rigorous testing to meet safety standards set by UL, a respected third-party organization.
Although U.S. guidelines don’t currently require ebikes to meet UL Certification, we go the extra mile to ensure our riders feel safe in the saddle.
All eyes on you

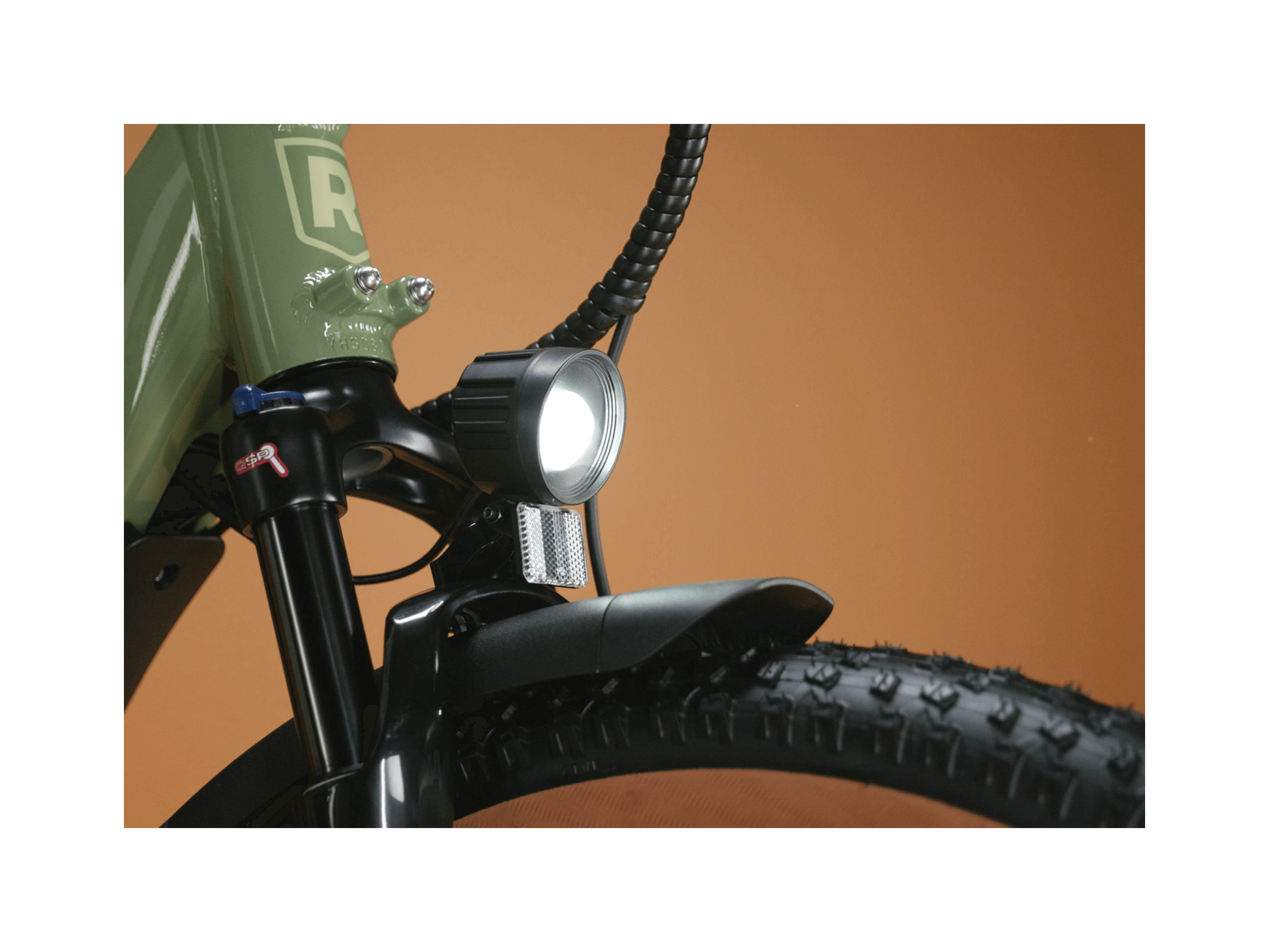

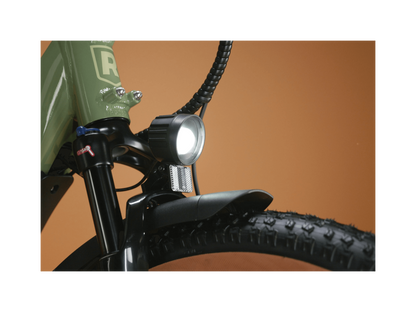

This model features a bright 200 lumen headlight for safer night riding and rear-facing turn signals that let cars, pedestrians, and fellow cyclists know your next move.
Ride rain or shine
Radster Trail is built to handle the rain. With industry-leading IPX6 weather-protection, they can withstand high-pressure, heavy water splashes. And for added safety, they’re equipped with hydraulic disc brakes to ensure all-weather stopping ability.
Reliability on wheels
Keep the ride going. This model features a thru axle to ensure a strong, safe, and secure wheel system.
Electronics
-
Battery
15Ah 720 Wh Safe Shield Advanced Semi-Integrated Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271
-
Charger
48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
-
Class
Class switchable 1 to 3. Ships in Class 2 status.
-
Display
Rad custom color display. See Display section below for details.
-
Hub Motor
Rear hub 750W, 100 Nm torque
Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions. -
Lights
Auto-on feature
Front: 450 lumens LED headlight with built-in reflector

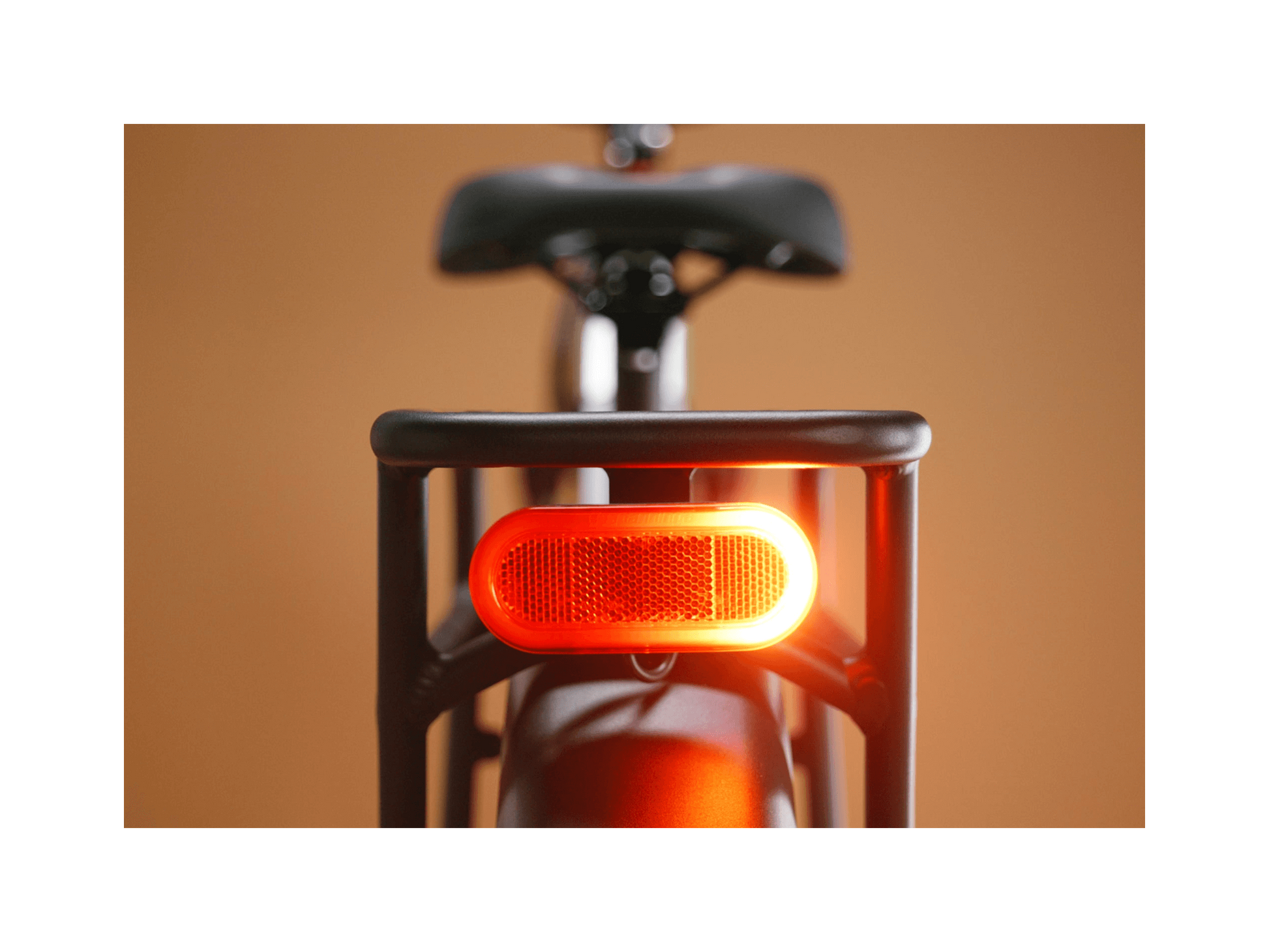

Rear: Integrated taillight with brake light and turn signals -
Pedal Assist
Torque sensor, 5 PAS Levels, plus a zero assist option
-
Range
Estimated 25-65 miles per charge
-
Throttle
Half twist throttle
-
UL Status
UL Certified to UL 2849 and UL 2271
-
USB Ports
One USB-C port, located on remote
Components
-
Bell
Yes
-
Brake System
Rad Power Bikes approved hydraulic disc brakes
-
Brake Pads
Tektro semi-metallic P20.11
-
Brake Rotors
180mm x 1.8mm
-
Crank Set
50T with dual sided chain ring cover, 170mm crank arms
-
Derailleur
Shimano 8-speed
-
Fenders
Front and full rear alloy mudguard
-
Fork
Hydraulic suspension fork, 80mm travel, tapered steerer tube, thru axle
-
Frame
Aluminum
-
Freewheel/Cassette
8-speed freewheel, 11-34T
-
Gearing
1x8 speed
-
Grips
Ergonomic comfort grips
-
Handlebar
Aluminum, 710 mm wide
-
Kickstand
Side mounted, adjustable angle kickstand
-
Pedals
Alloy Platform, Boron axle with reflectors, standard 9/16" X 20 TPI threading
-
Rear Rack
Integrated, 55 lb (25 kg) carrying capacity
-
Saddle
Padded sport saddle with shallow anatomic cut-out and contoured sides
-
Seatpost
Regular: 350 mm x 31.6 mm
Large: 400 mm x 31.6 mm -
Seatpost Clamp
38.1 mm
-
Shifter
Shimano 8-speed thumb shifter
-
Stem
40mm A-head
-
Tires
Kenda Havok 27.5" X 3.0" with puncture protection and tan sidewall
Geometry

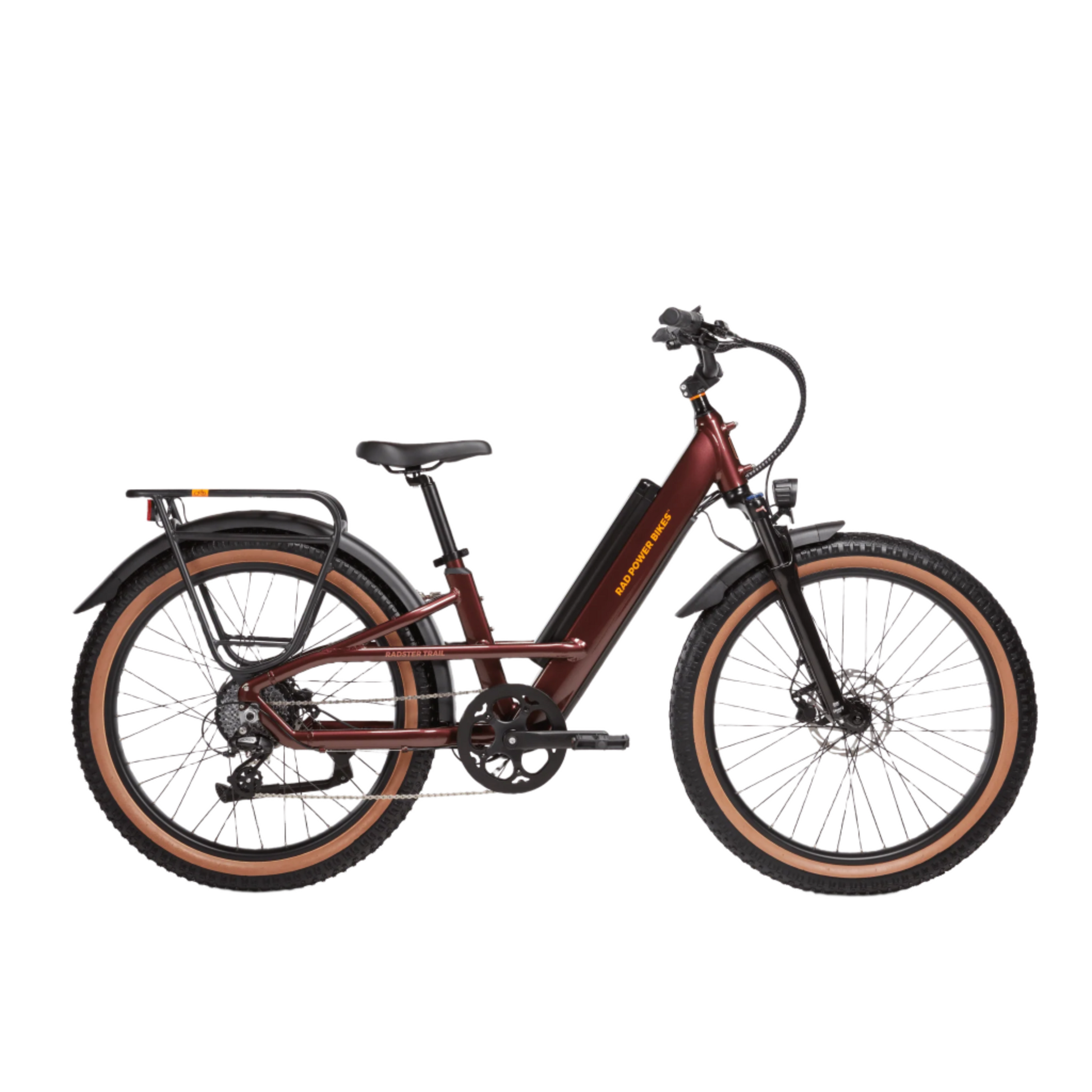

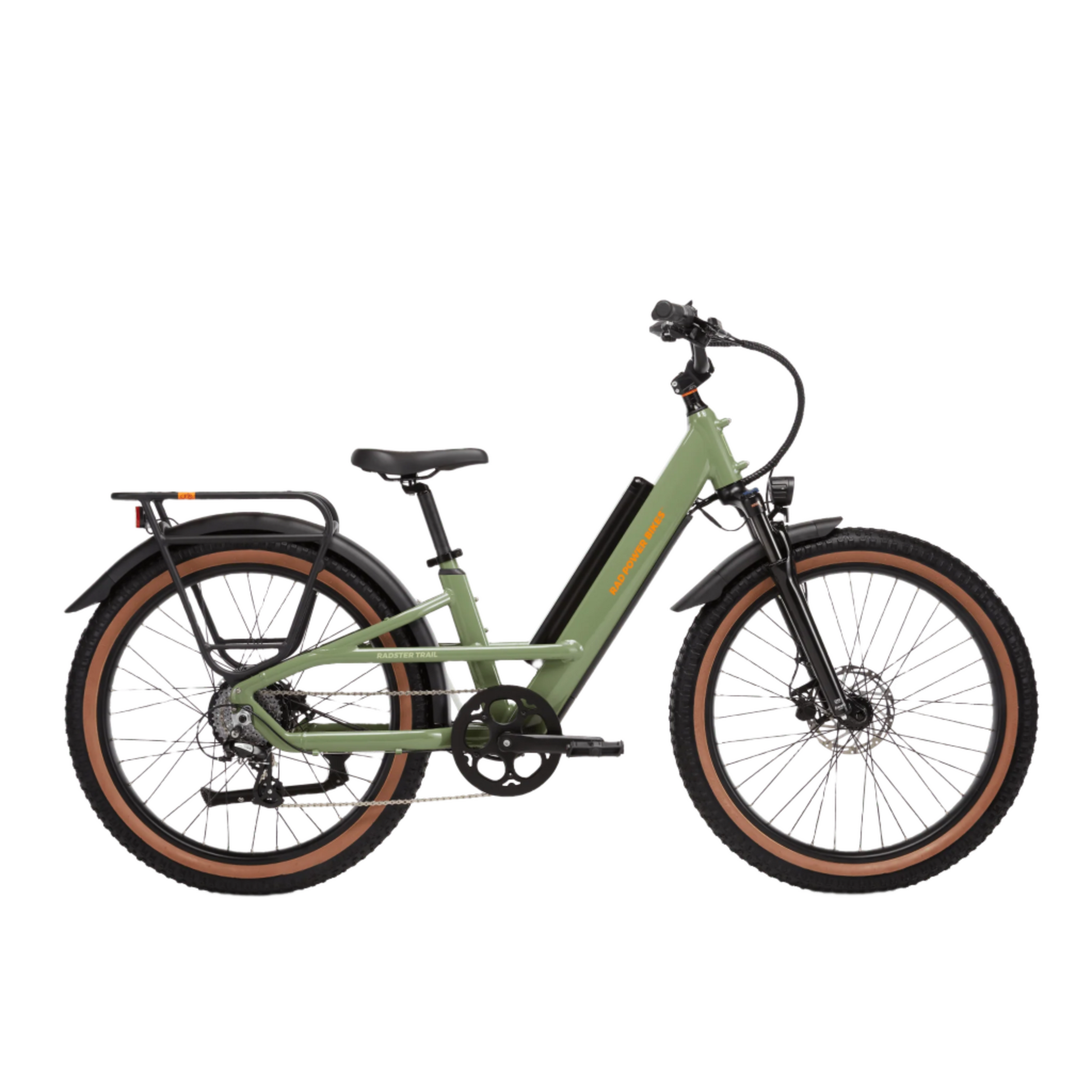

REGULAR
-
Rider Heights
4'11"-5'8" (150-173 cm)
-
Bike Weight
77.5 lb (35.2 kg), 68.5 lb (31.1 kg) with battery removed
-
Payload
370 lb, 290 lb. max rider
-
Rear Rack Payload
55 lb (25 kg)
-
Handlebar Height
44.5" (113.0 cm)
-
Reach
15.2" (386 mm)
-
Seat Height
From ground: 30.5" - 37.5" (78.7 - 95.3 cm)
From pedal bottom stroke: 25" - 33" (64 - 84 cm) -
Standover Height
21" (53.3 cm)
-
Stepover Height
20" (50.8 cm)
-
Total Length
74" (188 cm)
-
Wheelbase
46.6" (118.3 cm)
-
Seat Tube Length
15.0" (380 mm)

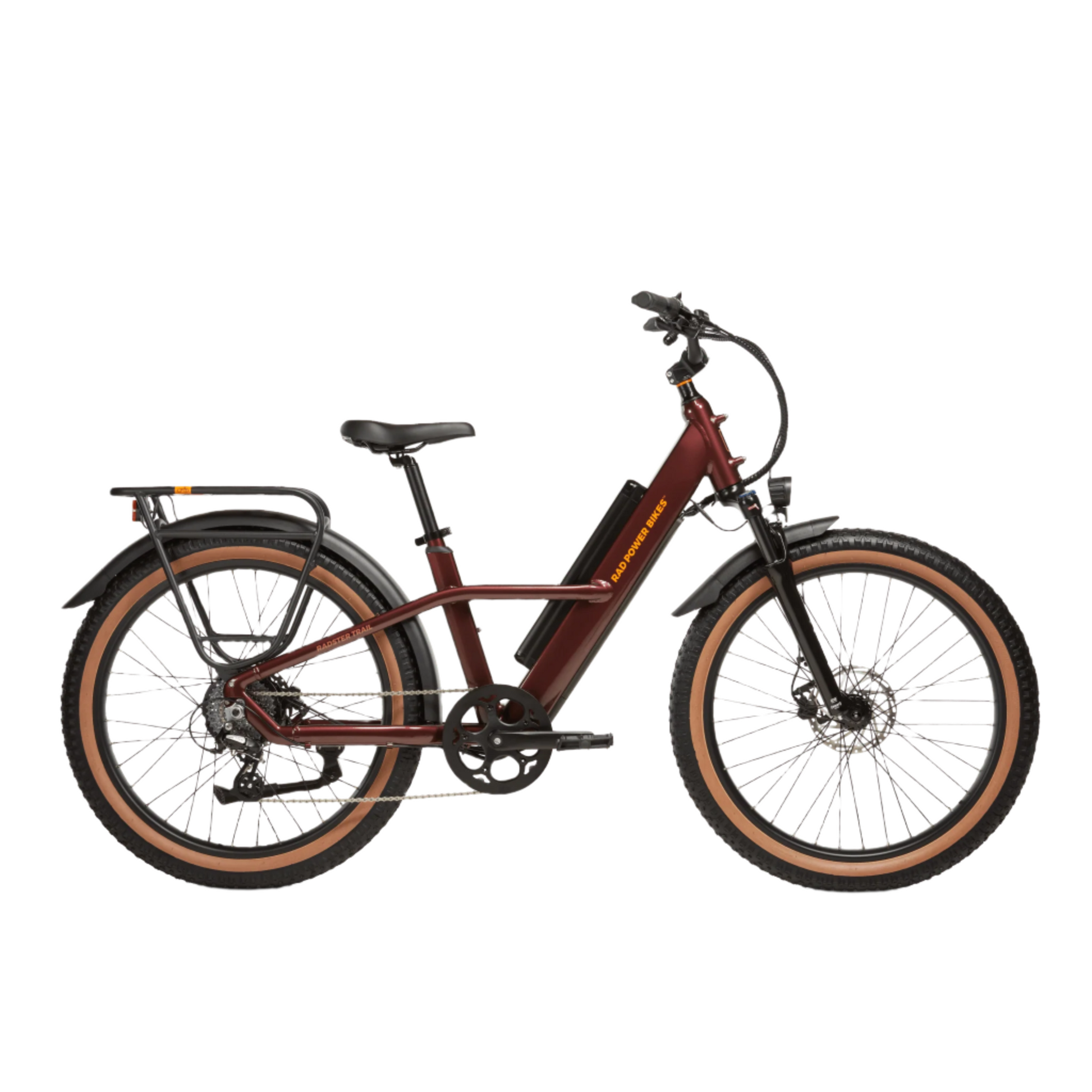

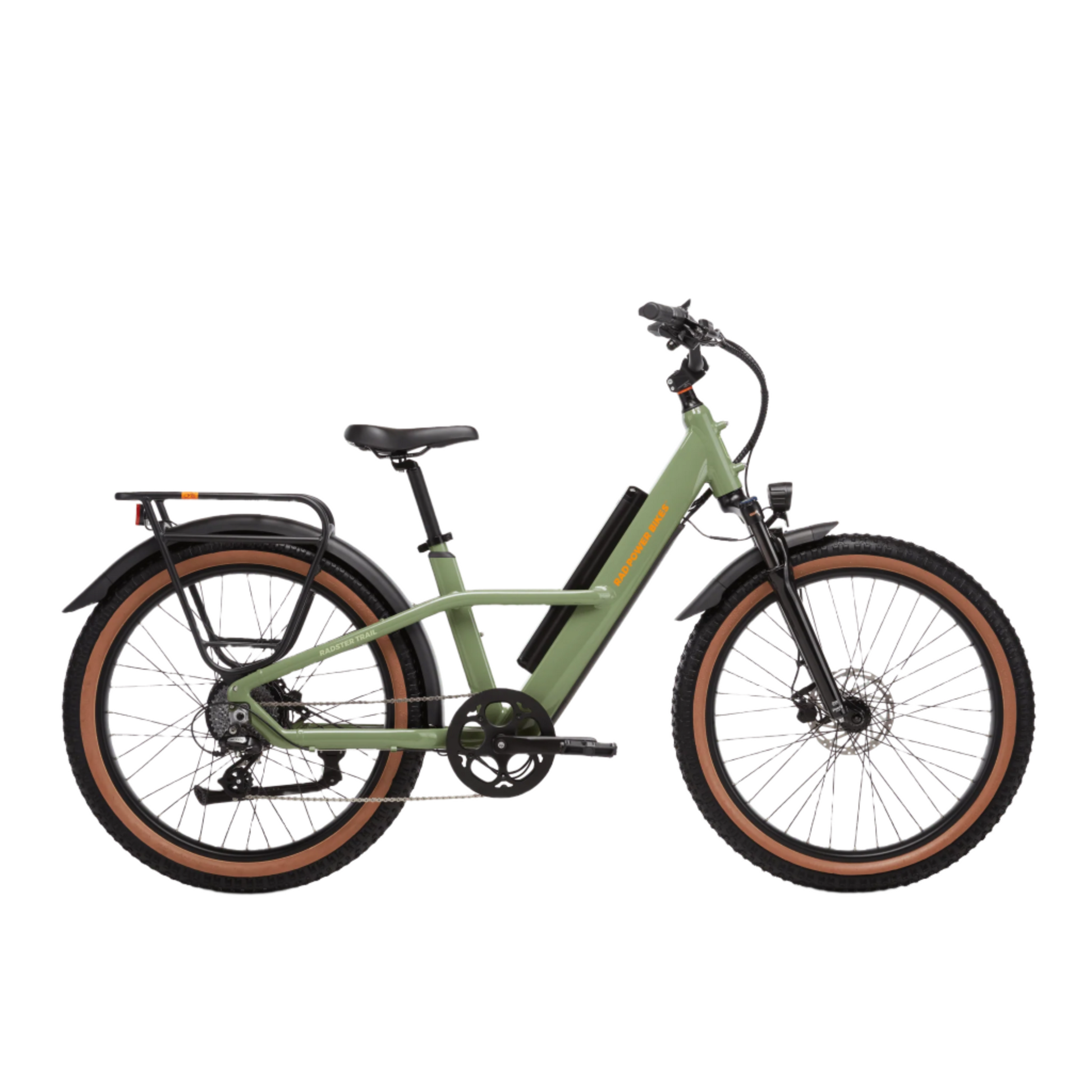

LARGE
-
Rider Heights
5'7"-6'4" (170-193 cm)
-
Bike Weight
78 lb (35.4 kg), 69 lb (31.3 kg) with battery removed
-
Payload
370 lb, 290 lb. max rider
-
Rear Rack Payload
55 lb (25 kg)
-
Handlebar Height
45.25" (114.9 cm)
-
Reach
15.6" (397 mm)
-
Seat Height
From ground: 31.5" - 39" (80 - 99 cm)
From pedal bottom stroke: 27" - 35" (69 - 89 cm -
Standover Height
24" (61 cm)
-
Stepover Height
24" (61 cm)
-
Total Length
76" (193 cm)
-
Wheelbase
47.4" (120.3 cm)
-
Seat Tube Length
16.8" (426 mm)
Assembly
Build Difficulty: Hard
Leave it to the pros, we highly recommend our ebike assembly service to get you ready-to-ride.

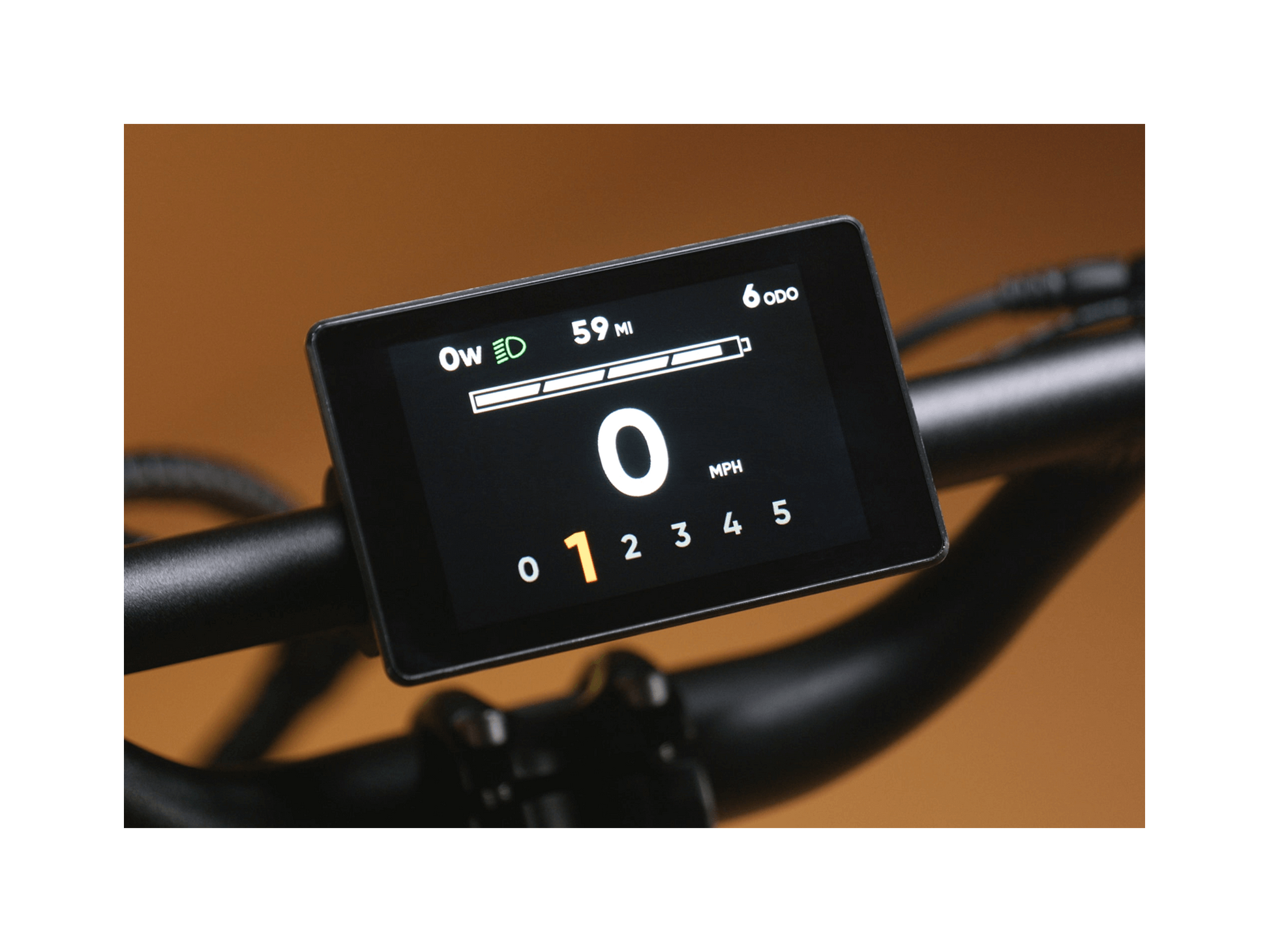

Display
-
Class level
Choose speed settings for your ride:
Class 1: up to 20 mph, throttle only works while pedaling.
Class 2: up to 20 mph while pedaling or throttling.
Class 3, Limited: up to 25 mph while pedaling.
Class 3: up to 28 mph while pedaling.
Remember: adhere to posted speed limits and check local regulations for any speed or ebike class restrictions on the road or trail you're using. -
Control lock
For an extra layer of security, lock and unlock the controls with the touch of a fob or a personal security code
-
Speedometer
Fast and Curious? The speedometer will tell you your current speed.
-
Odometer
Track the distance you’ve racked up, either by trip or through the bike’s entire lifespan.
-
Estimated remaining range
Is it time to recharge? To help you keep track, this displays your remaining battery life in either percentage or remaining miles.
-
Trip time
Did your trip feel like it was just half an hour, or did time fly by? This display will show you the time you spend on each outing. Be sure to reset your trip odometer before a ride you want to track.
-
Pedal assist level
The higher the number, the more the motor will boost you when you pedal. This shows what level you’re on, from 0 to 5.
-
Motor watts
Check out how much power the motor is supplying at any given time.
-
Headlight, tail light, and rear turn signals
It’s always a bright idea to make sure your lights are on and operating.
Note: Rear turn signals can be manually turned off or will turn off automatically two minutes into use -
USB charge indicator
Charging your device? This will confirm if your phone (or tablet, or smartwatch, or headphones, or …) is getting the juice it needs.
