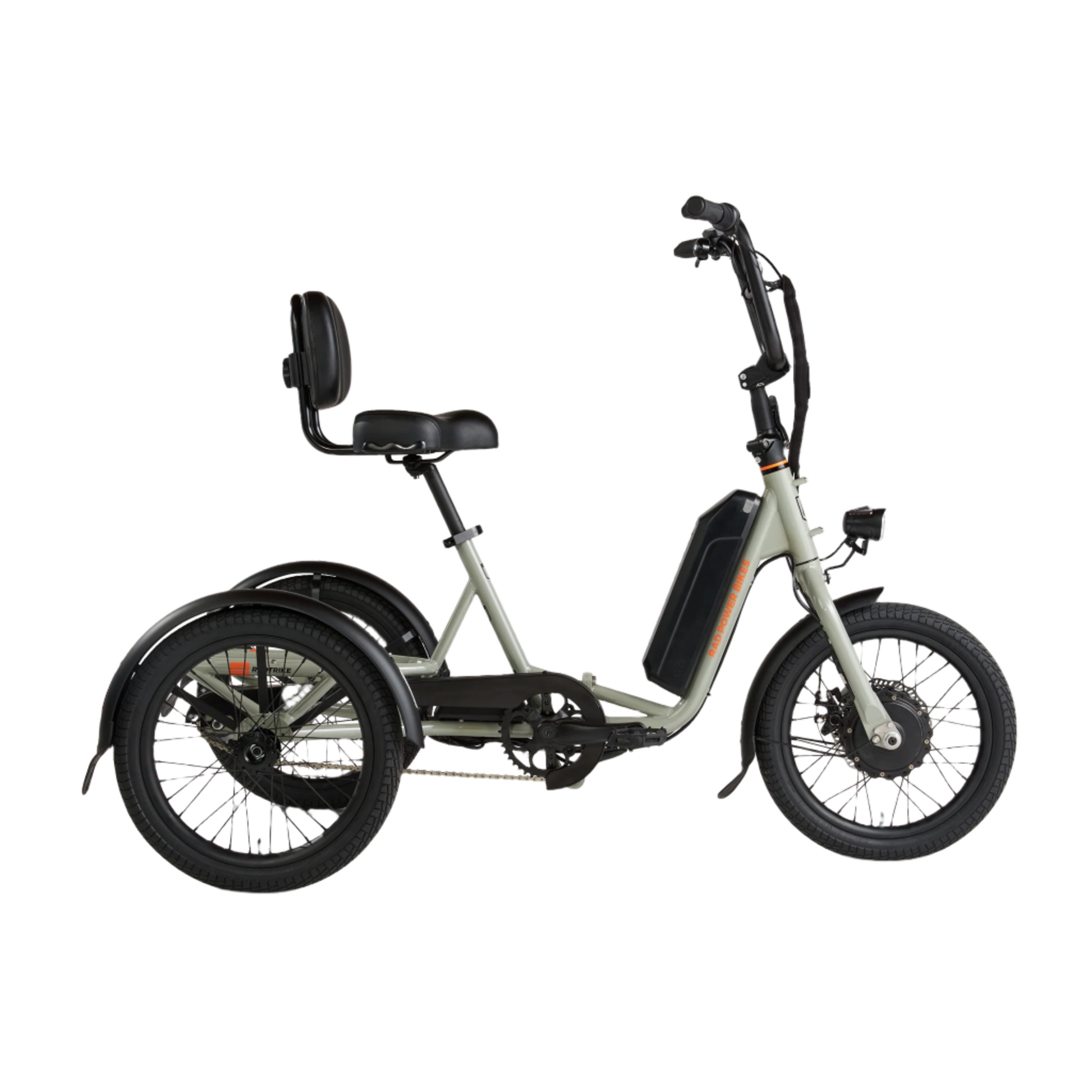

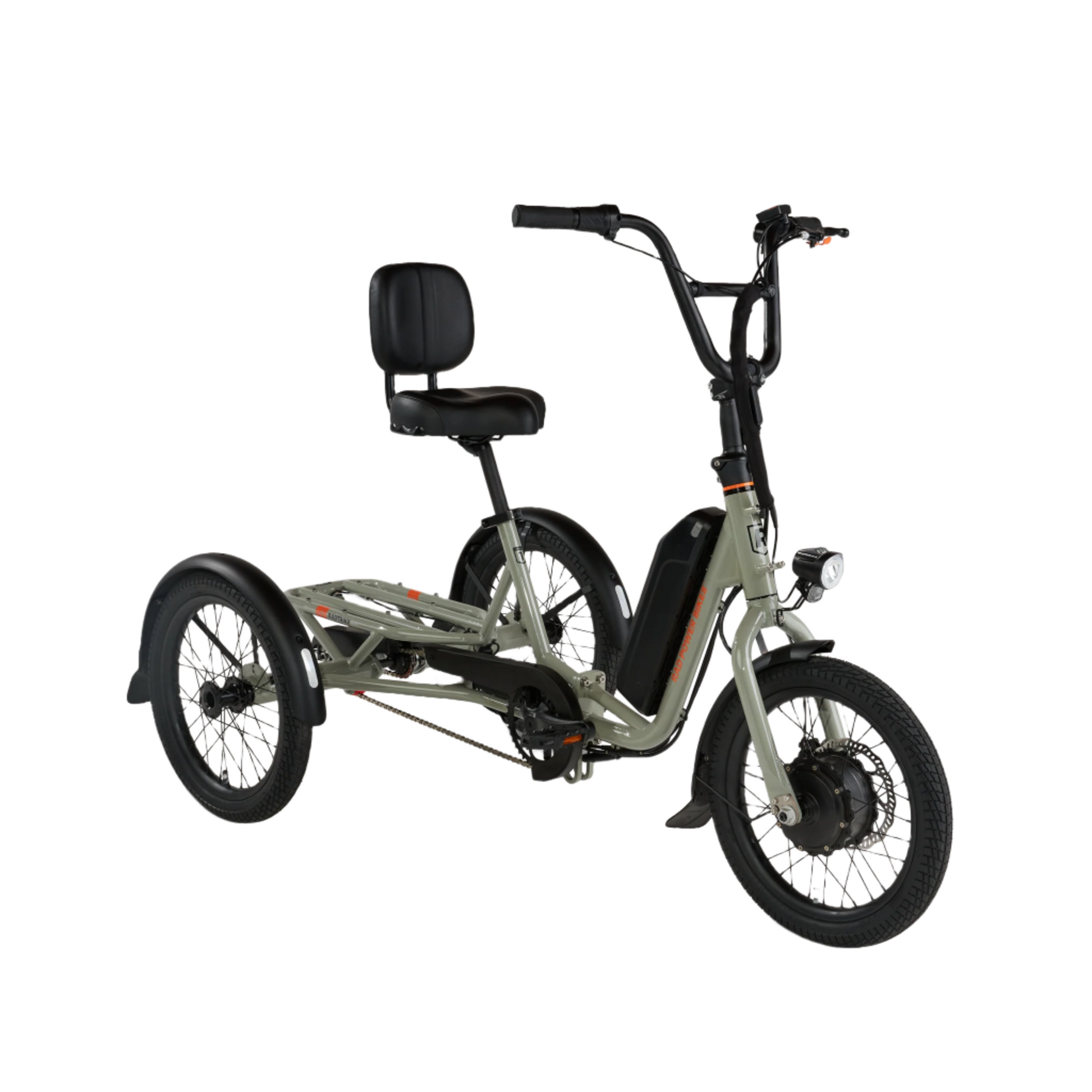

RadTrike Electric Tricycle

An ergonomic experience - Don't worry about hoisting your legs. The step-thru frame makes it easy to get on, while the extra-cushioned saddle and backrest adjust for a tailor-made fit.

Safe, nimble handling - The RadTrike can safely maneuver curves, fit through most doorways, and go in reverse with just the touch of a button. For even greater peace of mind, it's our first model to feature a parking brake.

Let it do the heavy lifting - Hauling beach gear? BBQ supplies? A cooler filled with your favorite drinks? Whatever your trip calls for, you can rely on an industry-leading 415 lb payload capacity.

Designed with convenience in mind - We engineered the RadTrike for faster, easier assembly, and added a fold-down handlebars for more efficient transportation and storage.

We go the extra mile. All Rad ebikes are either UL Certified or tested by ACT to comply with UL 2849.



This means our bikes and electric systems have undergone rigorous testing to meet safety standards set by UL, a respected third-party organization.



Although U.S. guidelines don’t currently require ebikes to meet UL Certification, we go the extra mile to ensure our riders feel safe in the saddle.

See and be seen. Safety is paramount to Rad engineers. Reflective striping is incorporated on tire sidewalls, plus LED headlights and taillights come standard on every model.

Precision in practice. Every ebike receives a thorough 50-point inspection before it reaches your door. How in-depth is it? Even the screws are double-checked.

Brake confidently in any weather conditions. Ride rain or shine. Every ebike comes with brakes tested for all-weather stopping ability.

Specifications

Electronics

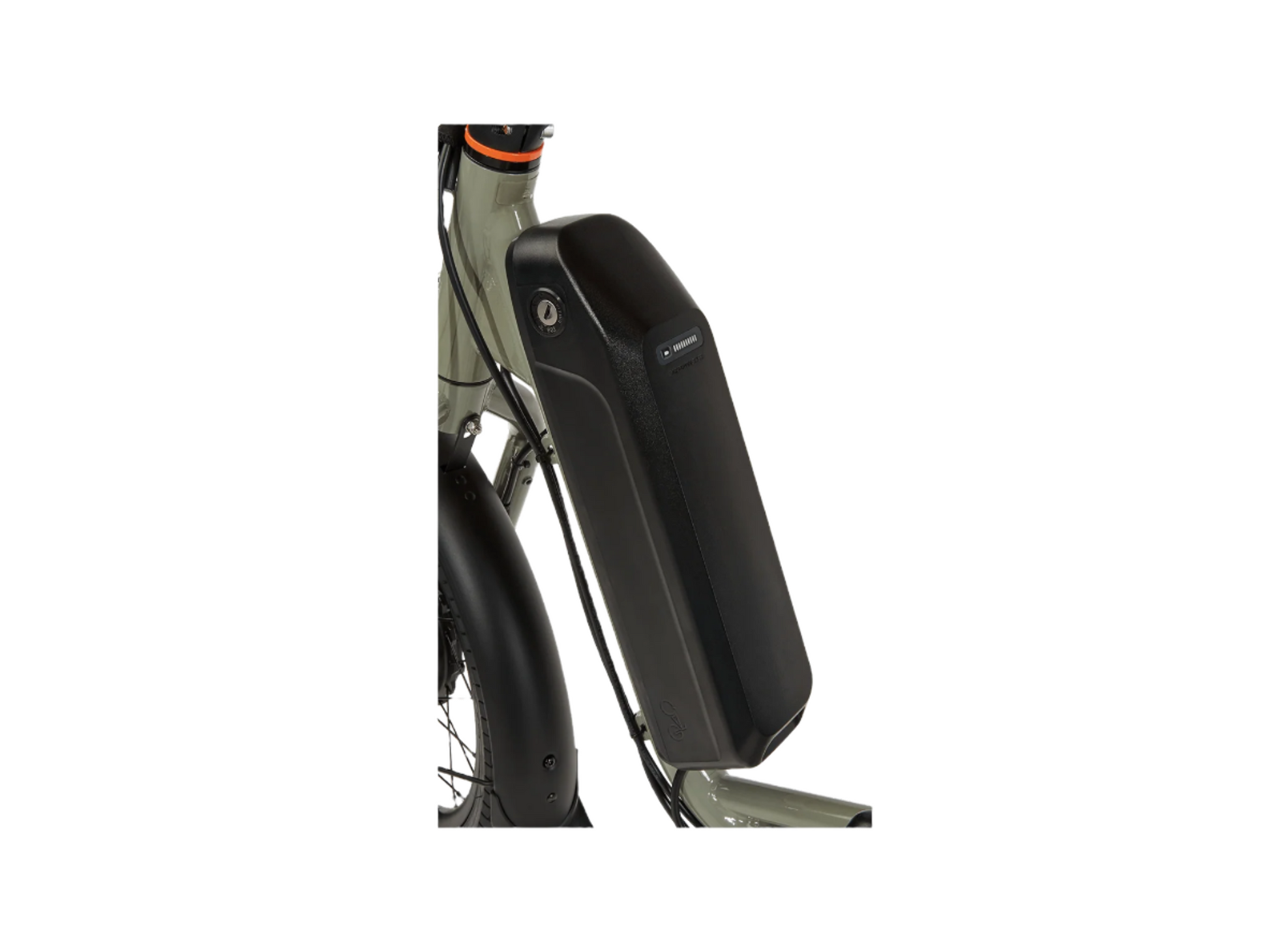

• Battery

  10Ah 480 Wh external battery, tested by ACT compliant to UL 2271

• Charger

  48V, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets

• Display

  Battery charge, pedal assist level, and headlight. See Display section below for details.

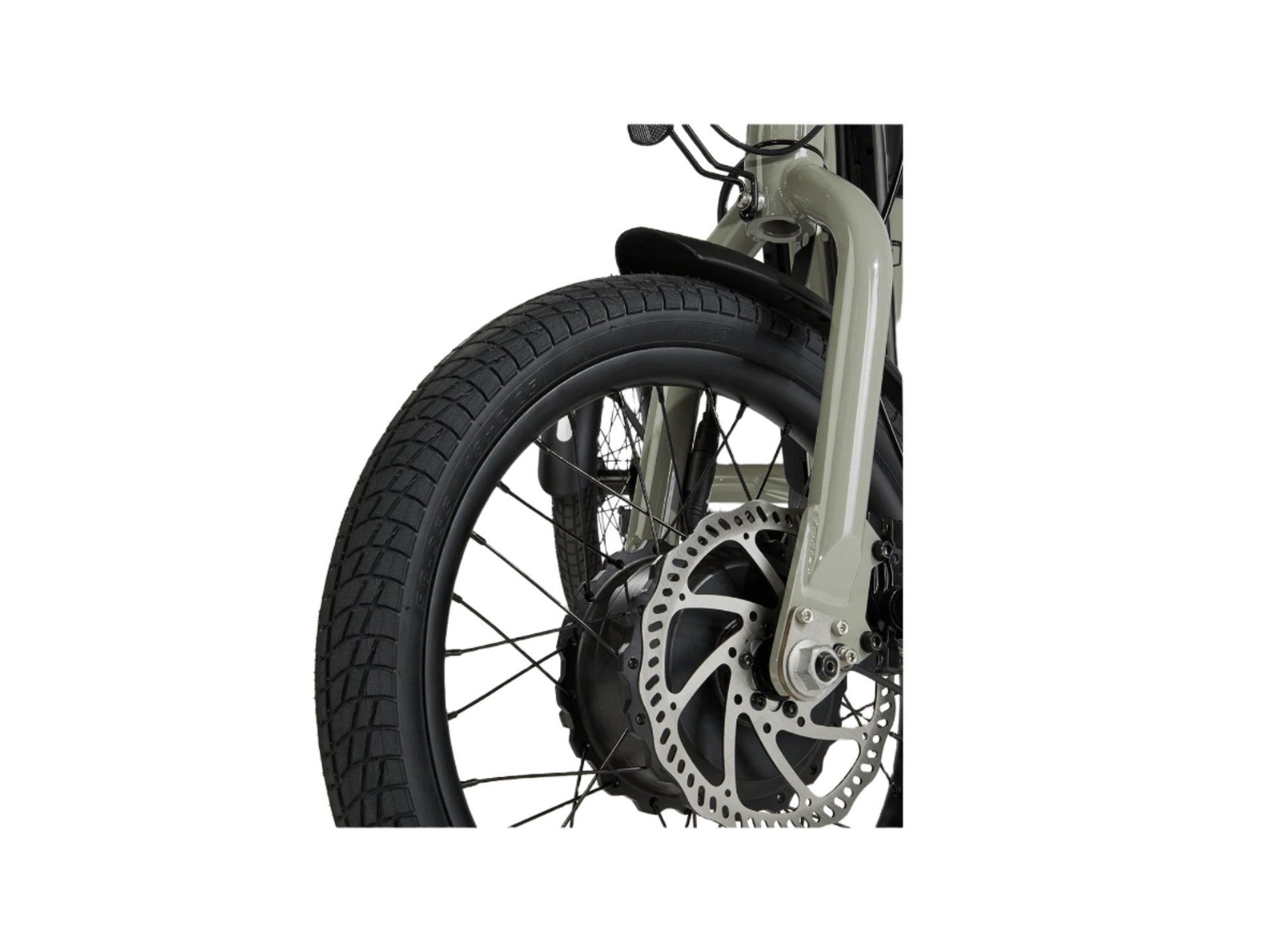

• Hub Motor

  Front hub 750W
  Stated wattage is the manufacturer's rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.

• Lights

  Auto-on feature
  Front: LED headlight
  Rear: Integrated taillight with brake light

• Pedal Assist

  Pedal cadence sensor, 5 PAS levels, plus a zero assist option

• Range

  Up to 55 miles per charge

• Throttle

  Half twist throttle

• Top Speed

  14 mph

• UL Status

  Tested by ACT compliant to UL 2849 and UL 2271

• USB Ports

  Optional, sold separately as USB Charger

Batteries come with a universal key that can be used to lock and unlock the battery to your ebike. Please note that universal keys are not unique to your ebike battery and may work with a variety of locks, including on other Rad ebikes. Universal keys do not offer the highest level of security compared to dedicated or unique key locks. We do not recommend leaving your battery affixed to your ebike in public unattended as it may pose a risk of battery theft.

Components

• Bell

  Yes

• Brakes

  Front mechanical disk brake and a rear coaster (foot-operated) brake

• Brake Lever(s)

  Single aluminum alloy comfort grip lever with motor cutoff switch and orange parking brake

• Brake Pads

  Semi-metallic

• Brake Rotors

  C-star 180 mm on front wheel

• Crank Set

  42T, 152 mm crank length, square-taper, steel chainring, alloy crank

• Derailleur

  N/A

• Fenders

  Full coverage front and rear

• Fork

  Rigid steel fork

• Frame

  Chromoly steel

• Freewheel/Cassette

  16 tooth freewheel on rear axle

• Gearing

  Single speed

• Grips

  Lock-on ergonomic rubber comfort grips

• Handlebar

  Aluminum, 680 mm wide

• Headset

  Semi-integrated, 1-1/8" straight steerer tube

• Kickstand

  N/A

• Pedals

  Composite platform with reflectors, standard 9/16" x 20 TPI threading

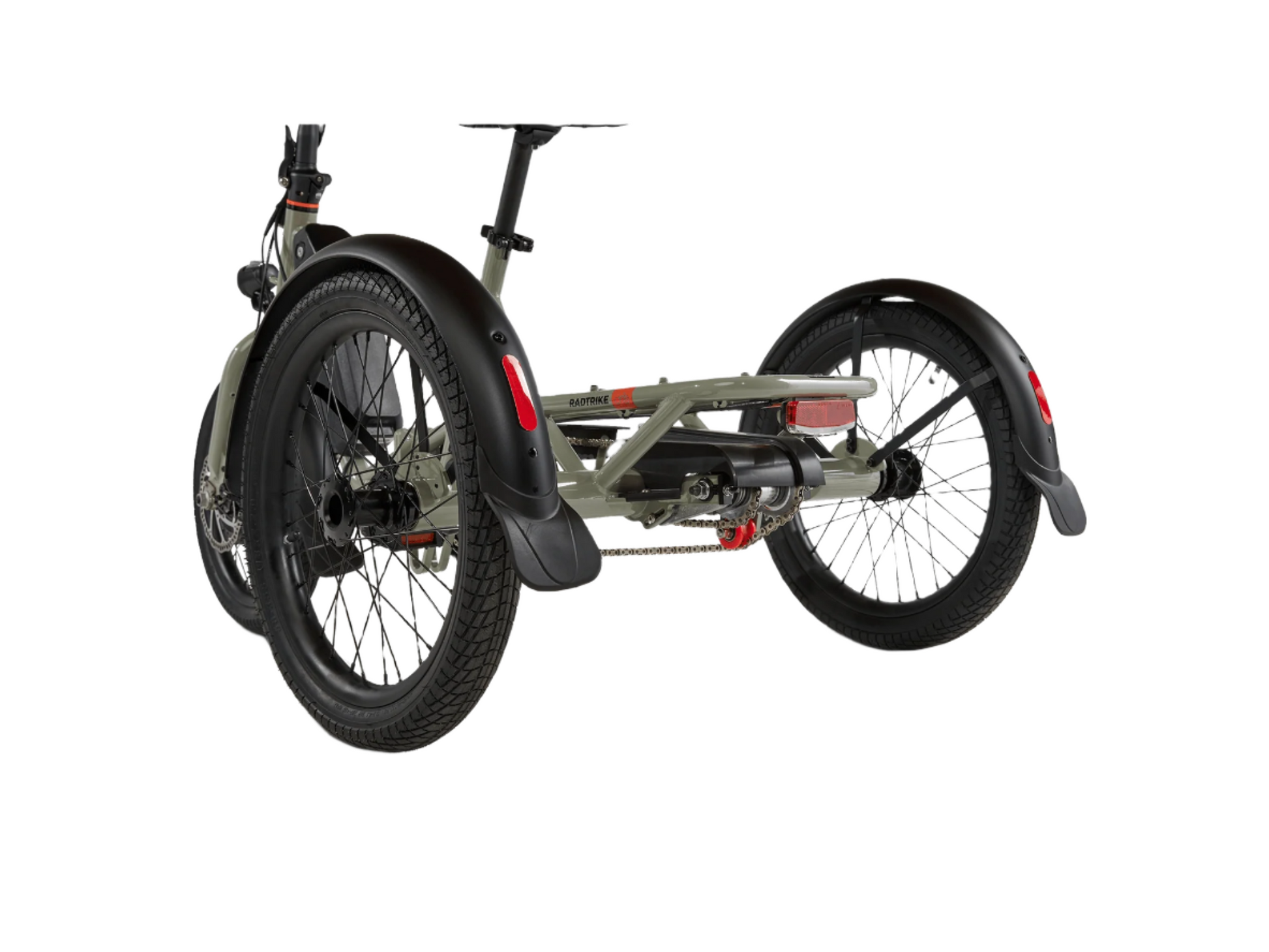

• Rear Rack

  Integrated, 60 lb carrying capacity

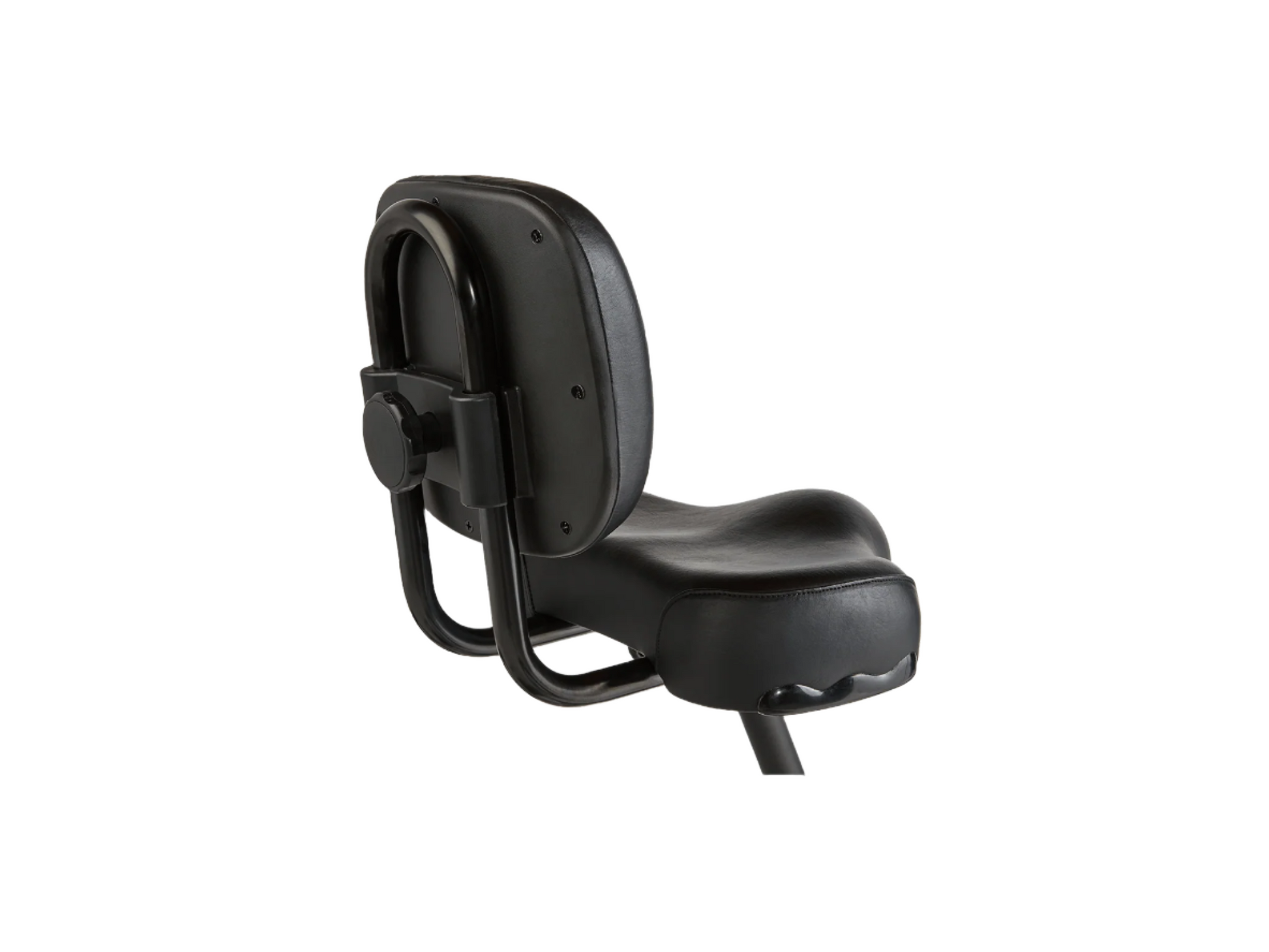

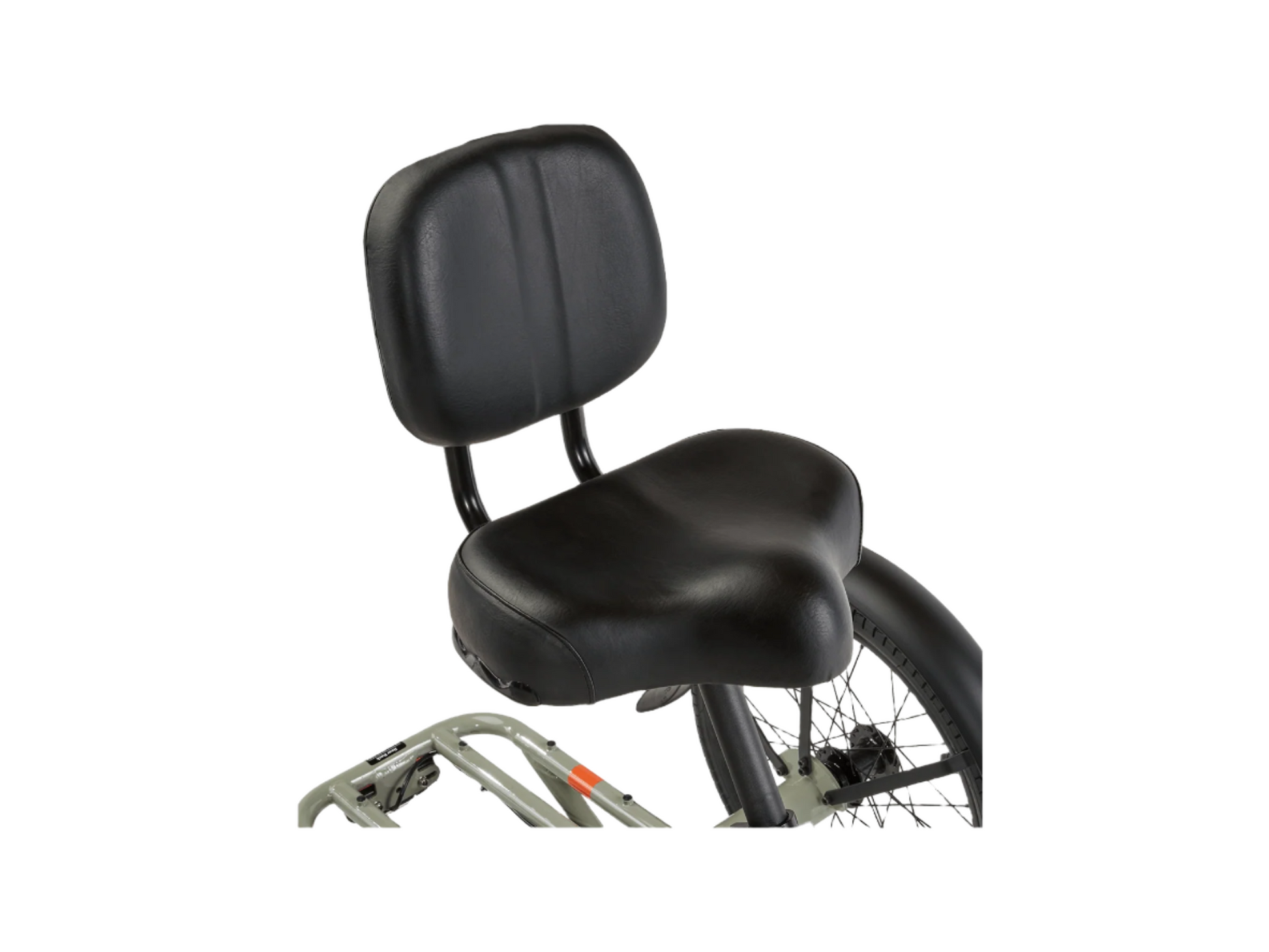

• Saddle

  Cushioned saddle with adjustable height backrest

• Seatpost

  440 mm x 27.2 mm

• Seatpost Clamp

  Quick release

• Shifter

  N/A

• Stem

  50 mm + 30º (35 mm rise)

• Tires

  Kenda Kontact 18" x 2.25", K-Shield puncture-resistant liner

To ensure uninterrupted shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.

Display

• Power Button

  Easy on. Easy off.

• Battery Life

  A fuel gauge for your electrons.

• Pedal Assist Level

  The higher the number, the more the motor will boost you when you pedal.

• Headlight Indicator & Control

  Headlight turns on automatically with your ebike. Don't need it? Just switch it off.

• Reverse

  Need to backtrack? Hold down the PAS button to safely throttle in reverse.

Geometry



• Rider Heights

  4'10" - 6'4" (Bike inseam between 25" and 35")

• Bike Weight

  82 lb, 73.6 lb with battery removed, battery: 8.4 lb

• Payload

  415 lb: 325 lb max rider weight, 60 lb max on rear rack

• Rear Rack Payload

  60 lb

• Folded Dimensions

  59.3"L x 33"W x 29"H

• Handlebar Height

  42.5" - 43.5" (108 - 110.5 cm)

• Reach

  18.1" (46 cm)

• Seat Height

  28" - 35.4" (71 - 90 cm)

• Seat Dimensions (LxW)

  9" x 11.5" (22.9 - 29.3 cm)

• Standover Height

  13.4" (34 cm)

• Total Length

  59.3" (151 cm)

• Width (at widest point)

  33" (84 cm)

• Wheelbase

  41.3" (105 cm)

• Seat Tube Length

  14.6" (37 cm)

Assembly

Build Difficulty: Easy

Our riders say that this model is easy to assemble, however if you want help, our ebike assembly service will have you ready-to-ride.
