Rad Power Bikes

RadWagon 5 Electric Cargo Bike

RadWagon 5 Electric Cargo Bike

$2,399.00 USD
$2,399.00 USD
Sale COMING SOON
Shipping calculated at checkout.
$2,399.00 USD
Color

102-00045

Confidence. Comfort. And plenty of cargo.

Leave the minivan behind. Our fan-favorite electric cargo bike just had a glow-up. The RadWagon 5 provides a condensed frame for better handling, a plethora of advanced safety features, and more carrying capacity than ever before. But it’s not just better for kids and cargo — it's been revamped to help riders from 4'11" to 6'3" find their fun.

Wriggly cargo welcome - Fun fact: Parents on our design team helped develop the RadWagon 5. They'll be the first to tell you that kids love the open-air rides. With new family-friendly accessory combos, you can customize for the perfect school drop-off or a fun weekend pick-me-up.

Industry-leading safety - The Safe Shield Battery with thermal-resistant technology sets a bold new standard for ebike safety- and for even greater rider confidence, the RadWagon 5 is equipped with turn signals, hydraulic disc brakes, and a brighter, 200 lumen headlight.

A workhorse (on wheels!) - We've upped the power for faster hill climbing - even when fully-loaded.

Easy, breezy rides - It doesn't get more comfortable than this. There's front suspension for unexpected bumps, a lower center of gravity for added stability, and a responsive torque sensor for a consistently natural ride feel.

Raising the bar

All Rad ebikes are either UL Certified or tested by ACT to comply with UL 2849.
This means our bikes and electric systems have undergone rigorous testing to meet safety standards set by UL, a respected third-party organization.
Although U.S. guidelines don’t currently require ebikes to meet UL Certification, we go the extra mile to ensure our riders feel safe in the saddle.

All eyes on you

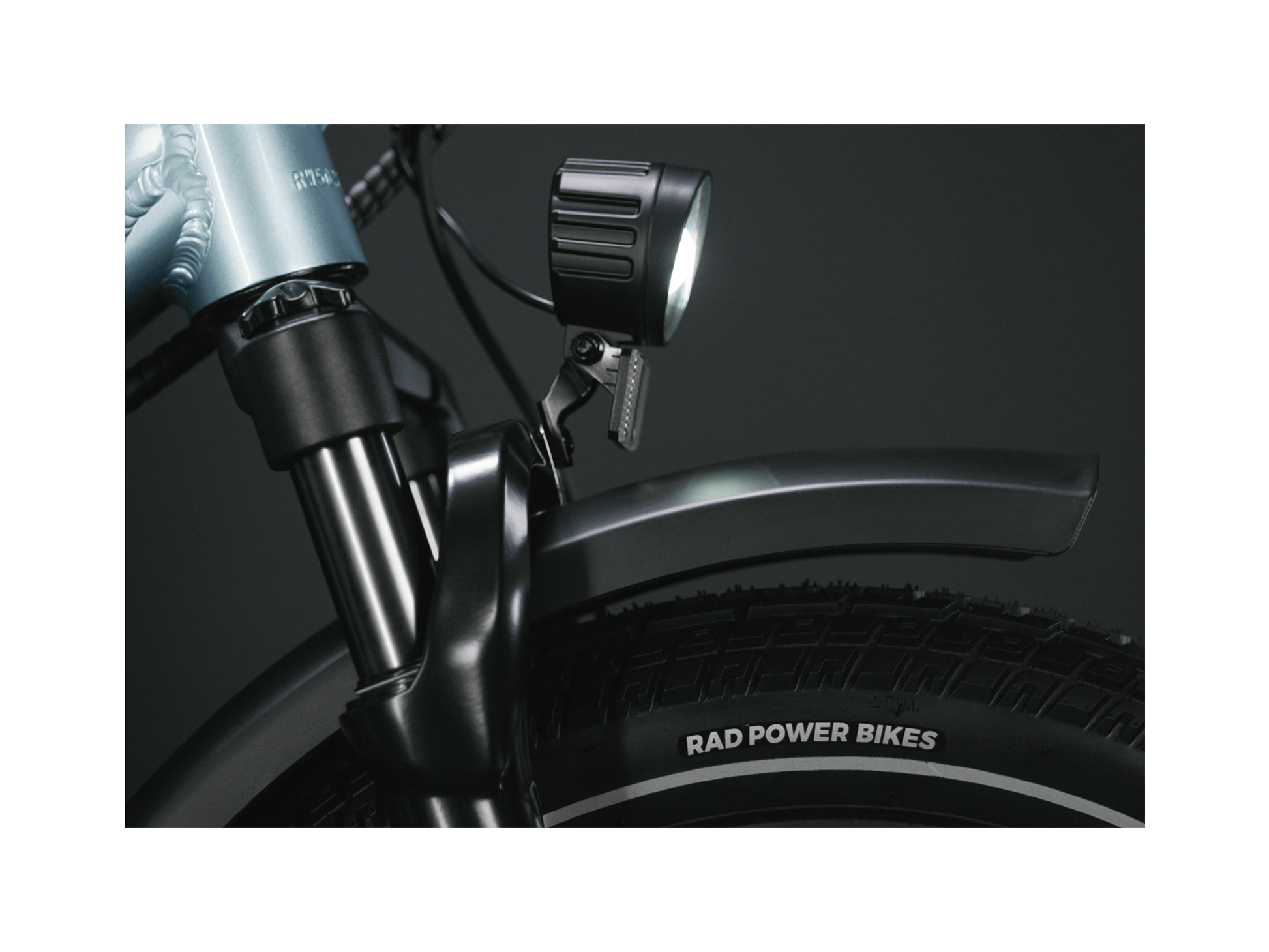

All 2024 models feature a bright 200 lumen headlight for safer night riding and rear-facing turn signals that let cars, pedestrians, and fellow cyclists know your next move.

Ride rain or shine

Our 2024 models are built to handle the rain. With industry-leading IPX6 weather-protection, they can withstand high-pressure, heavy water splashes. And for added safety, they’re equipped with hydraulic disc brakes to ensure all-weather stopping ability.

Reliability on wheels

Keep the ride going. This model features a thru axle to ensure a strong, safe, and secure wheel system.

Electronics

  • Battery

    15Ah 720 Wh Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271

  • Charger

    48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets

  • Class

    Class switchable 1 to 3. Ships in Class 2 status.

  • Display

    Rad custom color display. See Display section below for details.

  • Hub Motor

    Rear hub 750W, 90 Nm
    Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.

  • Lights

    Auto-on feature
    Front: 450 lumens LED headlight with built-in reflector
    Rear: Integrated taillight with brake light and turn signals

  • Pedal Assist

    Torque sensor, 5 PAS Levels, plus a zero assist option

  • Range

    Estimated 20-60 miles per charge

  • Throttle

    Half twist grip throttle

  • UL Status

    UL Certified to UL 2849 and UL 2271

  • USB Ports

    One USB-C port, located on display

Batteries come with a universal key that can be used to lock and unlock the battery to your ebike. Please note that universal keys are not unique to your ebike battery and may work with a variety of locks, including on other Rad ebikes. Universal keys do not offer the highest level of security compared to dedicated or unique key locks. We do not recommend leaving your battery affixed to your ebike in public unattended as it may pose a risk of battery theft.

Components

  • Bell

    Yes

  • Brake System

    Tektro Hydraulic Disc HD-E395

  • Brake Pads

    Tektro Semi-Metallic E11.11

  • Brake Rotors

    180 mm x 2.3mm

  • Crank Set

    50T with dual sided chain ring cover, 170mm crank arms

  • Derailleur

    7-Speed Shimano

  • Fenders

    Full coverage front and rear, plus integrated wheel cover

  • Fork

    RST Guide suspension fork, 45mm travel, tapered steerer tube, thru axle

  • Frame

    Aluminum

  • Freewheel/Cassette

    7-speed freewheel, 11-34T

  • Gearing

    1x7 speed

  • Grips

    Ergonomic rubber comfort grips

  • Handlebar

    Aluminum, 680 mm wide

  • Kickstand

    Dual leg center stand, spring loaded, steel

  • Pedals

    Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading

  • Rear Rack

    Integrated, 120 lb (54.4 kg) carrying capacity

  • Saddle

    Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides

  • Seatpost

    390 mm x 27.2 mm

  • Seatpost Clamp

    40 mm

  • Shifter

    Shimano, 7-speed thumb shifter

  • Stem

    35mm A-head

  • Tires

    Kenda 20" x 3.3"

Geometry

Rad Power Bikes

  • Rider Heights

    4'11"-6'3" (150-190 cm)

  • Bike Weight

    86 lb (39 kg), 75.6 lb (34.3 kg) with battery removed

  • Payload

    375 lb, 265 lb max rider weight

  • Rear Rack Payload

    120 lb (54.4 kg)

  • Handlebar Height

    44" (111.8 cm)

  • Reach

    14.2" (36 cm)

  • Seat Height

    From ground: 30.5" - 41.8" (77.5 - 106.1 cm)
    From pedal bottom stroke: 25" - 37" (64 - 94 cm)

  • Stepover Height

    19.8" (50.3 cm)

  • Standover Height

    21" (53.3 cm)

  • Total Length

    76" (193 cm)

  • Wheelbase

    50.7" (128.8 cm)

  • Seat Tube Length

    13.5" (34.2 cm)



Assembly

Build Difficulty: Easy

Our riders say that this model is easy to assemble, however if you want help, our ebike assembly service will have you ready-to-ride.

Display

  • Class level

    Choose speed settings for your ride:
    Class 1: up to 20 mph, throttle only works while pedaling.
    Class 2: up to 20 mph while pedaling or throttling.
    Class 3, Limited: up to 25 mph while pedaling.
    Class 3: up to 28 mph while pedaling.

    Remember: adhere to posted speed limits and check local regulations for any speed or ebike class restrictions on the road or trail you're using.

  • Speedometer

    Fast and Curious? The speedometer will tell you your current speed.

  • Odometer

    Track the distance you’ve racked up, either by trip or through the bike’s entire lifespan.

  • Estimated remaining range

    Is it time to recharge? To help you keep track, this displays your remaining battery life in either percentage or remaining miles.

  • Trip time

    Did your trip feel like it was just half an hour, or did time fly by? This display will show you the time you spend on each outing. Be sure to reset your trip odometer before a ride you want to track.

  • Pedal assist level

    The higher the number, the more the motor will boost you when you pedal. This shows what level you’re on, from 0 to 5.

  • Motor watts

    Check out how much power the motor is supplying at any given time.

  • Headlight, taillight, and rear turn signals

    It’s always a bright idea to make sure your lights are on and operating.

    Note: Rear turn signals can be manually turned off or will turn off automatically two minutes into use.

  • USB charge indicator

    Charging your device? This will confirm if your phone (or tablet, or smartwatch, or headphones, or …) is getting the juice it needs.

Warranty
