TORP - TC500 controller kit for SurRon Light Bee

Description

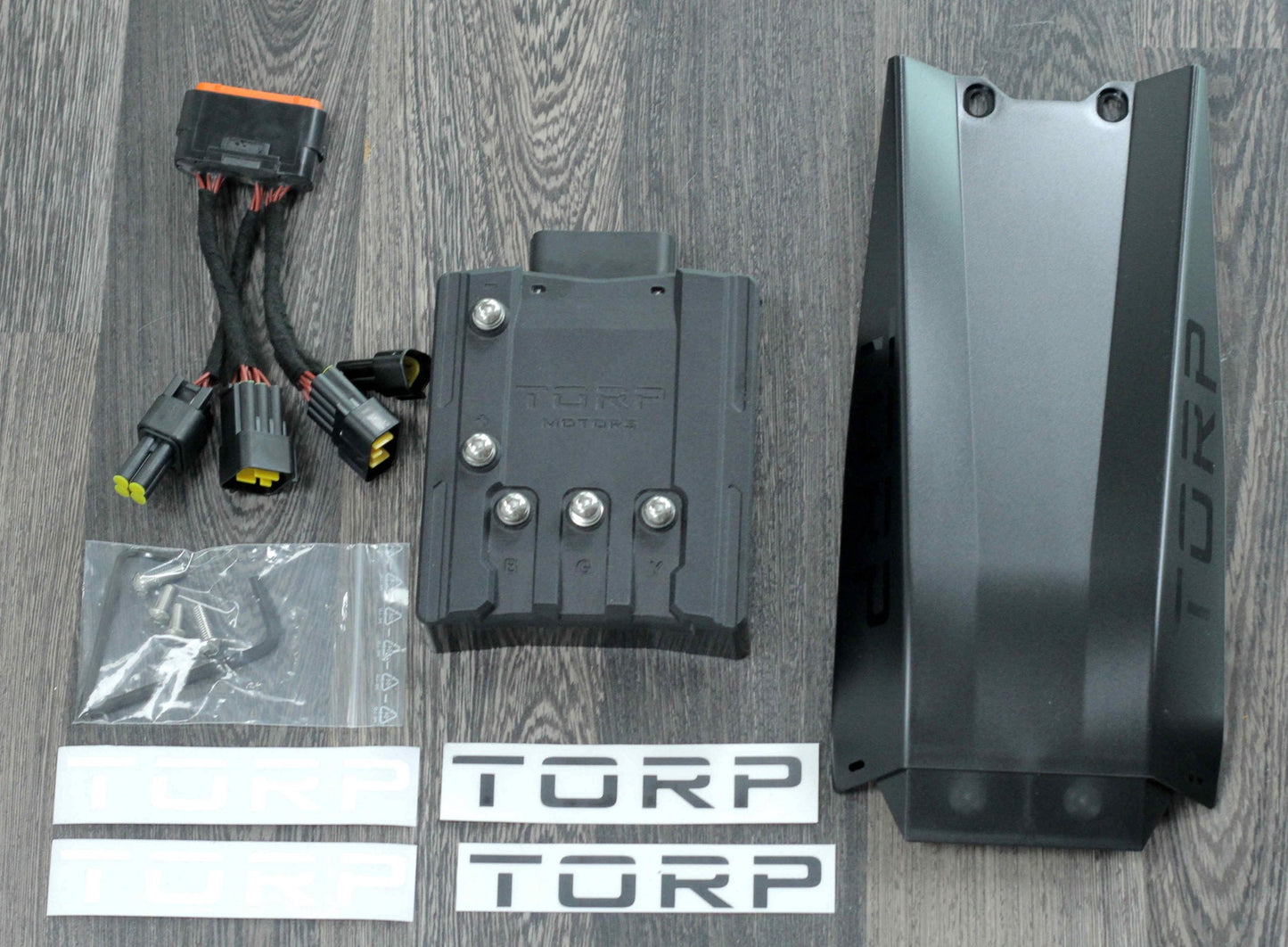

INCLUDED IN THE PACKAGE:

-1x TC500 Controller
-1x wire harness
-1x plastic shield
-screws and tools needed for installation
-4x stickers
-short instructions

SPECIFICATIONS:

-Field-oriented control (FOC)
-Voltage 20-90V
-Max Power: 25kW*
-Sensored (HALL Encoder) and sensorless control
-Max Battery Current: 400 A*

*In combination with the stock SurRon e-motor, the max power is 17 kW.

-Max phase current: 500 A
-Efficiency up to 99%
-Working temperature: from -15 to 75 C°
-Bluetooth communication
-Pre-calibrated: No additional steps required
-Overcurrent, overvoltage, undervoltage and overtemperature protection
-Communication with stock BMS
-Different regenerative braking and throttle modes
-Weight: 1kg
-Features: Mobile App (IOS & Android), stock SurRon display
-Protection class: IP67
-Regular firmware updates

*While Torp controllers are rated IP67, making them highly water-resistant, the wiring harnesses for both the controller and bike are not waterproof. In case your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors.
